G200 HQAF (G200) - Honda Engine, Made in Japan (SN: G200-1000001 - G200-2344556) CYLINDER BARREL + CYLINDER HEAD Parts Diagram

Engine, Made in Japan

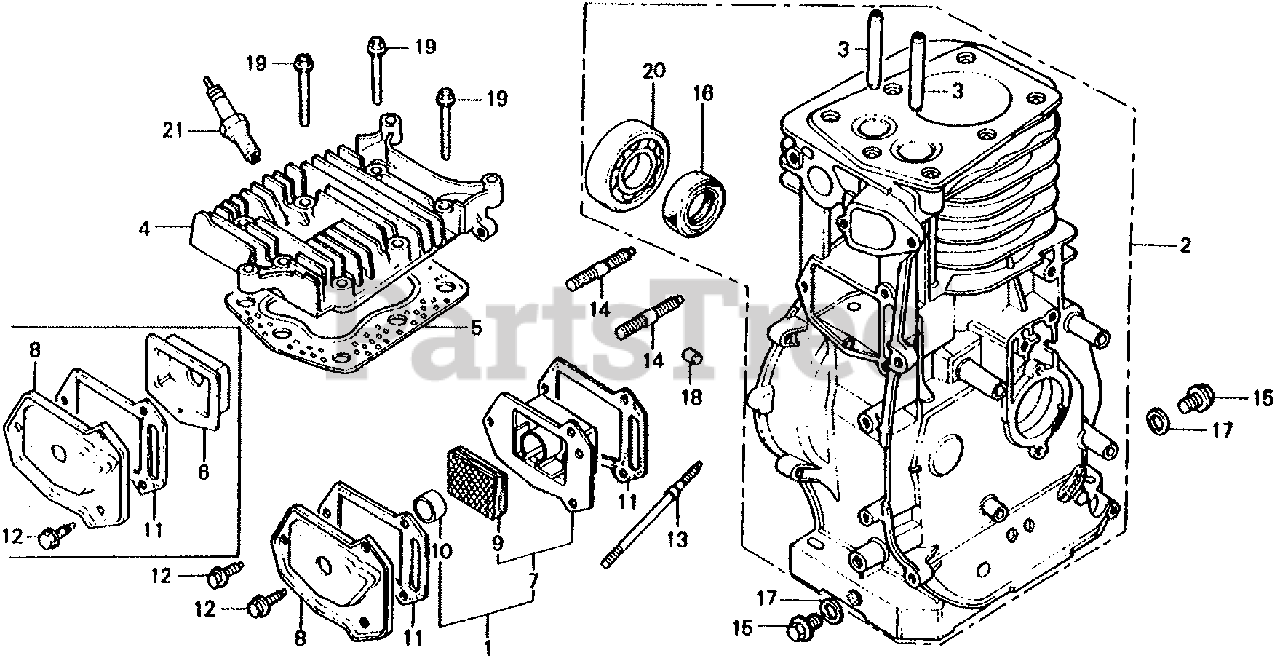

CYLINDER BARREL + CYLINDER HEAD Parts Diagram

  • Title

1

Honda 06123-883-305

CASE KIT, BREATHER (Honda Code 1067032).

Note: (Optional). Use up to Engine SN 1556857.

$11.99

$

Usually ships in 3-6 days

0

2

Honda 12000-883-345

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 1010164).

Note: Use up to Engine SN 1269468.

$

$

Currently unavailable

2

Honda 12000-883-345

SEE PART DETAILS - PRI; CYLINDER ASSY. (Honda Code 1010164).

Note: Use from Engine SN 1269469.

$

$

Currently unavailable

3

Honda 12133-883-306

GUIDE, VALVE (OS) (Honda Code 4230561).

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

3

Honda 12134-883-305

GUIDE, VALVE (OS) (Honda Code 0635508).
(Superseded to 12133-883-306)

Note: (Optional).

$17.99

$

Usually ships in 3-6 days

0

4

Honda 122A2-883-030

SEE PART DETAILS - PRI; CYLINDER HEAD (Honda Code 3345717).

$

$

Not available

4

Honda 12221-883-325

SEE PART DETAILS - SUP; CYLINDER HEAD (Honda Code 1010172).

$

$

Currently unavailable

5

Honda 12281-883-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4328340).
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

5

Honda 12281-883-800

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4428496).
(Superseded to 12281-883-801)

$30.99

$

Usually ships in 3-6 days

0

5

Honda 12281-883-801

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 4917209).

$30.99

$

Usually ships in 3-6 days

0

6

Honda 12360-883-000

SEE PART DETAILS - SUP; CASE, BREATHER (Honda Code 0635532).

Note: Use up to Engine SN 1556857.

$

$

Currently unavailable

6

Honda 12360-883-010

SEE PART DETAILS - PRI; CASE, BREATHER (Honda Code 1037902).

Note: Use up to Engine SN 1556857.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 12360-883-010

SEE PART DETAILS - PRI; CASE, BREATHER (Honda Code 1037902).

Note: Use from Engine SN 1556858.

$13.99

$

Usually ships in 3-6 days

0

8

Honda 12361-883-000

COVER, TAPPET ROOM (Honda Code 0635540).

$15.99

$

Usually ships in 3-6 days

0

9

Honda 12367-883-003

SEE PART DETAILS - PRI; FILTER, BREATHER (Honda Code 1083484).

Note: Use from Engine SN 1556858.

$3.99

$

Usually ships in 3-6 days

0

10

Honda 12369-883-000

SEAL, BREATHER (Honda Code 1037910).

Note: Use from Engine SN 1556858.

$4.49

$

Usually ships in 3-6 days

0

11

Honda 12375-883-000

GASKET, TAPPET COVER (Honda Code 0635557).

Note: Use up to Engine SN 1556857.

$4.49

$

In Stock, only 2 left!

0

11

Honda 12375-883-000

GASKET, TAPPET COVER (Honda Code 0635557).

Note: Use from Engine SN 1556858.

$4.49

$

In Stock, only 2 left!

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90043-883-010

SEE PART DETAILS - PRI; BOLT, STUD (6X96) (Honda Code 0649681).

$6.99

$

Usually ships in 3-6 days

0

13

Honda 90043-883-681

BOLT, STUD (6X89) (Honda Code 2147429).

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

14

Honda 90047-883-000

BOLT, STUD (8X35) (Honda Code 0636894).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (Honda Code 0636902).

$

$

Not available

15

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 12

0

16

Honda 91201-Z0T-801

SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).

$8.99

$

In Stock, Qty 8

0

16

Honda 91202-883-005

SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)

$8.99

$

In Stock, Qty 8

0

17

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

18

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

19

Honda 95700-08045-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 0583633).
(Superseded to 95701-08045-08)

$2.99

$

In Stock, Qty 14

0

19

Honda 95701-08045-08

BOLT, FLANGE (8X45) (Honda Code 2602258).

$2.99

$

In Stock, Qty 14

0

20

Honda 96100-62050-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).

$24.99

$

In Stock, only 3 left!

0

21

Honda 98076-54710

SPARK PLUG (B-4H) (Honda Code 0316927).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-54720

SPARK PLUG (W14F-U) (DENSO) (Honda Code 1325307).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-54757

SEE PART DETAILS - PRI; SPARK PLUG (W14FR-U) (DENSO) (Honda Code 1106988).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-54911

SPARK PLUG (BP-4HS-10) (NGK) (Honda Code 0761338).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK) (Honda Code 0761346).
(Superseded to 98076-54917)

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

21

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK) (Honda Code 4161691).

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

21

Honda 98076-54919

SPARK PLUG (BP4HS-10) (NGK) (Honda Code 4161659).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-54921

SPARK PLUG (W14FP-UL10) (DENSO) (Honda Code 1325315).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-54954

SEE PART DETAILS - PRI; SPARK PLUG (W14FPR-UL10) (DENSO) (Honda Code 1107002).

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0

21

Honda 98076-56710

SEE PART DETAILS - SUP; SPARK PLUG (B6HS) (NGK) (Honda Code 0361915).

Note: (Optional).

$

$

Not available

21

Honda 98076-56716

SEE PART DETAILS - PRI; SPARK PLUG (BR6HS) (NGK) (Honda Code 0629907).

Note: (Optional).

$3.49

$

In Stock, only 4 left!

0

21

Honda 98076-56724

SPARK PLUG (W20FS-U) (DENSO) (Honda Code 1325323).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-56740

SEE PART DETAILS - PRI; SPARK PLUG (B6HS) (NGK) (Honda Code 0059329).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

21

Honda 98076-56927

SPARK PLUG (W20FPR-U10) (DENSO) (Honda Code 1233196).

Note: (Optional).

$3.99

$

Usually ships in 3-6 days

0
