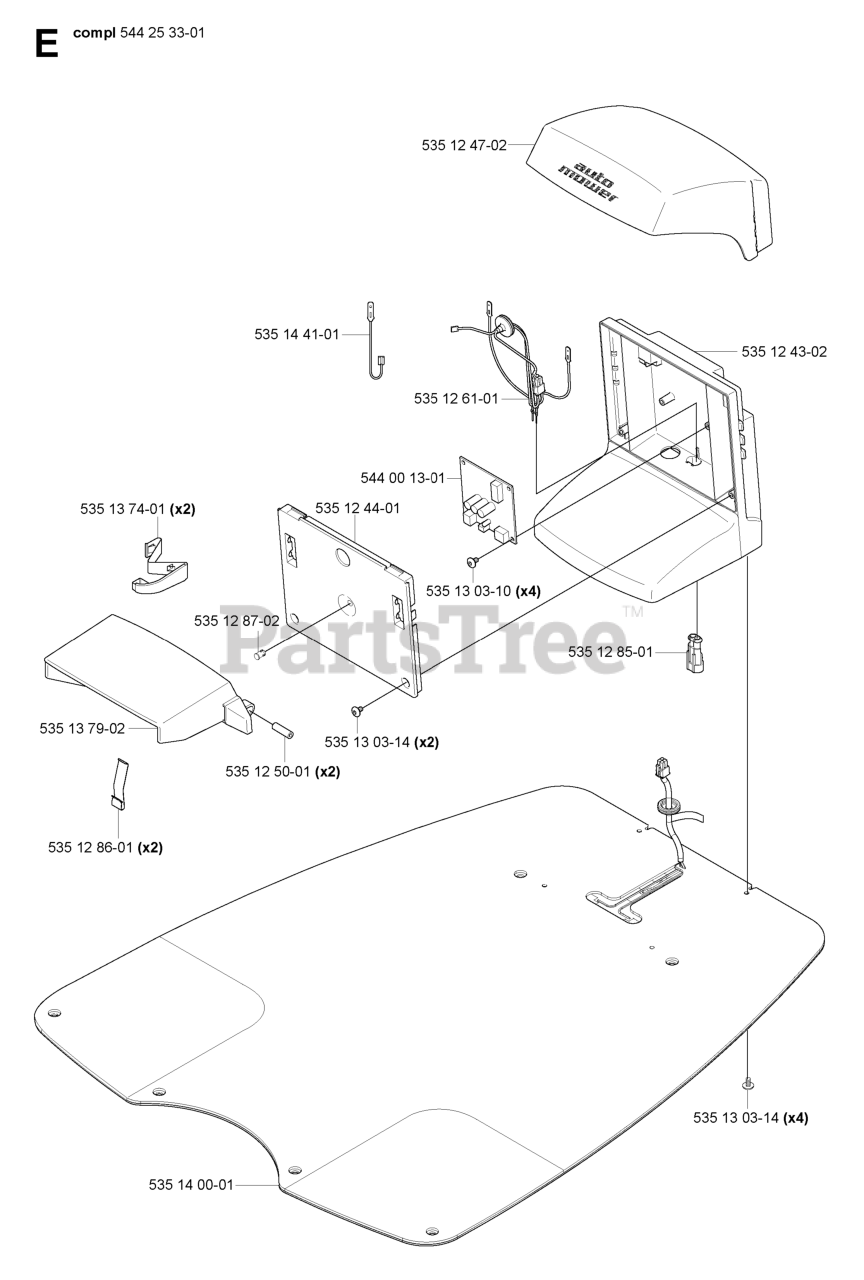

G2 - Husqvarna Automower Robotic Lawn Mower (2003-2006) CHARGING STATION Parts Diagram

Automower Robotic Lawn Mower

CHARGING STATION Parts Diagram

  • Title
544 25 33-01

Husqvarna 544253301

CHARGING STATION
(Superseded to 574902001)

$

$

Not available

535 12 61-01

Husqvarna 535126101

CABLE ASSY

$

$

Not available

535 12 50-01

$

$

Not available

535 12 87-02

Husqvarna 535128702

LENS
(Superseded to 590217201)

$5.99

$

Usually ships in 3-10 days

0

535 12 43-02

$

$

Not available

535 12 47-02

Husqvarna 535124702

CS / TOWER COVER

$

$

Not available

535 13 03-14

$3.49

$

Usually ships in 3-10 days

0

535 12 85-01

$

$

Not available

535 12 86-01

$

$

Not available

535 13 03-10

$3.49

$

In Stock, only 4 left!

0

535 12 44-01

$

$

Not available

544 00 13-01

Husqvarna 544001301

PRINTED CIRCUIT CARD
(Superseded to 578788502)

$227.99

$

Usually ships in 3-10 days

0

535 14 41-01

Husqvarna 535144101

CABLE ASSY

$

$

Not available

535 14 00-01

Husqvarna 535140001

PLATE
(Superseded to 575708202)

$319.99

$

Usually ships in 3-10 days

0

535 13 79-02

Husqvarna 535137902

HOLDER
(Superseded to 510059702)

$56.99

$

Usually ships in 3-10 days

0

535 13 03-14

$3.49

$

Usually ships in 3-10 days

0

535 13 74-01

Husqvarna 535137401

THIN PLATE
(Superseded to 510059702)

$56.99

$

Usually ships in 3-10 days

0
