G2 - Husqvarna Automower Robotic Lawn Mower (2003-2006) BLADE MOTOR & CUTTING EQUIPMENT 4 Parts Diagram

Automower Robotic Lawn Mower

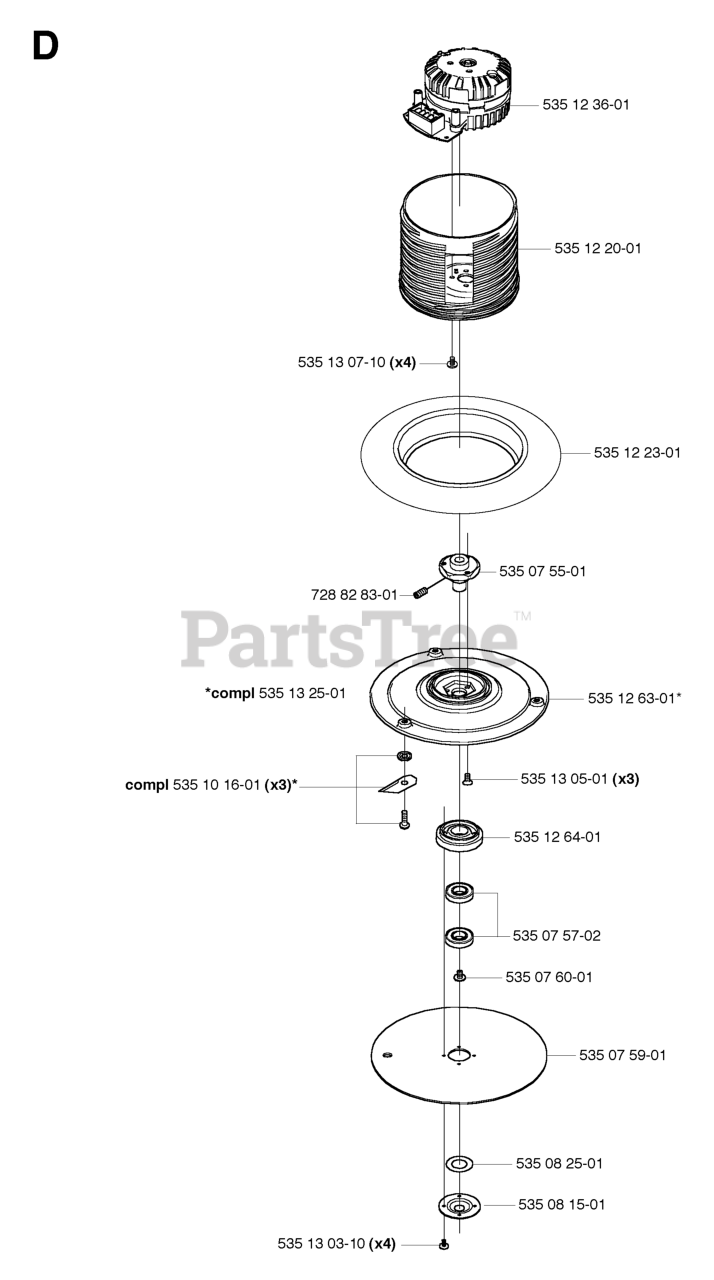

BLADE MOTOR & CUTTING EQUIPMENT 4 Parts Diagram

  • Title

535 07 59-01

Husqvarna 535075901

PLATE SKID

$20.99

$

Usually ships in 3-10 days

0

535 12 64-01

Husqvarna 535126401

BEARING

$9.49

$

In Stock, only 1 left!

0

535 08 15-01

Husqvarna 535081501

COVER SKID PLATE

$

$

Not available

535 13 03-10

Husqvarna 535130310

SCREW

$3.49

$

In Stock, only 4 left!

0

535 07 57-02

Husqvarna 593080801

BALL BEARING BALL BEARING 535

Note: Tube 50 pcs

$319.99

$

Usually ships in 3-10 days

0

535 13 05-01

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 2 left!

0

535 08 25-01

Husqvarna 535082501

GASKET

$3.49

$

In Stock, only 2 left!

0

728 82 83-01

Husqvarna 728828301

Setscrew Hub

$

$

Not available

535 12 63-01

Husqvarna 535126301

BLADE DISC

$20.99

$

In Stock, only 2 left!

0

535 12 20-01

Husqvarna 535122001

HOLDER

$

$

Not available

535 12 36-01

Husqvarna 535123601

MOTOR

$125.99

$

Usually ships in 3-10 days

0

535 12 23-01

Husqvarna 535122301

BELLOWS

$

$

Not available

535 13 25-01

Husqvarna 535132501

BLADE DISC

$

$

Not available

535 07 55-01

Husqvarna 535075501

HUB CUTTING DISC

$10.99

$

Usually ships in 3-10 days

0

535 07 60-01

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

535 07 57-02

Husqvarna 535075702

SPACER

$13.99

$

In Stock, only 1 left!

0

535 10 16-01

Husqvarna 535101601

BLADE SINGLE - DON'T SELL
(Superseded to 535098701)

$

$

Not available

535 13 07-10

Husqvarna 535130710

SCREW

$

$

Not available
