G150 UA5 (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) MUFFLER Parts Diagram

Engine, Made in Japan

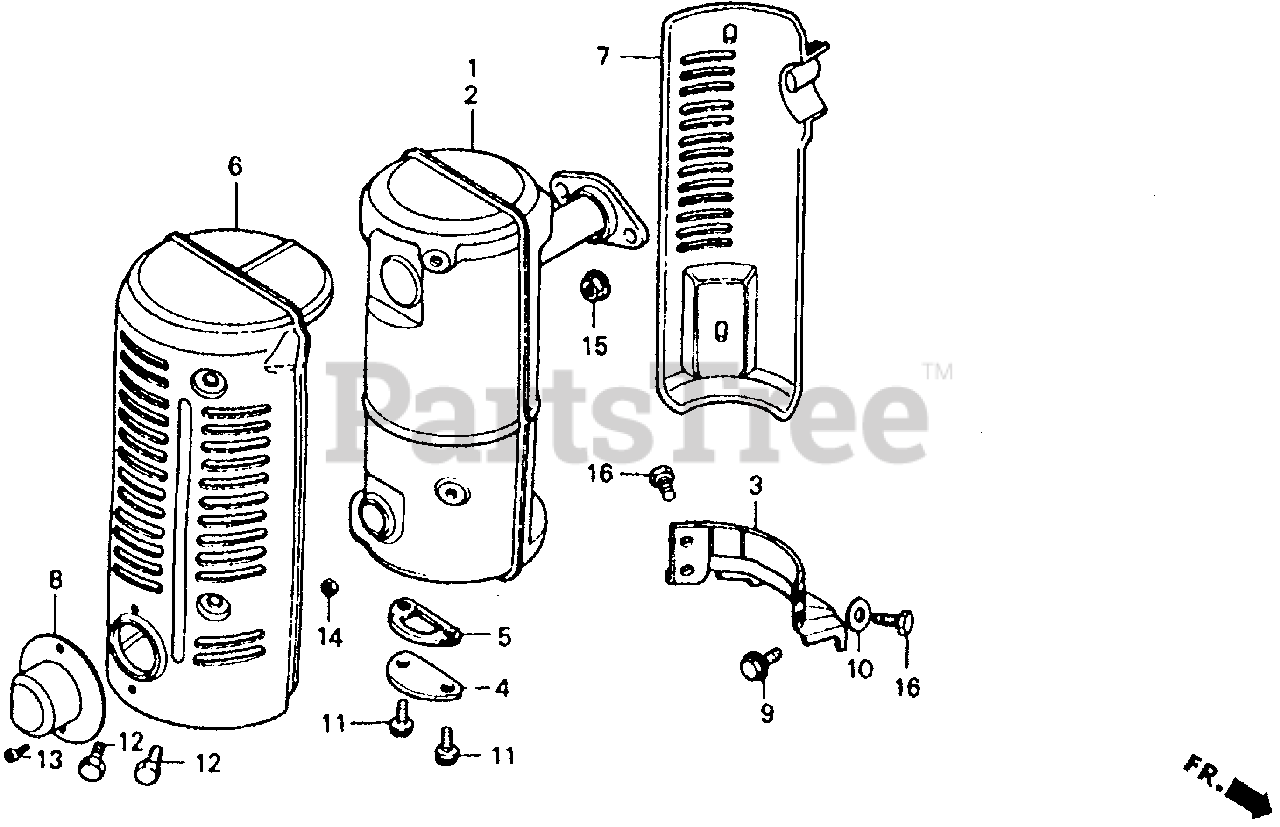

MUFFLER Parts Diagram

  • Title

1

Honda 18300-883-671

MUFFLER ASSY. (Honda Code 0674432).

Note: (Optional).

$

$

Not available

2

Honda 18300-887-760

MUFFLER (Honda Code 1007491).

Note: (Optional).

$

$

Not available

3

Honda 18315-883-672

SEE PART DETAILS - PRI; STAY, MUFFLER (Honda Code 0761619).

Note: (Optional).

$

$

Not available

4

Honda 18316-883-670

LID, MUFFLER (Honda Code 0674556).

Note: (Optional).

$

$

Currently unavailable

5

Honda 18317-883-306

SEE PART DETAILS - PRI; GASKET, MUFFLER LID (Honda Code 6561567).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

6

Honda 18320-883-670

PROTECTOR A, MUFFLER (Honda Code 0674457).

Note: (Optional).

$

$

Not available

7

Honda 18325-883-671

PROTECTOR B, MUFFLER (Honda Code 0674465).

Note: (Optional).

$

$

Not available

8

Honda 18331-883-670

SEE PART DETAILS - PRI; DEFLECTOR, EX. MUFFLER (Honda Code 1007517).

Note: (Optional). Use from Engine SN 1246007.

$

$

Currently unavailable

9

Honda 90031-883-000

BOLT, FLANGE (8X16) (Honda Code 0674473).

Note: (Optional).

$5.99

$

In Stock, only 1 left!

0

10

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

Note: (Optional).

$9.49

$

In Stock, only 1 left!

0

11

Honda 92101-06012-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X12) (Honda Code 2959526).

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0

12

Honda 93000-06006-0B

SEE PART DETAILS - SUP; BOLT, HEX. (6X6) (Honda Code 0397943).

Note: (Optional).

$

$

Currently unavailable

12

Honda 93101-06006-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X6) (Honda Code 4287371).

Note: (Optional).

$

$

Not available

13

Honda 93500-04006-0B

SCREW, PAN (4X6) (NOT AVAILABLE) (Honda Code 0699009).

Note: (Optional). Use from Engine SN 1246007.

$

$

Currently unavailable

14

Honda 94001-04080-0S

SEE PART DETAILS - PRI; NUT, HEX. (4MM) (Honda Code 0562116).

Note: (Optional). Use from Engine SN 1246007.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

Note: (Optional).

$1.49

$

In Stock, Qty 15

0

16

Honda 95700-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 0344952).

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2204709).

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0
