G150 UA5 (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) CRANKCASE COVER (1) Parts Diagram
Engine, Made in Japan

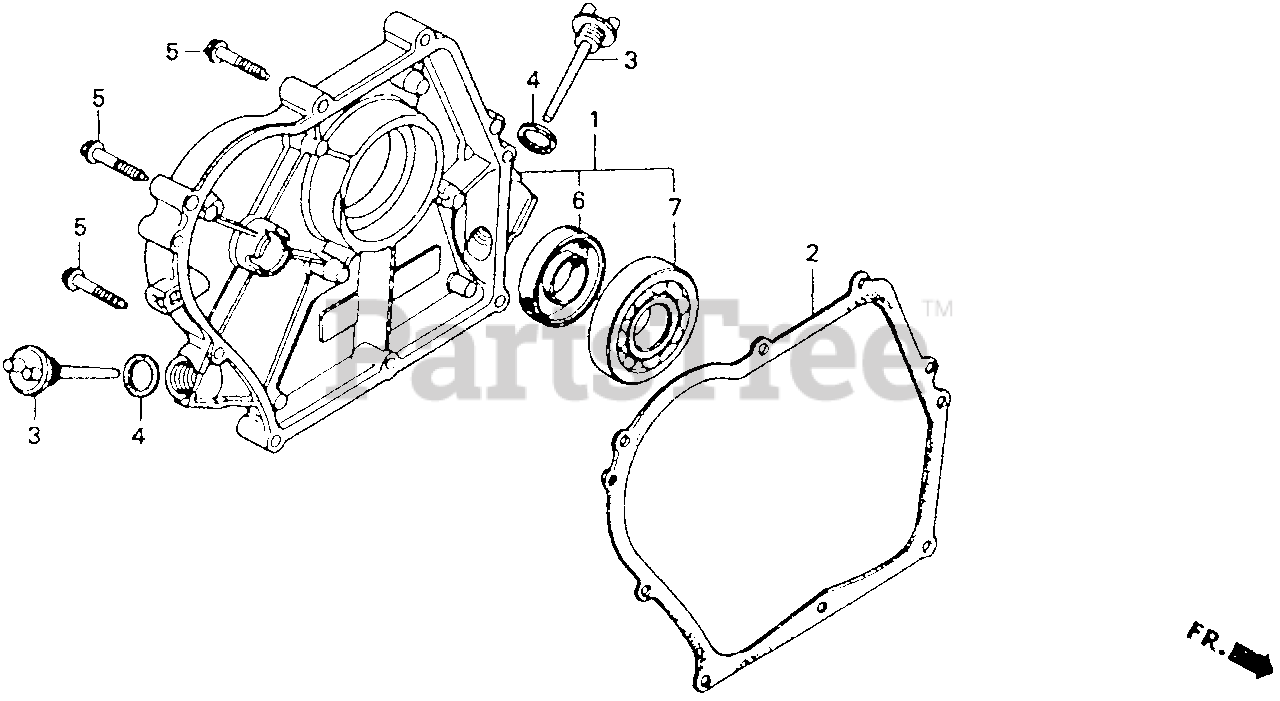

CRANKCASE COVER (1) Parts Diagram
Honda 11300-883-662
SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE (Q-TYPE) (Honda Code 0725069).
Note: Use up to Engine SN 1049377.
$
$
Not available
Honda 11300-883-710
COVER ASSY., CRANKCASE (U-TYPE) (Honda Code 0751354).
Note: Use from Engine SN 1049378.
$
$
Not available
Honda 11381-883-800
SEE PART DETAILS - PRI; GASKET, COVER (Honda Code 4514899).
$12.99
$
Usually ships in 3-6 days
Honda 15620-883-010
CAP, OIL (Honda Code 0636233).
$
$
Not available
Honda 15621-896-010
SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 1033042).
Note: Use from Engine SN 1391010.
$5.49
$
In Stock, Qty 5
Honda 90017-883-000
SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).
$3.49
$
In Stock, only 1 left!
Honda 91201-Z0T-801
SEE PART DETAILS - PRI; OIL SEAL (25X41X6) (Honda Code 7352453).
$8.99
$
In Stock, Qty 8
Honda 91202-883-005
SEE PART DETAILS - SUP; OIL SEAL (25X41X6) (Honda Code 0636936).
(Superseded to 91201-Z0T-801)
$8.99
$
In Stock, Qty 8
Honda 96100-62050-00
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6205) (Honda Code 0636977).
$24.99
$
In Stock, only 3 left!
