G150 QZDU (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) CARBURETOR (3) Parts Diagram

Engine, Made in Japan

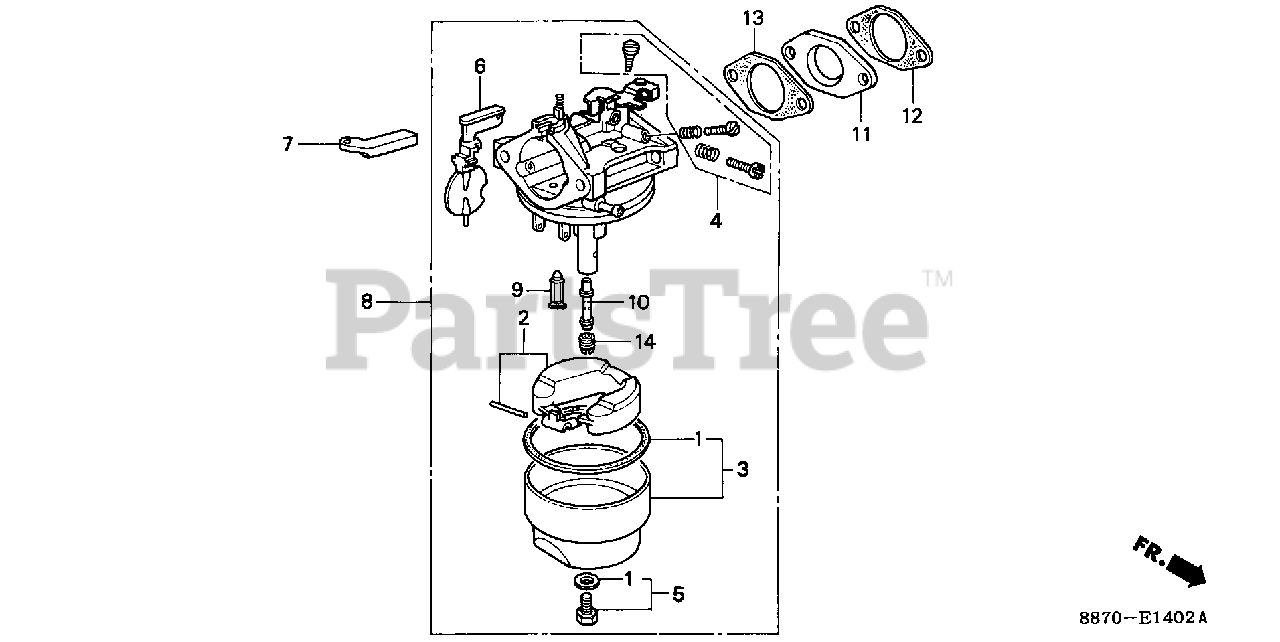

CARBURETOR (3) Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET (CARBURETOR NO.)

Note: Use up to Engine SN BB28B C.

$13.99

$

In Stock, Qty 11

0

1

Honda 16010-883-015

GASKET SET (CARBURETOR NO.)

Note: Use from Engine SN BB28B D.

$13.99

$

In Stock, Qty 11

0

2

Honda 16013-883-005

FLOAT SET (CARBURETOR NO.)

$39.99

$

Usually ships in 3-6 days

0

3

Honda 16015-891-003

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BB28B D.

$

$

Currently unavailable

3

Honda 16015-896-701

CHAMBER SET, FLOAT (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use up to Engine SN BB28B C.

$

$

Currently unavailable

4

Honda 16016-ZA1-701

SCREW SET A (CARBURETOR NO.)

Note: Use from Engine SN BB28B C.

$12.99

$

Usually ships in 3-6 days

0

4

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A (CARBURETOR NO.)

Note: Use up to Engine SN BB28B B.

$

$

Currently unavailable

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET (CARBURETOR NO.)
(Superseded to 16028-ZK7-S91)

Note: Use from Engine SN BB28B B.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use from Engine SN BB28B B.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use up to Engine SN BB28B A.

$13.99

$

In Stock, only 1 left!

0

6

Honda 16044-883-015

CHOKE SET (CARBURETOR NO.)

$42.99

$

Usually ships in 3-6 days

0

7

Honda 16046-883-005

ARM, CHOKE LEVER

$

$

Not available

8

Honda 16100-887-105

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB28B C)

$96.99

$

In Stock, only 1 left!

0

9

Honda 16155-883-005

VALVE, FLOAT (CARBURETOR NO.)

$27.99

$

Usually ships in 3-6 days

0

10

Honda 16166-883-005

NOZZLE, MAIN (CARBURETOR NO.)

$13.99

$

Usually ships in 3-6 days

0

11

Honda 16211-887-000

INSULATOR, CARBURETOR

$16.99

$

Usually ships in 3-6 days

0

12

Honda 16212-887-306

GASKET, INSULATOR

$3.49

$

In Stock, only 2 left!

0

13

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

$3.49

$

In Stock, Qty 20+

0

13

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

14

Honda 99101-124-0550

JET, MAIN (#55) (CARBURETOR NO.)

$12.99

$

In Stock, only 3 left!

0

14

Honda 99101-124-0580

JET, MAIN (#58) (CARBURETOR NO.)

$11.99

$

In Stock, only 1 left!

0

14

Honda 99101-124-0600

JET, MAIN (#60) (CARBURETOR NO.)

$12.99

$

In Stock, Qty 5

0

14

Honda 99101-124-0620

JET, MAIN (#62) (CARBURETOR NO.)

$11.99

$

In Stock, only 2 left!

0

14

Honda 99101-124-0650

JET, MAIN (#65) (CARBURETOR NO.)

$13.99

$

In Stock, only 2 left!

0
