G150 QAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) CONTROL Parts Diagram

Engine, Made in Japan

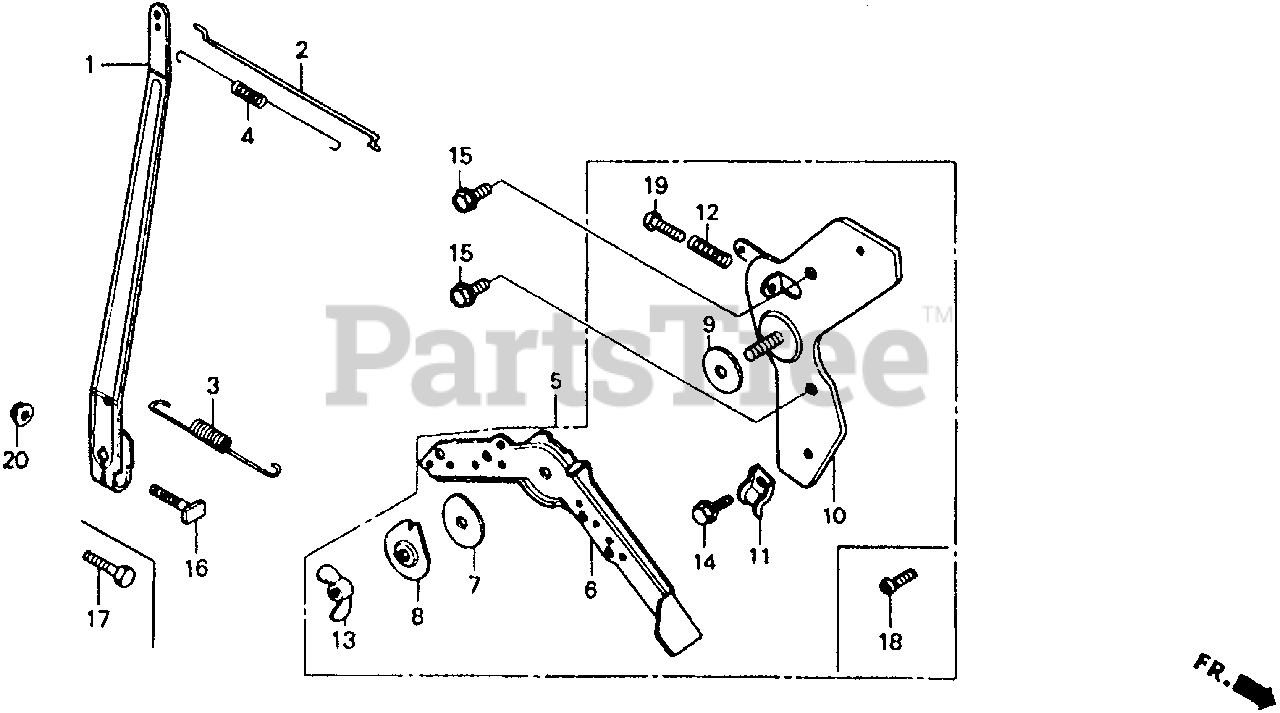

CONTROL Parts Diagram

  • Title

1

Honda 16551-887-010

SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 0635268).

$

$

Not available

2

Honda 16555-883-010

SEE PART DETAILS - PRI; ROD, GOVERNOR (Honda Code 0957092).

$

$

Not available

3

Honda 16561-883-010

SEE PART DETAILS - PRI; SPRING, GOVERNOR (Honda Code 0649236).

$6.49

$

In Stock, only 1 left!

0

4

Honda 16562-883-000

SPRING, THROTTLE RETURN (Honda Code 0635805).

Note: Use up to Engine SN 1158312.

$

$

Not available

4

Honda 16562-883-010

SPRING, THROTTLE RETURN (Honda Code 0807719).

Note: Use from Engine SN 1158313.

$4.99

$

In Stock, Qty 8

0

5

Honda 16570-883-W10

SEE PART DETAILS - PRI; CONTROL ASSY. (Honda Code 6880348).

$49.99

$

Usually ships in 3-6 days

0

6

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL (Honda Code 0636373).

$24.99

$

Usually ships in 3-6 days

0

7

Honda 16574-883-300

SPRING, LEVER (Honda Code 0636381).

$4.49

$

In Stock, only 1 left!

0

8

Honda 16575-883-300

WASHER, CONTROL LEVER (Honda Code 0636399).

$4.99

$

Usually ships in 3-6 days

0

9

Honda 16576-883-300

SPACER, CONTROL LEVER (Honda Code 0636407).

$5.99

$

Usually ships in 3-6 days

0

10

Honda 16581-883-320

SEE PART DETAILS - PRI; BASE, CONTROL LEVER (Honda Code 0724484).

$

$

Not available

11

Honda 16582-883-300

HOLDER, CONTROL CABLE (Honda Code 0636423).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING (Honda Code 0636431).

$5.49

$

In Stock, Qty 6

0

13

Honda 82111-567-831

WINGNUT (6MM) (Honda Code 0672873).
(Superseded to 90352-883-003)

Note: Use up to Engine SN 1050905.

$

$

Not available

13

Honda 90352-883-003

WINGNUT (6MM) (Honda Code 0724492).

Note: Use from Engine SN 1050906.

$

$

Not available

14

Honda 90002-892-000

BOLT, FLANGE (5X10) (Honda Code 0928051).

Note: Use from Engine SN 1396530.

$1.99

$

In Stock, Qty 5

0

15

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

16

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

Note: Use from Engine SN 1958657.

$3.49

$

In Stock, only 3 left!

0

17

Honda 92101-06020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 2528925).

Note: Use up to Engine SN 1958656.

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93500-05010-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X10) (Honda Code 0156976).

Note: Use up to Engine SN 1396529.

$1.49

$

In Stock, Qty 8

0

19

Honda 93500-05022-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X22) (Honda Code 0171801).

$0.99

$

Usually ships in 3-6 days

0

20

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0
