G150 QAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

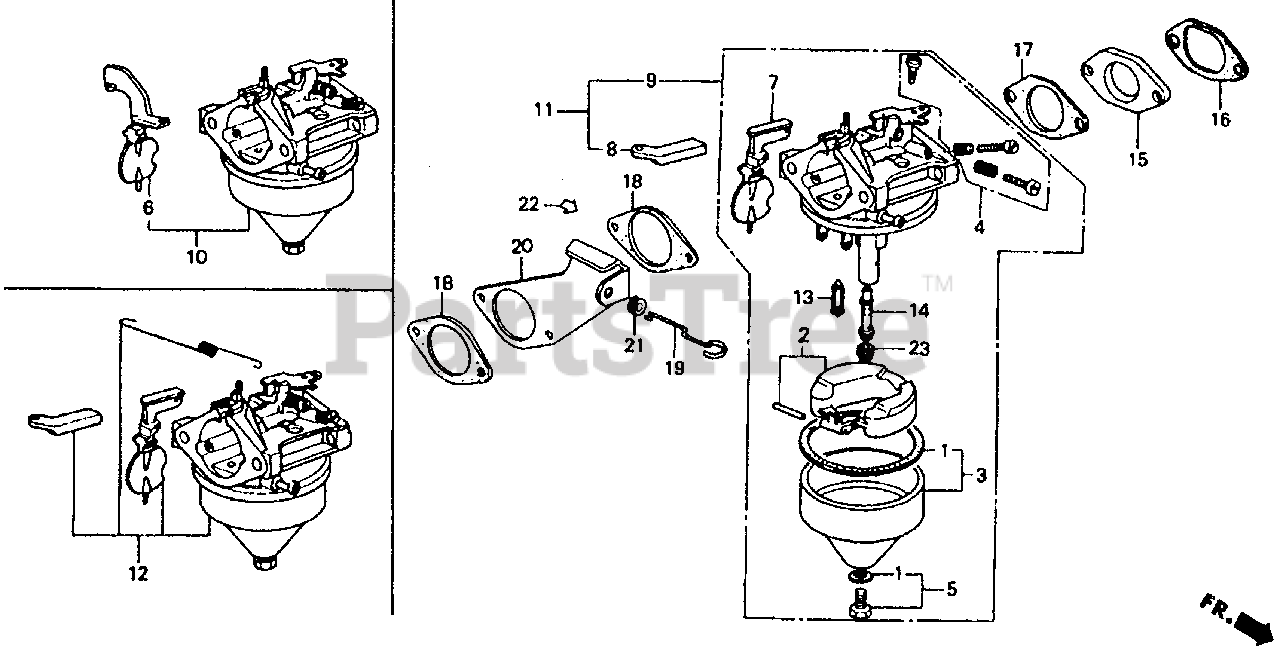

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

Note: Use up to Engine SN BB28A D.

$12.99

$

In Stock, only 2 left!

0

2

Honda 16013-883-005

FLOAT SET (Honda Code 0636258).

Note: Use up to Engine SN BB28A D.

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16015-896-505

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (Honda Code 4485975).

Note: Use up to Engine SN BB28A D.

$39.99

$

Usually ships in 3-6 days

0

4

Honda 16016-148-610

SCREW SET A (Honda Code 0671909).

Note: Use up to Engine SN BB28A C.

$22.99

$

Usually ships in 3-6 days

0

4

Honda 16016-148-611

SEE PART DETAILS - SUP; SCREW SET A (Honda Code 0640045).
(Superseded to 16016-890-015)

Note: Use from Engine SN BB28A D to BB28A D.

$

$

Not available

5

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB28A D.

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-883-005

SEE PART DETAILS - SUP; SCREW SET B (Honda Code 0636274).

Note: Use up to Engine SN BB28A D.

$

$

Not available

6

Honda 16044-883-005

CHOKE SET (Honda Code 0649186).

Note: Use up to Engine SN BB28A A.

$

$

Not available

7

Honda 16044-883-015

CHOKE SET (Honda Code 0803668).

Note: Use from Engine SN BB28A B to BB28A D.

$39.99

$

Usually ships in 3-6 days

0

8

Honda 16046-883-005

ARM, CHOKE LEVER (Honda Code 0803783).

Note: Use from Engine SN BB28A B to BB28A D.

$

$

Not available

9

Honda 16100-887-095

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3039856).

Note: Use from Engine SN 1131403 to 1335195.

$

$

Currently unavailable

10

Honda 16100-887-095

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3039856).

Note: Use up to Engine SN 1131402.

$

$

Currently unavailable

11

Honda 16100-887-095

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3039856).

Note: Use up to Engine SN 1131402.

$

$

Currently unavailable

12

Honda 16100-887-095

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3039856).

Note: Use up to Engine SN 1156981.

$

$

Currently unavailable

12

Honda 16100-887-095

SEE PART DETAILS - PRI; CARBURETOR ASSY. (Honda Code 3039856).

Note: Use up to Engine SN 1229068.

$

$

Currently unavailable

13

Honda 16155-883-005

SEE PART DETAILS - PRI; VALVE, FLOAT (Honda Code 0636282).

Note: Use up to Engine SN BB28A D.

$26.99

$

Usually ships in 3-6 days

0

14

Honda 16166-883-005

SEE PART DETAILS - PRI; NOZZLE, MAIN (Honda Code 0635755).

Note: Use up to Engine SN BB28A D.

$12.99

$

Usually ships in 3-6 days

0

15

Honda 16211-887-000

INSULATOR, CARBURETOR (Honda Code 0635243).

Note: Use up to Engine SN 1335195.

$15.99

$

Usually ships in 3-6 days

0

16

Honda 16212-887-306

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4455465).

Note: Use up to Engine SN 1335195.

$3.49

$

Usually ships in 3-6 days

0

17

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4357562).
(Superseded to 16221-887-800)

Note: Use up to Engine SN 1335195.

$3.49

$

In Stock, Qty 20+

0

17

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4357570).

Note: Use up to Engine SN 1335195.

$3.49

$

In Stock, Qty 20+

0

18

Honda 16269-883-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 4831939).

Note: Use up to Engine SN 1335195.

$1.99

$

In Stock, Qty 10

0

19

Honda 16611-883-610

ROD, CHOKE CONTROL (Honda Code 0636464).

Note: Use up to Engine SN 1335195.

$

$

Not available

20

Honda 16612-883-610

STAY, CHOKE CONTROL (Honda Code 0636472).

Note: Use up to Engine SN 1335195.

$

$

Not available

21

Honda 16613-883-610

GROMMET, CHOKE ROD (Honda Code 0636480).

Note: Use up to Engine SN 1335195.

$2.99

$

Usually ships in 3-6 days

0

22

Honda 87528-883-661

SEE PART DETAILS - PRI; MARK, CHOKE (Honda Code 0761163).

Note: Use up to Engine SN 1335195.

$2.49

$

Usually ships in 3-6 days

0

23

Honda 99101-124-0550

JET, MAIN (#55) (Honda Code 0635458).

Note: (Optional). Use up to Engine SN BB28A D.

$11.99

$

In Stock, only 3 left!

0

23

Honda 99101-124-0580

JET, MAIN (#58) (Honda Code 0635466).

Note: (Optional). Use up to Engine SN BB28A D.

$11.99

$

In Stock, only 1 left!

0

23

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474).

Note: (Optional). Use up to Engine SN BB28A D.

$12.99

$

In Stock, Qty 5

0

23

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482).

Note: Use up to Engine SN BB28A D.

$11.99

$

Usually ships in 3-6 days

0
