G150 QAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) AIR CLEANER (3) Parts Diagram

Engine, Made in Japan

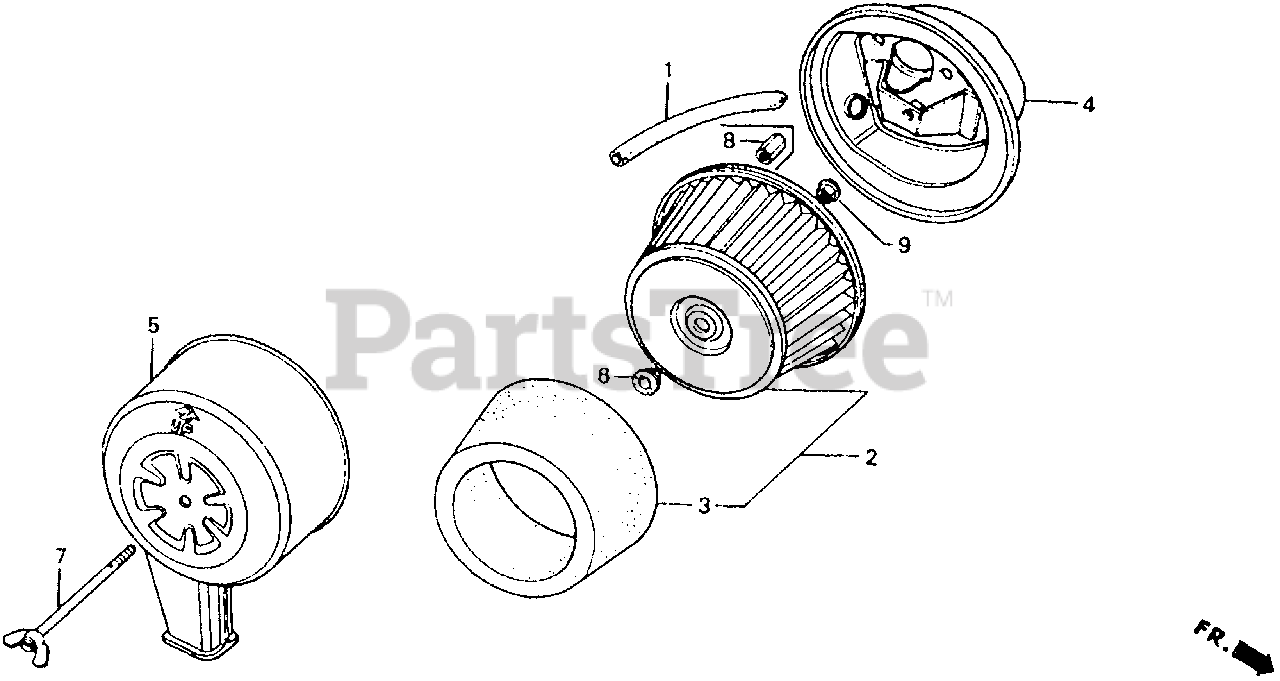

AIR CLEANER (3) Parts Diagram

  • Title

1

Honda 15721-732-000

SEE PART DETAILS - PRI; TUBE, BREATHER (Honda Code 1324995).

Note: (Optional). Use from Engine SN 1194247 to 1381354.

$

$

Not available

1

Honda 15721-732-000

SEE PART DETAILS - PRI; TUBE, BREATHER (Honda Code 1324995).

Note: (Optional). Use from Engine SN 1381355.

$

$

Not available

2

Honda 17210-883-903

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 2893915).
(Superseded to 17210-883-505)

Note: (Optional). Use from Engine SN 1194247 to 1369579.

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17210-883-903

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 2893915).
(Superseded to 17210-883-505)

Note: Use from Engine SN 1369580 to 2014339.

$33.99

$

Usually ships in 3-6 days

0

2

Honda 17210-883-903

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (Honda Code 2893915).
(Superseded to 17210-883-505)

Note: (Optional). Use from Engine SN 2014340.

$33.99

$

Usually ships in 3-6 days

0

3

Honda 17218-883-505

SEE PART DETAILS - PRI; ELEMENT B, AIR CLEANER (Honda Code 6042501).

Note: (Optional). Use from Engine SN 1541113.

$

$

Not available

4

Honda 17220-883-901

HOUSING, AIR CLEANER (NOT AVAILABLE) (Honda Code 0813428).

Note: (Optional). Use from Engine SN 1194247.

$

$

Not available

5

Honda 17230-883-911

COVER, AIR CLEANER (NOT AVAILABLE) (Honda Code 0813436).

Note: (Optional). Use from Engine SN 1194247.

$57.99

$

Usually ships in 0 days

0

6

Honda 17232-890-010

SEE PART DETAILS - PRI; GROMMET, AIR CLEANER (Honda Code 1038314).

Note: (Optional). Use from Engine SN 1194247.

$7.49

$

Usually ships in 3-6 days

0

7

Honda 90143-300-020

BOLT, AIR CLEANER COVER (Honda Code 0221689).

Note: (Optional). Use from Engine SN 1194247.

$12.99

$

Usually ships in 3-6 days

0

8

Honda 90282-329-000

NUT (6X15) (Honda Code 0293795).

Note: (Optional). Use from Engine SN 1194247 to 1366847.

$6.99

$

Usually ships in 3-6 days

0

9

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

Note: (Optional). Use from Engine SN 1194247.

$0.99

$

In Stock, only 3 left!

0
