G150 PEAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) FUEL TANK Parts Diagram

Engine, Made in Japan

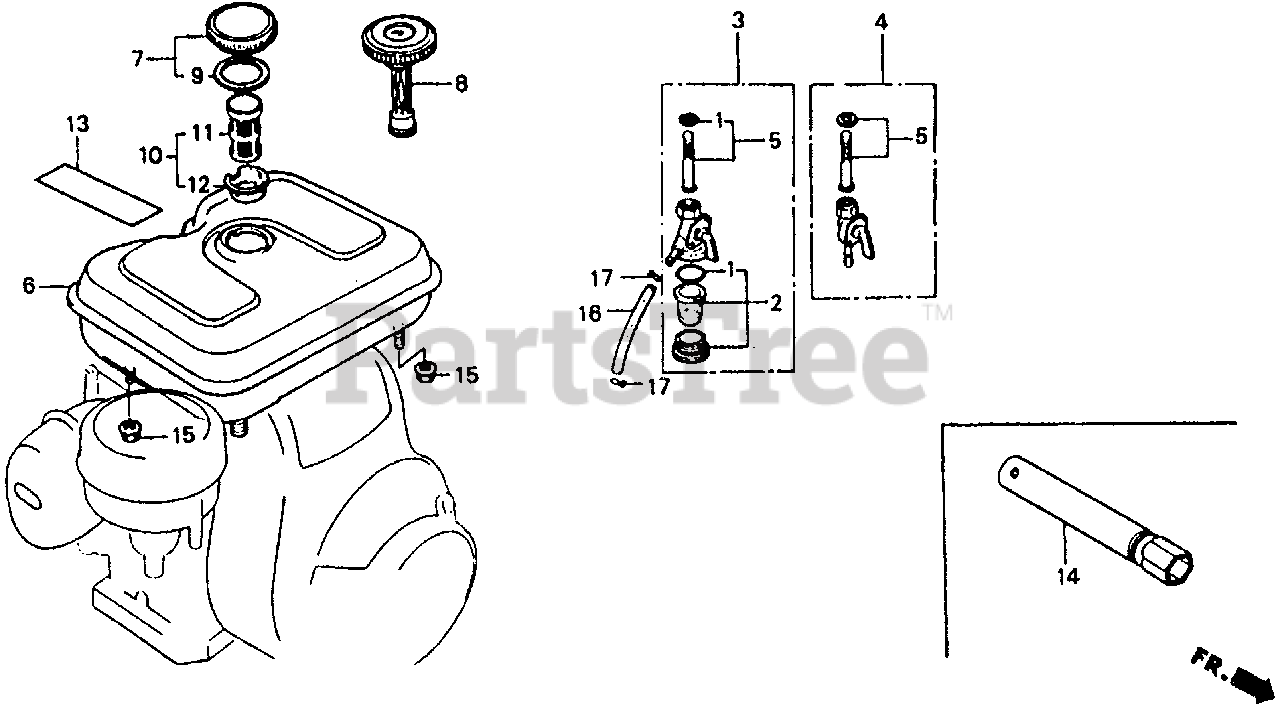

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE (Honda Code 0649194).

$12.99

$

In Stock, only 1 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - PRI; CUP SET, FUEL STRAINER (Honda Code 0965319).
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 3498722).

$

$

Currently unavailable

3

Honda 16950-883-045

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 7090269).
(Superseded to 16950-898-633)

$57.99

$

In Stock, only 1 left!

0

5

Honda 16952-883-005

SCREEN SET (Honda Code 0674580).

$18.99

$

In Stock, only 1 left!

0

6

Honda 06172-887-305ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 2938280).

Note: Use up to Engine SN 1370794.

$

$

Currently unavailable

6

Honda 17510-887-010XC

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 1038322).

Note: Use from Engine SN 1370795 to 1938221.

$

$

Not available

6

Honda 17510-887-020ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 2958213).

Note: Use from Engine SN 1370795 to 1938221.

$

$

Currently unavailable

7

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

Note: Use from Engine SN 1370795 to 2014339.

$

$

Currently unavailable

7

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

Note: Use from Engine SN 2014340.

$

$

Currently unavailable

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1370795 to 2014339.

$

$

Not available

7

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 2014340.

$

$

Not available

7

Honda 17620-044-010

CAP, FUEL FILLER (Honda Code 0627265).
(Superseded to 17620-102-730)

Note: Use up to Engine SN 1370794.

$

$

Not available

7

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 0835496).

Note: Use up to Engine SN 1370794.

$

$

Not available

8

Honda 17630-887-691

GAUGE, FUEL (ENGLISH) (Honda Code 2415032).

Note: (Optional). Use up to Engine SN 2014339.

$111.99

$

Usually ships in 3-6 days

0

8

Honda 17630-887-692

GAUGE, FUEL (Honda Code 4594420).

Note: (Optional). Use from Engine SN 2014340.

$

$

Not available

9

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2831444).
(Superseded to 17631-096-702)

Note: Use up to Engine SN 1370794.

$3.49

$

In Stock, only 2 left!

0

9

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

Note: Use from Engine SN 1370795 to 2014339.

$

$

Not available

9

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

Note: (Optional). Use from Engine SN 2014340.

$

$

Not available

10

Honda 17670-883-000

FILTER, FUEL (Honda Code 0636522).

Note: Use up to Engine SN 1370794.

$

$

Not available

11

Honda 17672-880-000

FILTER, FUEL (Honda Code 0474759).

Note: Use from Engine SN 1370795.

$13.99

$

Usually ships in 3-6 days

0

11

Honda 17672-883-300

FILTER, FUEL (Honda Code 0636530).

Note: Use up to Engine SN 1370794.

$

$

Not available

12

Honda 17673-883-300

HOLDER, FUEL FILTER (Honda Code 0672394).

Note: Use up to Engine SN 1370794.

$9.49

$

In Stock, only 4 left!

0

12

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

Note: Use from Engine SN 1370795.

$14.99

$

In Stock, only 1 left!

0

13

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH) (Honda Code 0636811).

$4.99

$

In Stock, Qty 9

0

14

Honda 89216-829-010

SEE PART DETAILS - PRI; WRENCH, SPARK PLUG (Honda Code 0171660).

$4.99

$

Usually ships in 3-6 days

0

15

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X70) (Honda Code 5137104).

$54.99

$

In Stock, only 4 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0
