G150 PEAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) FUEL TANK Parts Diagram

Engine, Made in Japan

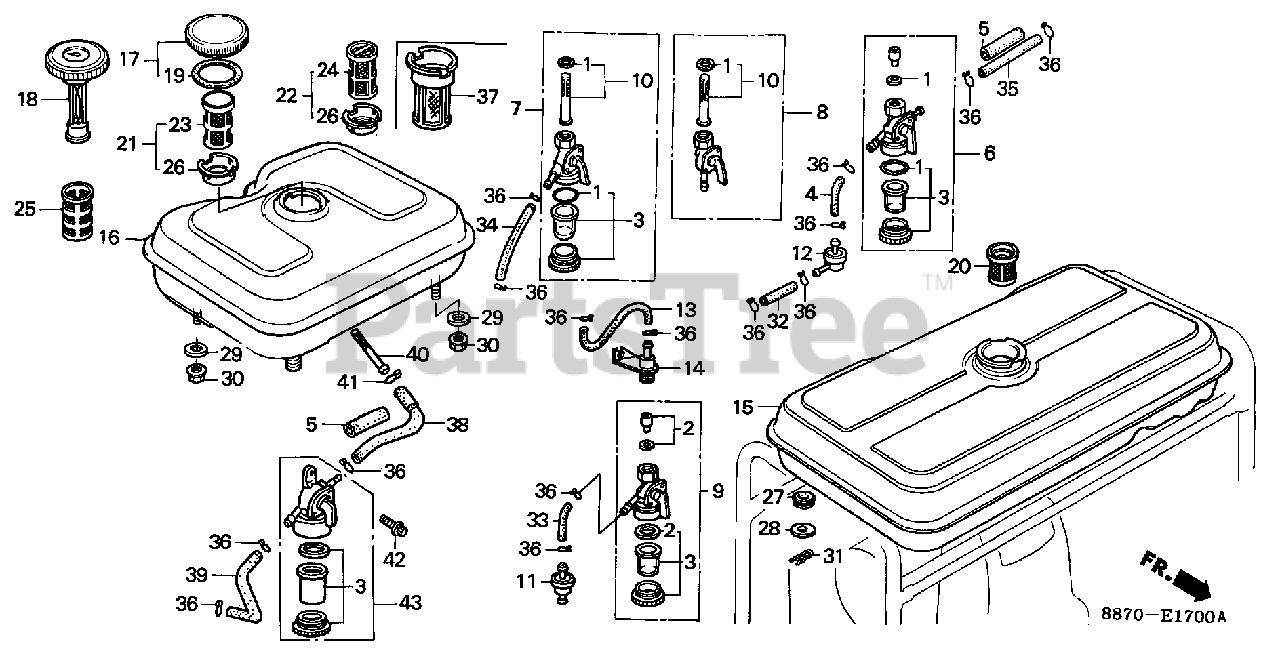

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$12.99

$

In Stock, only 1 left!

0

3

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

3

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

7

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

10

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

16

Honda 17510-887-000XC

TANK, FUEL

Note: Use up to Engine SN 1370794.

$

$

Currently unavailable

16

Honda 17510-887-010XC

SEE PART DETAILS - SUP; TANK, FUEL

Note: Use from Engine SN 1370795 to 1938221.

$

$

Not available

16

Honda 17510-887-020ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1370795 to 1938221.

$

$

Currently unavailable

17

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1370795 to 2014339.

$

$

Not available

17

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 2014340.

$

$

Not available

17

Honda 17620-044-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-102-730)

Note: Use up to Engine SN 1370794.

$

$

Not available

17

Honda 17620-102-730

SEE PART DETAILS - PRI; CAP, SUB-TANK

Note: Use up to Engine SN 1370794.

$

$

Not available

18

Honda 17630-887-691

GAUGE, FUEL (ENGLISH) Use up to Engine SN 2014339.

$111.99

$

Usually ships in 3-6 days

0

18

Honda 17630-887-692

GAUGE, FUEL (ENGLISH) Use from Engine SN 2014340.

$

$

Not available

19

Honda 17631-096-701

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-096-702)

Note: Use up to Engine SN 1370794.

$3.49

$

In Stock, only 2 left!

0

19

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: Use from Engine SN 1370795 to 2014339.

$

$

Not available

21

Honda 17670-883-000

FILTER, FUEL

Note: Use up to Engine SN 1370794.

$

$

Not available

23

Honda 17672-880-000

FILTER, FUEL

Note: Use from Engine SN 1370795.

$13.99

$

Usually ships in 3-6 days

0

23

Honda 17672-883-300

FILTER, FUEL

Note: Use up to Engine SN 1370794.

$

$

Not available

26

Honda 17673-883-300

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER

Note: Use up to Engine SN 1370794.

$9.49

$

In Stock, only 4 left!

0

26

Honda 17673-893-000

HOLDER, FUEL FILTER

Note: Use from Engine SN 1370795.

$14.99

$

In Stock, only 1 left!

0

30

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

34

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X70)

$82.99

$

In Stock, only 1 left!

0

36

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0
