G150 PEAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) AIR CLEANER (2) Parts Diagram

Engine, Made in Japan

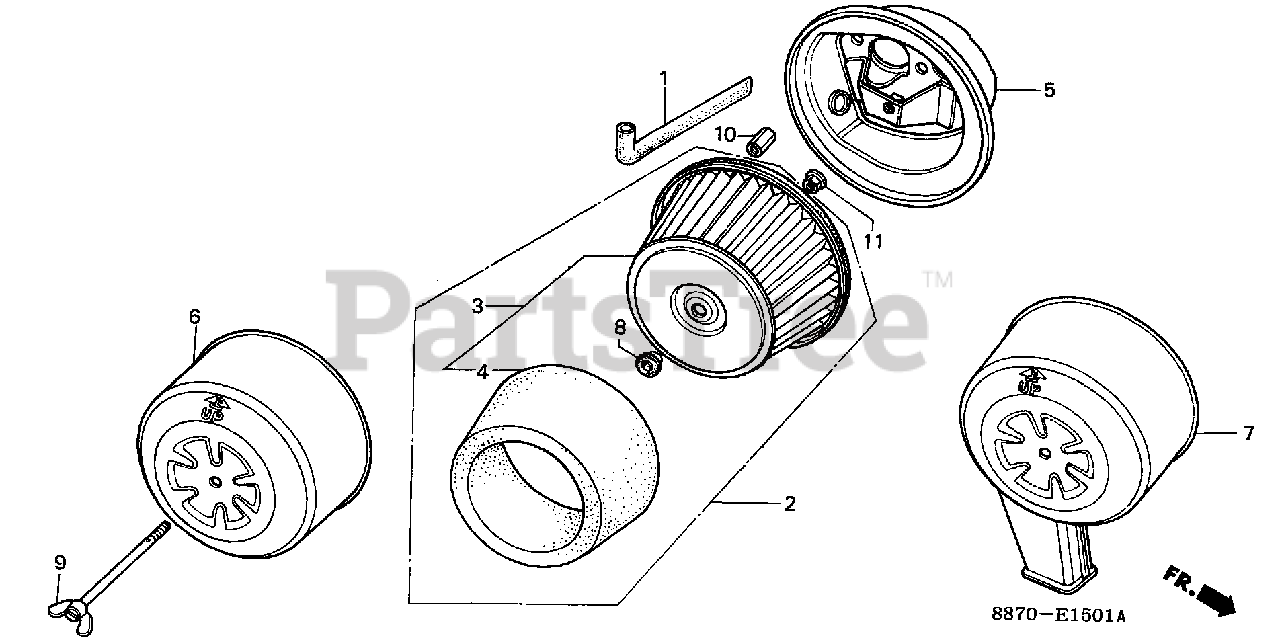

AIR CLEANER (2) Parts Diagram

  • Title

1

Honda 15721-883-020

TUBE, BREATHER Use from Engine SN 1194247 to 1381354.

$

$

Currently unavailable

1

Honda 15721-883-030

TUBE, BREATHER Use from Engine SN 1381355.

$6.99

$

Usually ships in 3-6 days

0

3

Honda 17210-883-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER Use from Engine SN 1194247 to 2014339.
(Superseded to 17210-883-305)

$33.99

$

Usually ships in 3-6 days

0

3

Honda 17210-883-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER Use from Engine SN 2014340.
(Superseded to 17210-883-305)

$33.99

$

Usually ships in 3-6 days

0

3

Honda 17210-883-903

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER Use from Engine SN 1194247 to 2014339.
(Superseded to 17210-883-505)

$33.99

$

Usually ships in 3-6 days

0

3

Honda 17210-883-903

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER Use from Engine SN 2014340.
(Superseded to 17210-883-505)

$33.99

$

Usually ships in 3-6 days

0

4

Honda 17218-883-505

ELEMENT B, AIR CLEANER Use from Engine SN 1541113.

$

$

Not available

5

Honda 17220-883-901

HOUSING, AIR CLEANER Use from Engine SN 1194247.

$

$

Not available

7

Honda 17230-883-911

COVER, AIR CLEANER Use from Engine SN 1194247.

$57.99

$

Usually ships in 0 days

0

8

Honda 17232-890-010

GROMMET, AIR CLEANER Use from Engine SN 1194247.

$7.49

$

Usually ships in 3-6 days

0

9

Honda 90143-300-020

BOLT, AIR CLEANER COVER Use from Engine SN 1194247.

$12.99

$

Usually ships in 3-6 days

0

10

Honda 90282-329-000

NUT (6X15) Use from Engine SN 1194247 to 1366847.

$6.99

$

Usually ships in 3-6 days

0

11

Honda 94050-06080

NUT, FLANGE (6MM)

Note: Use from Engine SN 1366848.

$0.99

$

In Stock, only 3 left!

0
