G150 HZDU (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) AIR CLEANER, SNORKEL Parts Diagram

Engine, Made in Japan

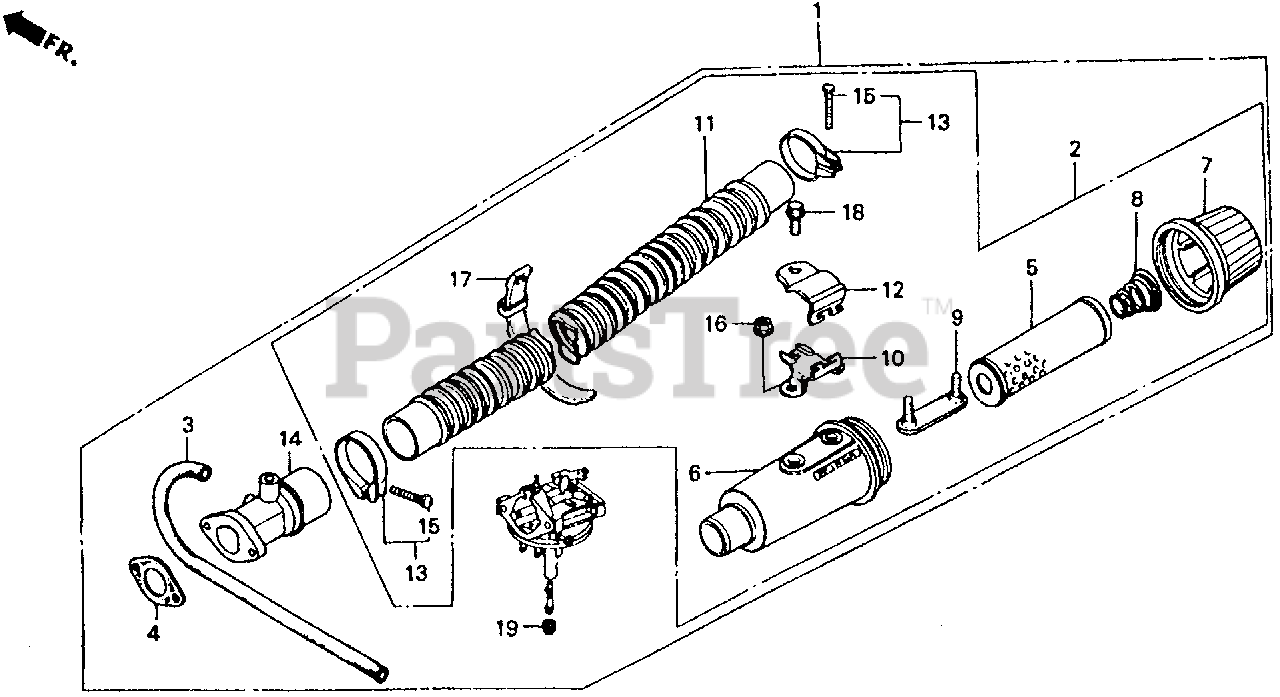

AIR CLEANER, SNORKEL Parts Diagram

  • Title

1

Honda 06172-887-810

AIR CLEANER KIT, SNORKEL (NOT AVAILABLE) (Honda Code 1007368).

Note: (Optional).

$

$

Currently unavailable

2

Honda 06172-888-810

SEE PART DETAILS - SUP; AIR CLEANER KIT, SNORKEL (Honda Code 0905737).

Note: (Optional).

$

$

Currently unavailable

3

Honda 15721-887-810

TUBE, BREATHER (Honda Code 1007434).

Note: (Optional).

$

$

Not available

4

Honda 16269-883-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER (Honda Code 4831939).

Note: (Optional).

$1.99

$

In Stock, Qty 10

0

5

Honda 17211-888-692

ELEMENT, AIR CLEANER (Honda Code 0754036).

Note: (Optional).

$

$

Not available

6

Honda 17220-888-691

HOUSING, AIR CLEANER (Honda Code 0754044).

Note: (Optional).

$73.99

$

Usually ships in 3-6 days

0

7

Honda 17231-888-691

CAP, AIR CLEANER (Honda Code 0754051).

Note: (Optional).

$

$

Not available

8

Honda 17233-888-691

SPRING, SETTING (Honda Code 0754069).

Note: (Optional).

$

$

Not available

9

Honda 17234-888-691

PLATE, AIR CLEANER SETTING (Honda Code 0754077).

Note: (Optional).

$15.99

$

Usually ships in 3-6 days

0

10

Honda 17236-888-691

BRACKET A, AIR CLEANER (Honda Code 0754085).

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

11

Honda 17237-888-691

HOSE, AIR CLEANER (Honda Code 0754093).

Note: (Optional).

$100.99

$

Usually ships in 3-6 days

0

12

Honda 17239-888-690

BRACKET B, AIR CLEANER (Honda Code 0754101).

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

13

Honda 17255-041-000

SEE PART DETAILS - SUP; BAND, AIR CLEANER CONNECTING TUBE (Honda Code 0220350).

Note: (Optional).

$

$

Currently unavailable

13

Honda 95018-34250

SEE PART DETAILS - PRI; BAND, AIR CLEANER CONNECTING TUBE (34) (Honda Code 5903182).

Note: (Optional).

$12.99

$

Usually ships in 3-6 days

0

14

Honda 17411-888-691

JOINT, TUBE CONNECTING (Honda Code 0751438).

Note: (Optional).

$65.99

$

Usually ships in 3-6 days

0

15

Honda 93500-04025-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X25) (Honda Code 0188367).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: (Optional).

$0.99

$

In Stock, Qty 20+

0

17

Honda 95014-62300

BAND B3, CABLE HARNESS (Honda Code 0288142).

Note: (Optional).

$2.99

$

Usually ships in 3-6 days

0

18

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2410892).

Note: (Optional).

$2.49

$

In Stock, only 3 left!

0

19

Honda 99101-124-0650

JET, MAIN (#65) (Honda Code 0636126).

Note: (Optional).

$12.99

$

In Stock, only 2 left!

0
