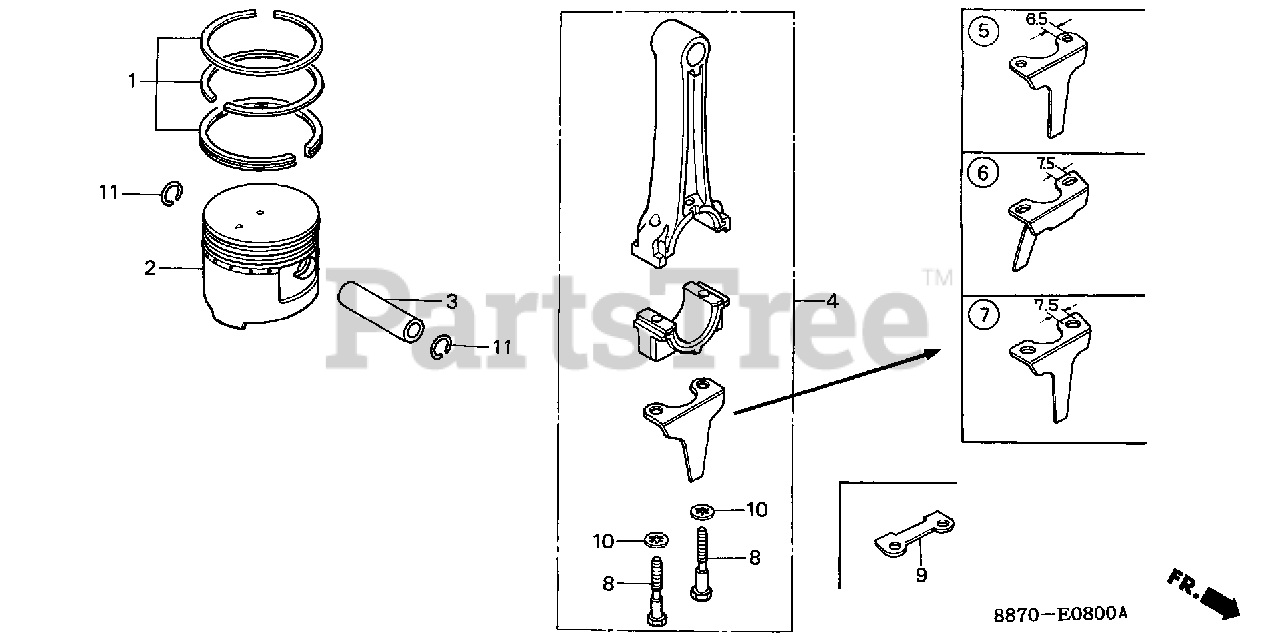

G150 HQAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) PISTON Parts Diagram

Engine, Made in Japan

PISTON Parts Diagram

  • Title

1

Honda 13010-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$37.99

$

In Stock, only 1 left!

0

1

Honda 13011-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.25)

$

$

Currently unavailable

1

Honda 13012-887-000

SEE PART DETAILS - PRI; RING SET, PISTON (0.50)

$

$

Not available

1

Honda 13013-887-000

RING SET, PISTON (0.75)

$

$

Not available

2

Honda 13101-887-003

PISTON (STD)

$93.99

$

Usually ships in 3-6 days

0

2

Honda 13102-887-000

PISTON (0.25)

$

$

Not available

2

Honda 13103-887-000

PISTON (0.50)

$

$

Not available

2

Honda 13104-887-000

PISTON (0.75)

$

$

Not available

3

Honda 13111-883-000

PIN, PISTON

$12.99

$

In Stock, only 1 left!

0

4

Honda 13200-887-050

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use from Engine SN 1229778.

$

$

Not available

4

Honda 13200-887-305

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING (UNDER SIZE)
(Superseded to 13200-887-428)

Note: Use up to Engine SN 1167848.

$

$

Not available

4

Honda 13200-887-315

ROD ASSY., CONNECTING (UNDER SIZE)

Note: Use from Engine SN 1167849 to 1229777.

$

$

Currently unavailable

4

Honda 13200-887-428

ROD ASSY., CONNECTING Use up to Engine SN 1229777.

$

$

Not available

4

Honda 13200-887-505

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

Note: Use up to Engine SN 1229777.

$

$

Not available

4

Honda 13200-887-506

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING Use from Engine SN 1229778.

$88.99

$

Usually ships in 3-6 days

0

5

Honda 13281-887-000

DIPPER, CONNECTING ROD (NOT AVAILABLE)

Note: Use up to Engine SN 1229777.

$

$

Currently unavailable

6

Honda 13281-887-020

DIPPER, CONNECTING ROD

Note: Use from Engine SN 1229778.

$8.49

$

Usually ships in 3-6 days

0

7

Honda 13281-887-318

DIPPER, CONNECTING ROD

Note: Use up to Engine SN 1229777.

$

$

Currently unavailable

8

Honda 90001-883-000

SEE PART DETAILS - SUP; BOLT, CONNECTING ROD (6MM)

Note: Use up to Engine SN 1167848.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90001-883-010

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (6MM) (NOT AVAILABLE)

Note: Use from Engine SN 1167849 to 1229777.

$

$

Currently unavailable

8

Honda 90001-883-020

BOLT, CONNECTING ROD (7MM)

Note: Use from Engine SN 1229778.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90431-883-000

WASHER B, CONNECTING ROD

Note: Use up to Engine SN 1167848.

$3.49

$

In Stock, only 2 left!

0

10

Honda 90432-883-000

WASHER, LOCK (6MM) (N/A: SEE ASSEMBLY)

Note: Use from Engine SN 1167849 to 1229777.

$

$

Currently unavailable

10

Honda 90432-889-003

WASHER, LOCK (7MM)

Note: Use from Engine SN 1229778.

$1.99

$

Usually ships in 3-6 days

0

11

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

Note: Use from Engine SN 1016562.

$1.49

$

Usually ships in 3-6 days

0

11

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0
