G150 HQAF (G150) - Honda Engine, Made in Japan (SN: G150-1000001 - G150-2017901) CONTROL (1) Parts Diagram

Engine, Made in Japan

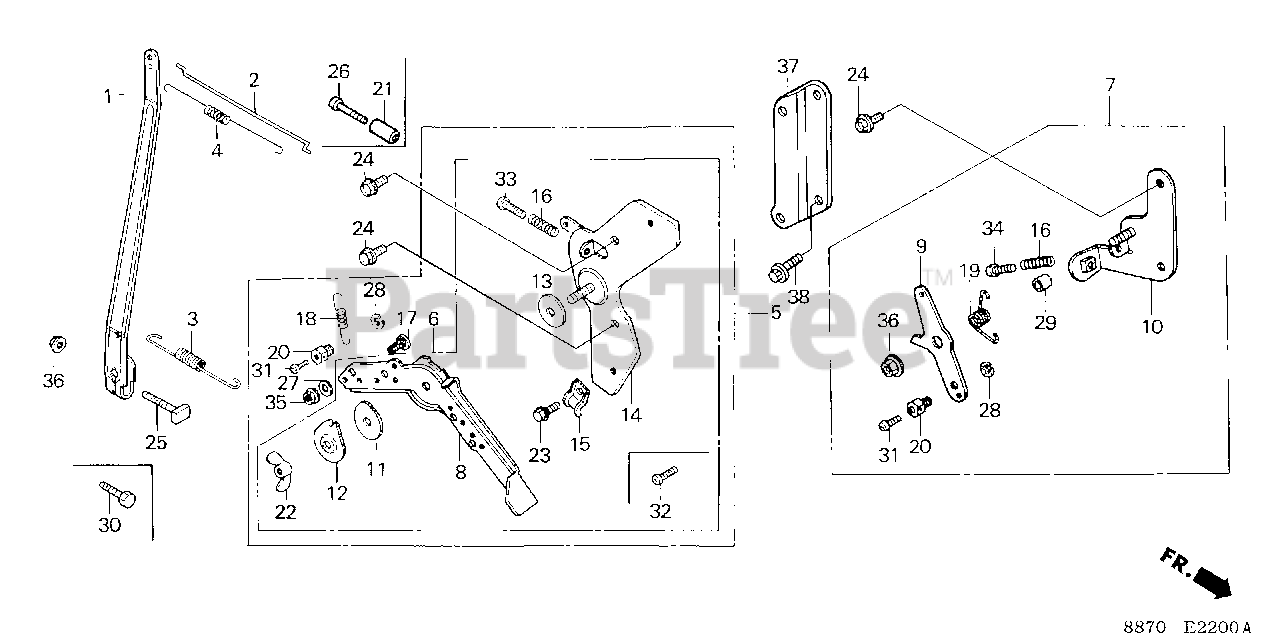

CONTROL (1) Parts Diagram

  • Title
1

Honda 16551-887-010

ARM, GOVERNOR

$

$

Not available

2

Honda 16555-883-010

ROD, GOVERNOR

$

$

Not available

3

Honda 16561-883-010

SPRING, GOVERNOR

$6.49

$

In Stock, only 1 left!

0

4

Honda 16562-883-000

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1158312.

$

$

Not available

4

Honda 16562-883-010

SPRING, THROTTLE RETURN

Note: Use from Engine SN 1158313.

$4.99

$

In Stock, Qty 8

0

5

Honda 16570-883-W10

SEE PART DETAILS - PRI; CONTROL ASSY.

$49.99

$

Usually ships in 3-6 days

0

8

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL

$24.99

$

Usually ships in 3-6 days

0

11

Honda 16574-883-300

SPRING, LEVER

$4.49

$

In Stock, only 1 left!

0

12

Honda 16575-883-300

WASHER, CONTROL LEVER

$4.99

$

Usually ships in 3-6 days

0

13

Honda 16576-883-300

SPACER, CONTROL LEVER

$5.99

$

Usually ships in 3-6 days

0

14

Honda 16581-883-320

BASE, CONTROL LEVER

$

$

Not available

15

Honda 16582-883-300

HOLDER, CONTROL CABLE

$4.49

$

Usually ships in 3-6 days

0

16

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$5.49

$

In Stock, Qty 7

0

22

Honda 82111-567-831

WINGNUT (6MM)
(Superseded to 90352-883-003)

Note: Use up to Engine SN 1050905.

$

$

Not available

22

Honda 90352-883-003

WINGNUT (6MM)

Note: Use from Engine SN 1050906.

$

$

Not available

23

Honda 90002-892-000

BOLT, FLANGE (5X10)

Note: Use from Engine SN 1396530.

$1.99

$

In Stock, Qty 5

0

24

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

25

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 1958657.

$3.49

$

In Stock, only 3 left!

0

30

Honda 92101-06020-0A

BOLT, HEX. (6X20)

Note: Use up to Engine SN 1958656.

$1.49

$

Usually ships in 3-6 days

0

32

Honda 93500-05010-0A

SCREW, PAN (5X10)

Note: Use up to Engine SN 1396529.

$1.49

$

In Stock, Qty 8

0

33

Honda 93500-05022-0A

SCREW, PAN (5X22)

$0.99

$

Usually ships in 3-6 days

0

36

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
