G1000 (8834-0) - Generac 750 Watt Portable Generator Fuel Tank And Sheet Metal - 750 Watt Unit No. 67440 Parts Diagram

750 Watt Portable Generator

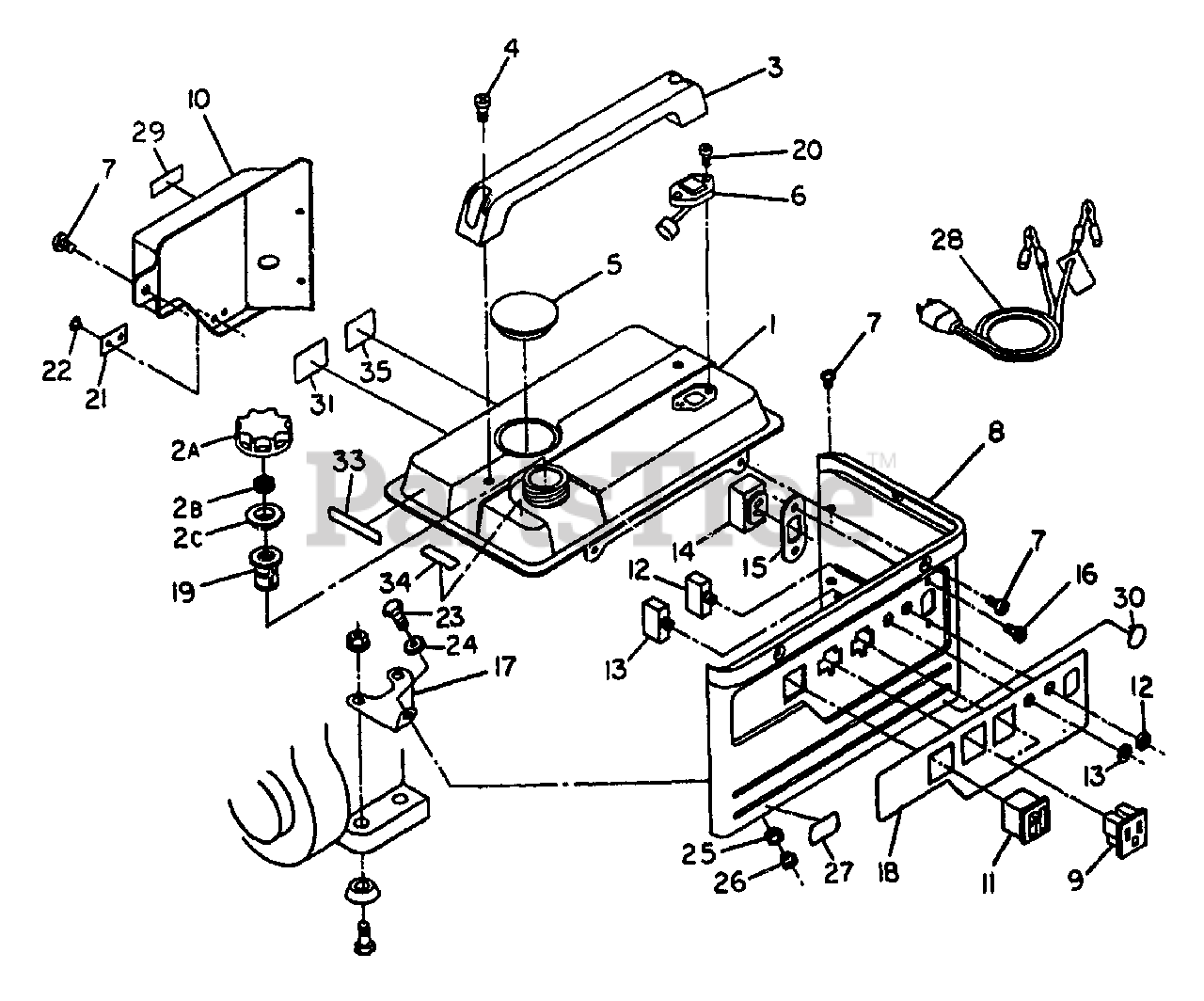

Fuel Tank And Sheet Metal - 750 Watt Unit No. 67440 Parts Diagram

  • Title

1

Briggs & Stratton 66374

TANK, Fuel - 3.0 Liter

$

$

Currently unavailable

2A

Briggs & Stratton 66802A

CAP, Fuel Tank

$

$

Currently unavailable

2B

Briggs & Stratton 66802B

BREATHER, Fuel Tank Cap

$

$

Currently unavailable

2C

Briggs & Stratton 66802C

GASKET, Fuel Tank Cap
(Superseded to 66802CGS)

$6.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 66376

HANDLE, Carrying

$

$

Currently unavailable

4

Briggs & Stratton 66890

SCREW, Pan Head Machine - M6-1.00 x 12mm
(Superseded to 66890GS)

$3.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 64680A

COVER, Spark Plug

$

$

Currently unavailable

6

Briggs & Stratton 66391A

GAUGE, Fuel Level

$

$

Currently unavailable

7

Briggs & Stratton 66827

SCREW (with Lock Washer) - M5-0.80 x 12mm

$

$

Not available

8

Briggs & Stratton 66377

PANEL

$

$

Currently unavailable

9

Briggs & Stratton 66818

RECEPTACLE - 120 Volts a-c
(Superseded to 66818GS)

$

$

Not available

10

Briggs & Stratton 66378

SHIELD, Exhaust Muffler

$

$

Currently unavailable

11

Briggs & Stratton 66817

SWITCH and LIGHT
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66820

BREAKER, Circuit - 10 Ampere

$

$

Not available

13

Briggs & Stratton 66888

BREAKER, Circuit - 6.5 Ampere

$

$

Not available

14

Briggs & Stratton 66821

RECEPTACLE, Battery Charge - 12 Volts d-c
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 66822

BRACKET, Battery Charge Receptacle
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66828

SCREW - M3-0.50 x 5mm

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66380

BRACKET, Panel

$

$

Currently unavailable

18

Briggs & Stratton 67431

DECAL, Receptacle and Control Panel

$

$

Currently unavailable

19

Briggs & Stratton 66838

FILTER, Fuel

$

$

Not available

20

Briggs & Stratton 52749

SCREW - M5-0.80 x 12mm

$

$

Currently unavailable

21

Briggs & Stratton 67430

PLATE, Data

$

$

Currently unavailable

22

Briggs & Stratton 66829

RIVET - 3mm

$

$

Currently unavailable

23

Briggs & Stratton 49815

SCREW, Machine - M5-0.80 x 16mm
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 67444

WASHER, Serrated - M5

$

$

Currently unavailable

25

Briggs & Stratton 52856

NUT, Hex Lock - M5-0.80
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 67435

NUT, Wing - M5-0.80

$

$

Currently unavailable

27

Briggs & Stratton 67210

DECAL - Ground
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65787

CABLE, Battery Charge

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 66824

DECAL - Caution HOT

$

$

Currently unavailable

30

Briggs & Stratton 66864

DECAL - Forestry

$

$

Not available

31

Briggs & Stratton 67441A

DECAL - Starting Data

$

$

Currently unavailable

33

DECAL, Air Cleaner

Note: Contact Generac for quantity required

$

$

Not available

34

DECAL - Unleaded Fuel

Note: Contact Generac for quantity required

$

$

Not available

35

DECAL - Lubrication

Note: Contact Generac for quantity required

$

$

Not available

Briggs & Stratton 67439

MANUAL, Owner's
(Superseded to 67439GS)

$14.99

$

Usually ships in 2-12 days

0
