G100 QAH (G100) - Honda Engine, Made in Japan (SN: G100-1000001 - G100-1490769) FUEL TANK (1) Parts Diagram

Engine, Made in Japan

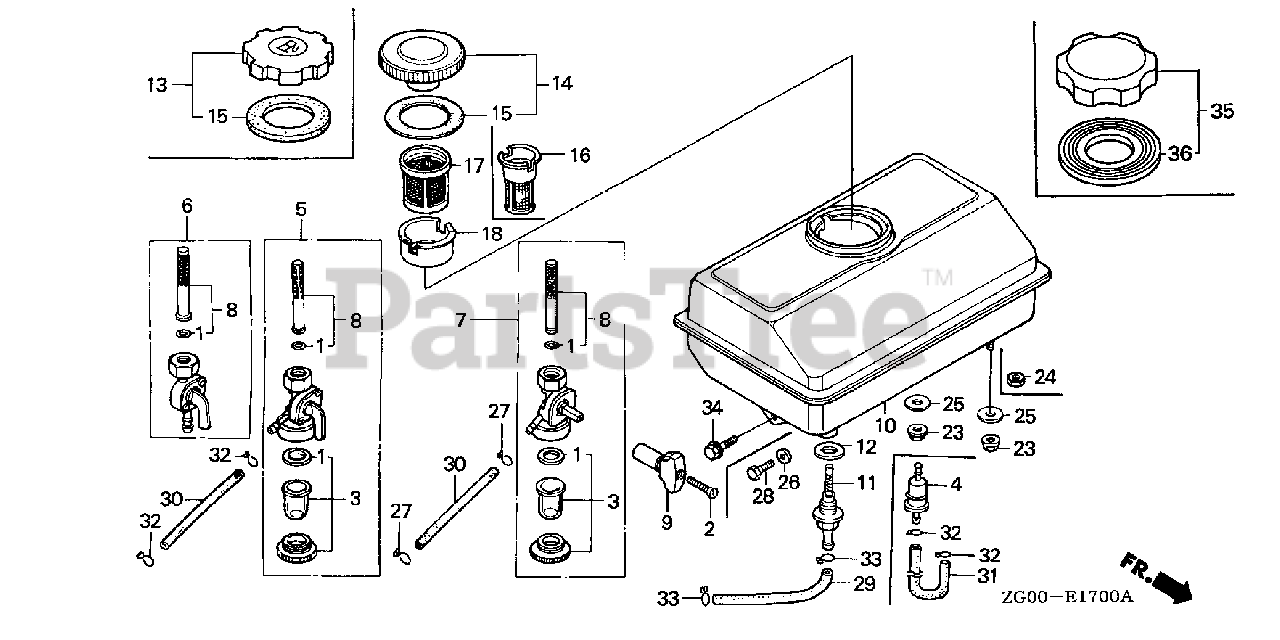

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE

$12.99

$

In Stock, only 1 left!

0

3

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

5

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

$

$

Currently unavailable

8

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

10

Honda 17510-896-000

TANK, FUEL

$

$

Not available

14

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1040705.

$

$

Not available

14

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-402-020)

Note: Use up to Engine SN 1040704.

$19.99

$

In Stock, only 1 left!

0

15

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

17

Honda 17672-880-000

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

18

Honda 17673-893-000

HOLDER, FUEL FILTER

$14.99

$

In Stock, only 1 left!

0

23

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 90438-671-000

WASHER, SPECIAL (6MM)

$6.49

$

Usually ships in 3-6 days

0

30

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X67)

$54.99

$

In Stock, only 4 left!

0

33

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-06014-08

BOLT, FLANGE (6X14)

$2.49

$

In Stock, Qty 9

0
