G100 QAH (G100) - Honda Engine, Made in Japan (SN: G100-1000001 - G100-1490769) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

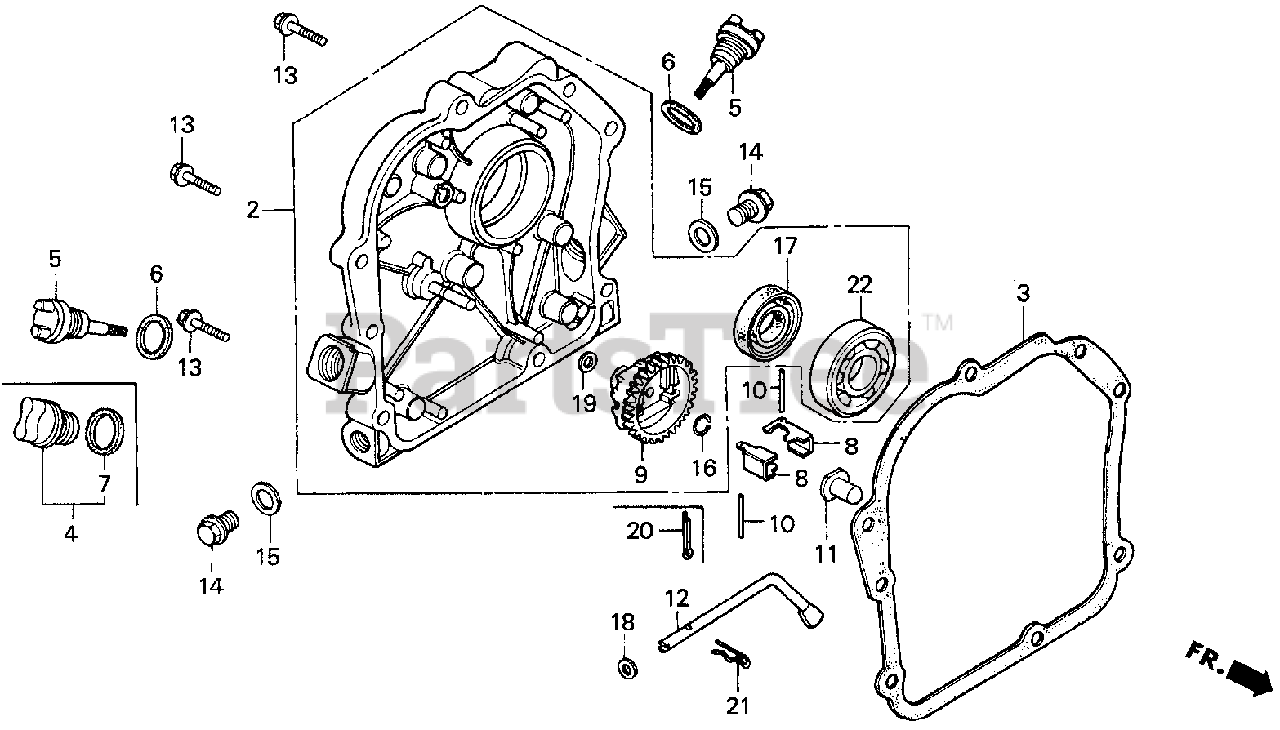

CRANKCASE COVER (1) Parts Diagram

  • Title

2

Honda 11300-896-000

COVER ASSY., CRANKCASE

Note: (Honda Code 0927343).

$

$

Not available

3

Honda 11381-896-000

GASKET, CASE COVER

Note: (Honda Code 0927350).

$

$

Currently unavailable

5

Honda 15620-896-000

CAP, OIL FILLER

Note: (Honda Code 0927541).

$

$

Currently unavailable

6

Honda 15621-896-010

GASKET, OIL FILLER CAP

Note: (Honda Code 1033042).

$5.49

$

In Stock, Qty 5

0

8

Honda 16511-896-000

WEIGHT, GOVERNOR

Note: (Honda Code 0927632).

$2.99

$

In Stock, only 3 left!

0

9

Honda 16512-ZG0-000

HOLDER, GOVERNOR WEIGHT

Note: Use from Engine SN 1443596. (Honda Code 1795160).

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16512-896-300

HOLDER, GOVERNOR WEIGHT

Note: Use up to Engine SN 1443595. (Honda Code 0927640).

$

$

Not available

10

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

Note: Use from Engine SN 1443596. (Honda Code 1427244).

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZG0-000

SLIDER, GOVERNOR

Note: Use from Engine SN 1443596. (Honda Code 1795178).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16531-896-000

SLIDER, GOVERNOR
(Superseded to 16531-ZG0-000)

Note: Use up to Engine SN 1443595. (Honda Code 0927657).

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16541-896-000

SHAFT, GOVERNOR ARM

Note: (Honda Code 0927665).

$9.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06028-08

BOLT, FLANGE (6X28)

Note: (Honda Code 2488500).

$2.99

$

Usually ships in 3-6 days

0

14

Honda 90131-896-650

BOLT, DRAIN PLUG

Note: (Honda Code 1986231).

$4.99

$

In Stock, only 2 left!

0

15

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

Note: (Honda Code 0171868).

$1.49

$

In Stock, Qty 12

0

16

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 2456697).

$1.99

$

In Stock, Qty 6

0

16

Honda 90602-896-000

CLIP, GOVERNOR HOLDER

Note: (Honda Code 0928101).

$1.99

$

Usually ships in 3-6 days

0

17

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

Note: (Honda Code 0866145).

$12.99

$

Usually ships in 3-6 days

0

18

Honda 94101-05800

WASHER, PLAIN (5MM)

Note: (Honda Code 0285791).

$1.49

$

In Stock, only 2 left!

0

19

Honda 94101-06800

WASHER, PLAIN (6MM)

Note: (Honda Code 0345900).

$0.99

$

In Stock, only 4 left!

0

20

Honda 94201-25280

PIN, COTTER (2.5X28)

Note: Use up to Engine SN 1443595. (Honda Code 0928135).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94251-08000

PIN, LOCK (8MM)

Note: (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

22

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

Note: (Honda Code 0722199).

$11.99

$

Usually ships in 3-6 days

0
