G100 QAF (G100) - Honda Engine, Made in Japan (SN: G100-1000001 - G100-1490769) CONTROL Parts Diagram

Engine, Made in Japan

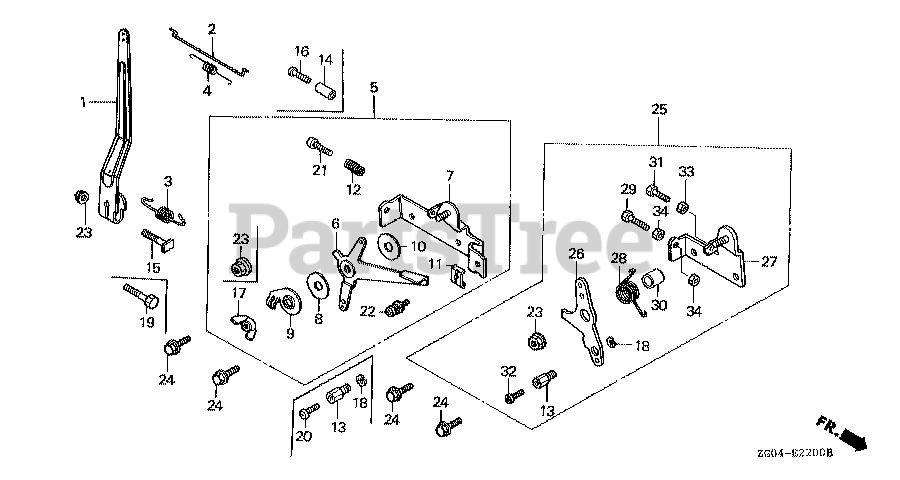

CONTROL Parts Diagram

  • Title

1

Honda 16551-896-000

ARM, GOVERNOR

Note: (Honda Code 0927673).

$

$

Currently unavailable

2

Honda 16555-896-000

ROD, GOVERNOR

Note: (Honda Code 0927681).

$

$

Currently unavailable

3

Honda 16561-896-000

SPRING, GOVERNOR

Note: (Honda Code 0927699).

$

$

Not available

4

Honda 16562-896-000

SPRING, THROTTLE RETURN

Note: (Honda Code 0927707).

$4.49

$

Usually ships in 3-6 days

0

5

Honda 16570-ZG0-000

CONTROL ASSY.

Note: (Optional). Use from Engine SN 1443596. (Honda Code 1807742).

$

$

Not available

5

Honda 16570-896-010

CONTROL ASSY.

Note: Use up to Engine SN 1443595. (Honda Code 1033091).

$

$

Not available

6

Honda 16571-ZG0-000

LEVER, CONTROL (STD)

Note: (Optional). Use from Engine SN 1443596. (Honda Code 1807759).

$

$

Currently unavailable

6

Honda 16571-896-310

LEVER, CONTROL

Note: Use up to Engine SN 1443595. (Honda Code 1033109).

$

$

Currently unavailable

7

Honda 16572-ZG0-000

BASE, CONTROL (STD)

Note: (Optional). Use from Engine SN 1443596. (Honda Code 1807767).

$18.99

$

Usually ships in 3-6 days

0

7

Honda 16572-896-000

BASE, CONTROL

Note: Use up to Engine SN 1443595. (Honda Code 0927731).

$

$

Not available

8

Honda 16574-ZE1-000

SPRING, LEVER

Note: (Optional). Use from Engine SN 1443596. (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

8

Honda 16574-883-300

SPRING, LEVER

Note: Use up to Engine SN 1443595. (Honda Code 0636381).

$4.49

$

In Stock, only 1 left!

0

9

Honda 16575-ZG0-000

WASHER, CONTROL LEVER

Note: (Optional). Use from Engine SN 1443596. (Honda Code 1807775).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 90481-896-300

WASHER, CONTROL LEVER

Note: Use up to Engine SN 1443595. (Honda Code 0928093).

$

$

Not available

10

Honda 16576-883-300

SPACER, CONTROL LEVER

Note: Use up to Engine SN 1443595. (Honda Code 0636407).

$5.49

$

Usually ships in 3-6 days

0

10

Honda 16578-ZE1-000

SPACER, CONTROL LEVER

Note: (Optional). Use from Engine SN 1443596. (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

11

Honda 16576-891-000

HOLDER, CABLE

Note: (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Honda Code 0636431).

$4.99

$

In Stock, Qty 7

0

15

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

17

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

Note: (Optional). Use from Engine SN 1443596. (Honda Code 0127720).

$5.49

$

In Stock, Qty 20+

0

17

Honda 90352-883-003

WINGNUT (6MM)

Note: Use up to Engine SN 1443595. (Honda Code 0724492).

$

$

Not available

21

Honda 93500-05020-0A

SCREW, PAN (5X20)

Note: (Optional). Use from Engine SN 1443596. (Honda Code 0197731).

$1.49

$

Usually ships in 3-6 days

0

21

Honda 93500-05025-0A

SCREW, PAN (5X25)

Note: Use up to Engine SN 1443595. (Honda Code 0145565).

$1.49

$

Usually ships in 3-6 days

0

22

Honda 93893-05016-00

SCREW-WASHER (5X16)

Note: (Honda Code 0821512).

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

24

Honda 95701-06012-08

BOLT, FLANGE (6X12)

Note: (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0
