G100 K2 SMD2 (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-9999999) RECOIL STARTER (3) Parts Diagram

Engine, Made in Japan

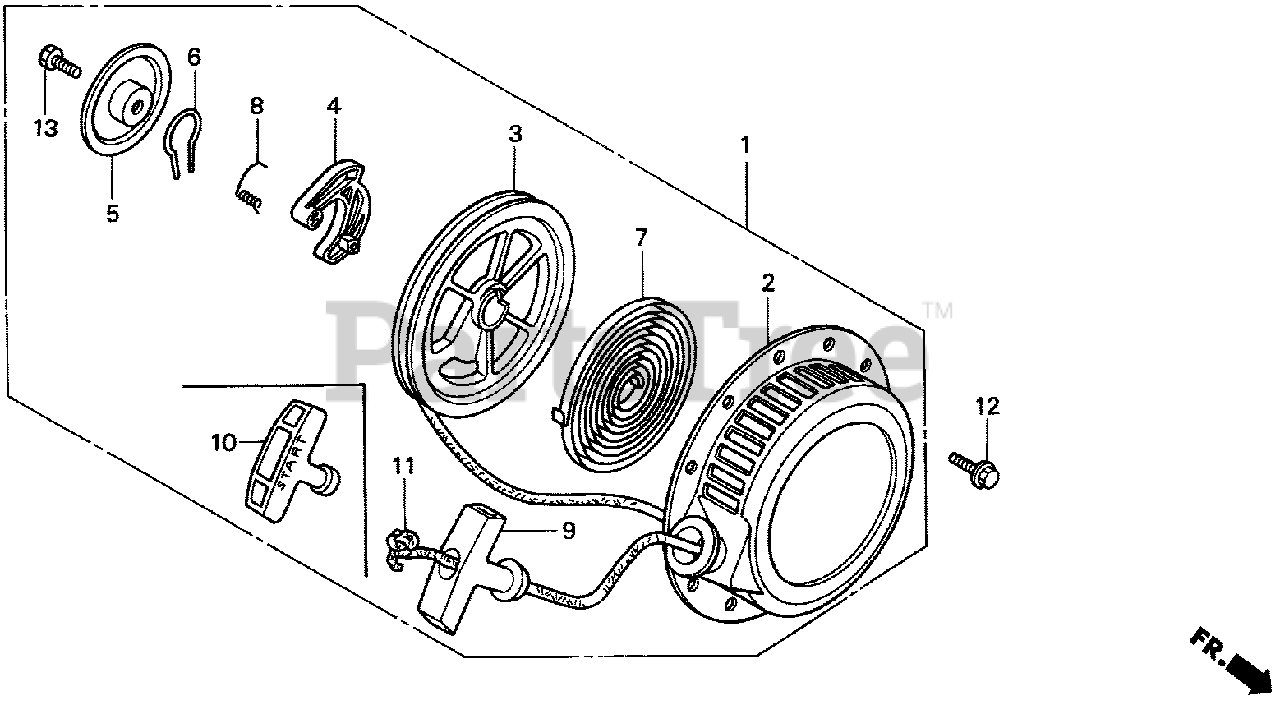

RECOIL STARTER (3) Parts Diagram

  • Title
1

Honda 28400-ZG0-004ZB

STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZG0-004ZG)

Note: (Honda Code 4186474).

$76.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG0-014ZB

CASE, RECOIL STARTER *R8* (BRIGHT RED)

Note: (Honda Code 4483228).

$

$

Not available

3

Honda 28420-ZG0-004

REEL, RECOIL STARTER

Note: (Honda Code 4186490).

$35.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

RATCHET, STARTER

Note: (Honda Code 1033224).

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

Note: (Honda Code 0927913).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

Note: (Honda Code 0927921).

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

Note: (Honda Code 2332922).

$23.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

Note: (Honda Code 0927939).

$4.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZH8-003

KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

Note: (Honda Code 3683950).

$8.49

$

In Stock, Qty 8

0

11

Honda 28471-921-000

ROPE, RECOIL STARTER

Note: (Honda Code 0283986).

$

$

Not available

12

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

13

Honda 92101-06012-0H

BOLT, HEX. (6X20)

Note: (Honda Code 3438264).

$1.99

$

Usually ships in 3-6 days

0
