G100 K2 QA2 (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-9999999) RECOIL STARTER (5) Parts Diagram

Engine, Made in Japan

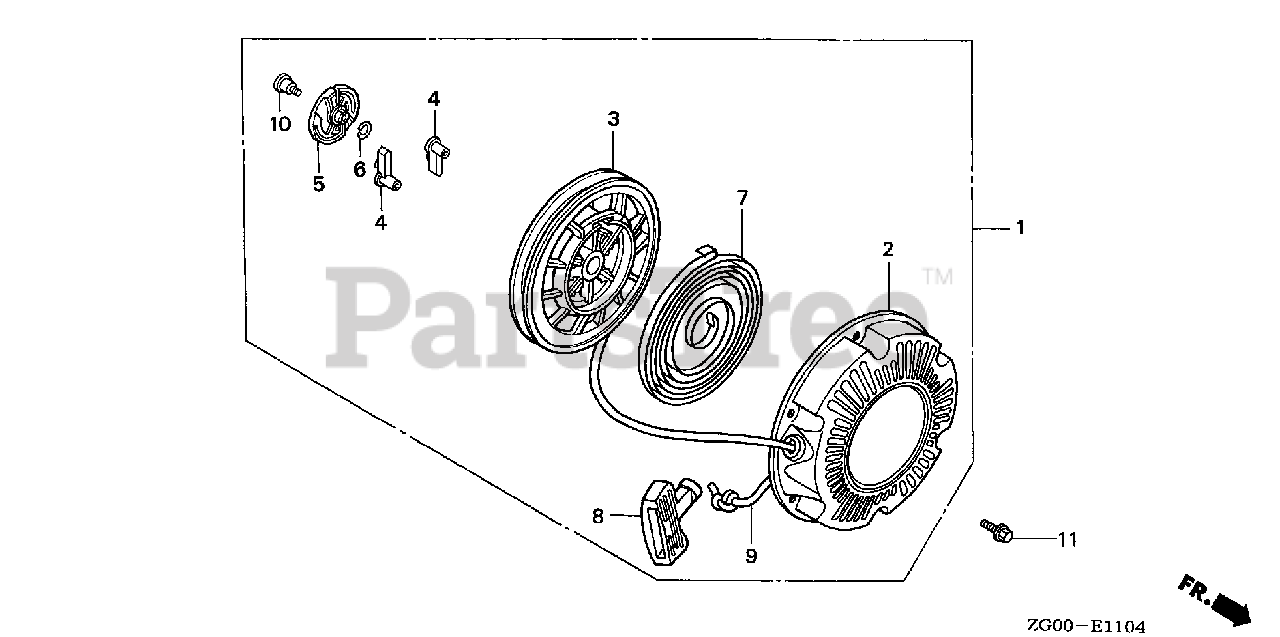

RECOIL STARTER (5) Parts Diagram

  • Title

1

Honda 28400-ZG0-W02ZC

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZG0-W02ZD)

Note: Use from Engine SN 3223717 to 3468618.

$

$

Not available

1

Honda 28400-ZG0-W02ZD

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

Note: Use from Engine SN 3468619.

$

$

Not available

2

Honda 28410-ZG0-W02ZC

CASE, RECOIL STARTER *R8* (BRIGHT RED)
(Superseded to 28410-ZG0-W02ZD)

Note: Use from Engine SN 3223717 to 3468618.

$115.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG0-W02ZD

CASE, RECOIL STARTER *R280* (POWER RED)

Note: Use from Engine SN 3468619.

$115.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZG0-W02

REEL, RECOIL STARTER

Note: Use from Engine SN 3223717.

$

$

Not available

4

Honda 28422-ZG0-W02

RATCHET, STARTER

Note: Use from Engine SN 3223717.

$10.99

$

In Stock, Qty 8

0

5

Honda 28433-ZG0-W02

GUIDE, RATCHET

Note: Use from Engine SN 3223717.

$8.49

$

Usually ships in 3-6 days

0

6

Honda 28441-ZH8-003

SPRING, FRICTION

Note: Use from Engine SN 3223717.

$6.99

$

In Stock, only 1 left!

0

7

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

Note: Use from Engine SN 3223717.

$19.99

$

In Stock, Qty 20+

0

8

Honda 28461-ZG0-W02

GRIP, STARTER

Note: Use from Engine SN 3223717.

$10.99

$

Usually ships in 3-6 days

0

9

Honda 28462-ZG0-W02

ROPE, RECOIL STARTER (#4X52")

Note: Use from Engine SN 3223717.

$

$

Not available

10

Honda 90003-ZH8-003

SCREW, SETTING

Note: Use from Engine SN 3223717.

$7.49

$

Usually ships in 3-6 days

0

11

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use from Engine SN 3223717.

$4.99

$

In Stock, Qty 20+

0
