G100 K2 QA (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-3331243) RECOIL STARTER (3) Parts Diagram

Engine, Made in Japan

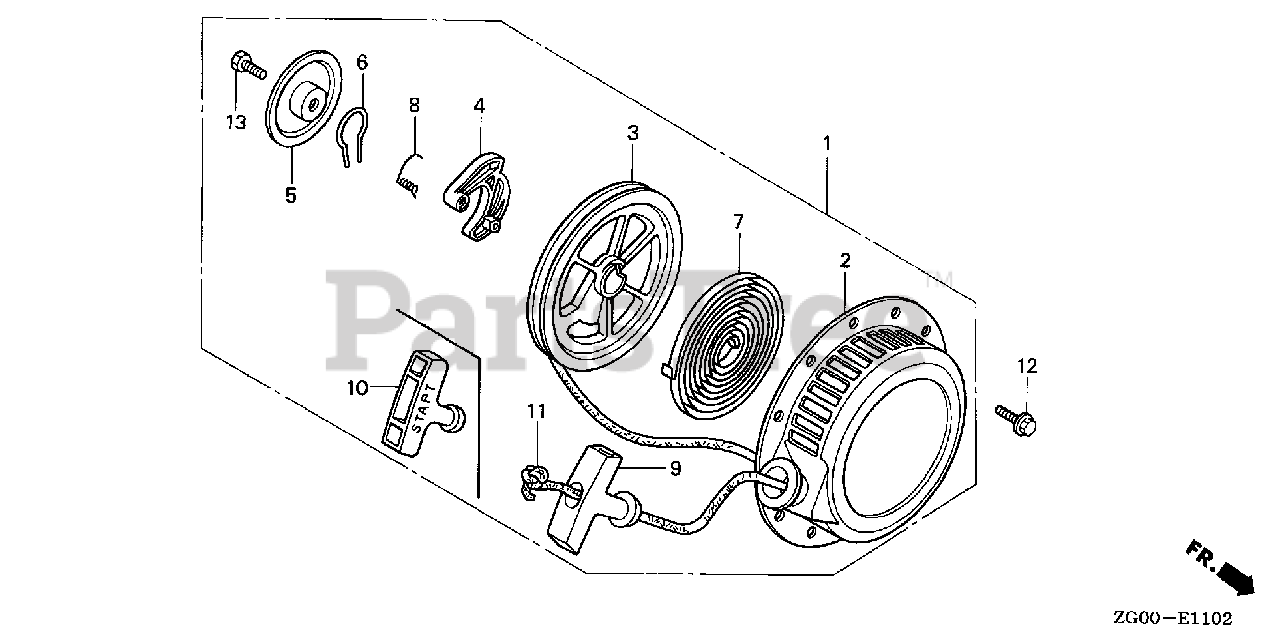

RECOIL STARTER (3) Parts Diagram

  • Title

1

Honda 28400-ZG0-004ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED)
(Superseded to 28400-ZG0-004ZG)

$76.99

$

Usually ships in 3-6 days

0

1

Honda 28400-ZG0-004ZG

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *R280* (POWER RED)

$76.99

$

Usually ships in 3-6 days

0

2

Honda 28410-ZG0-014ZB

SEE PART DETAILS - SUP; CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28420-ZG0-004

REEL, RECOIL STARTER

$35.99

$

Usually ships in 3-6 days

0

4

Honda 28422-896-010

RATCHET, STARTER

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-ZE6-003

SPRING, RECOIL STARTER

$23.99

$

In Stock, only 1 left!

0

8

Honda 28443-896-000

SPRING, RETURN

$4.99

$

Usually ships in 3-6 days

0

10

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; KNOB, RECOIL STARTER
(Superseded to 28461-ZH8-013)

$8.49

$

In Stock, Qty 9

0

11

Honda 28462-ZG0-004

ROPE, RECOIL STARTER (#4X65") (N/A: USE P/N 08540-ZG921-11)

$

$

Currently unavailable

12

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 92101-06012-0H

BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0
