G100 K2 QA (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-3331243) CAMSHAFT Parts Diagram

Engine, Made in Japan

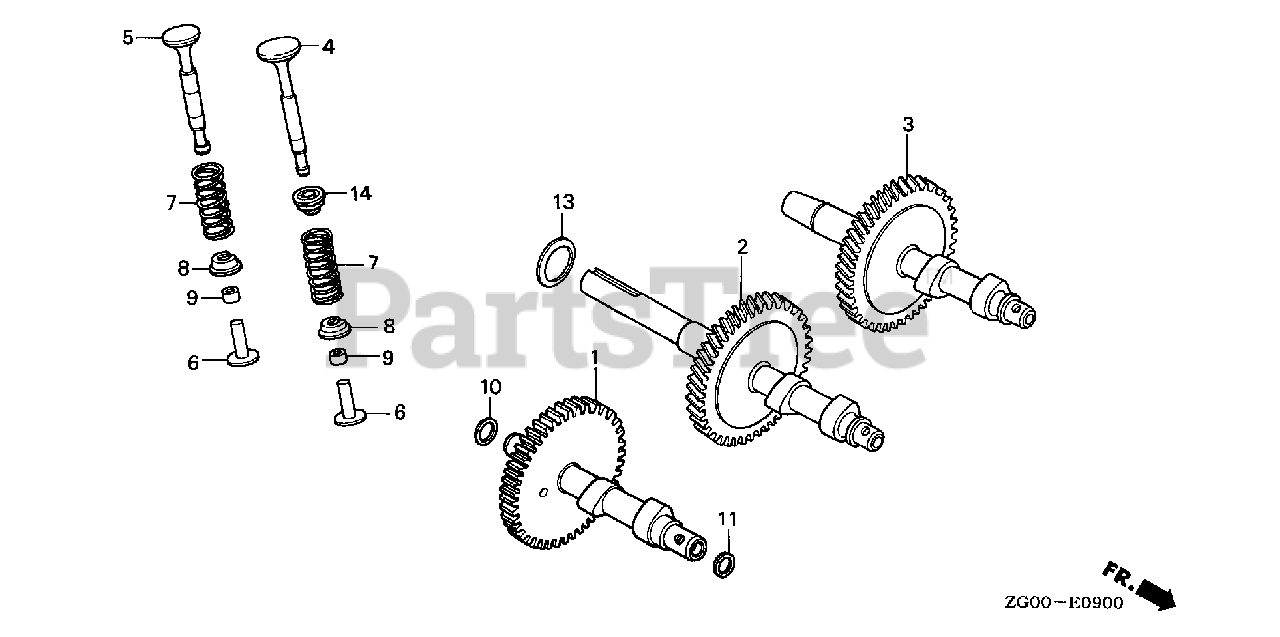

CAMSHAFT Parts Diagram

  • Title

1

Honda 14111-ZC0-000

SEE PART DETAILS - PRI; CAMSHAFT

$

$

Not available

4

Honda 14711-ZG1-H10

VALVE, IN.

$35.99

$

Usually ships in 3-6 days

0

4

Honda 14711-ZG1-000

VALVE, IN.

$35.99

$

Usually ships in 3-6 days

0

5

Honda 14721-ZG1-000

VALVE, EX.

$37.99

$

Usually ships in 3-6 days

0

6

Honda 14732-ZC0-000

SEE PART DETAILS - SUP; LIFTER, VALVE

$19.99

$

Usually ships in 3-6 days

0

7

Honda 14751-896-000

SPRING, VALVE

$4.49

$

In Stock, only 1 left!

0

8

Honda 14771-ZG0-000

RETAINER, VALVE SPRING

$5.49

$

Usually ships in 3-6 days

0

9

Honda 14801-892-000

ADJUSTER, TAPPET CLEARANCE (3.15)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14803-892-000

ADJUSTER, TAPPET CLEARANCE (3.25)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14806-892-000

ADJUSTER, TAPPET CLEARANCE (3.34)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14809-892-000

ADJUSTER, TAPPET CLEARANCE (3.43)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14812-892-000

ADJUSTER, TAPPET CLEARANCE (3.52)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14815-892-000

ADJUSTER, TAPPET CLEARANCE (3.61)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14818-892-000

ADJUSTER, TAPPET CLEARANCE (3.72)

$7.99

$

Usually ships in 3-6 days

0

9

Honda 14820-892-000

ADJUSTER, TAPPET CLEARANCE (3.82)

$7.99

$

Usually ships in 3-6 days

0

10

Honda 90452-ZG0-000

WASHER (12MM)

$

$

Not available

11

Honda 90452-ZG0-000

WASHER (12MM)

$

$

Not available
