G100 K2 KR (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-9999999) CONTROL (3) Parts Diagram

Engine, Made in Japan

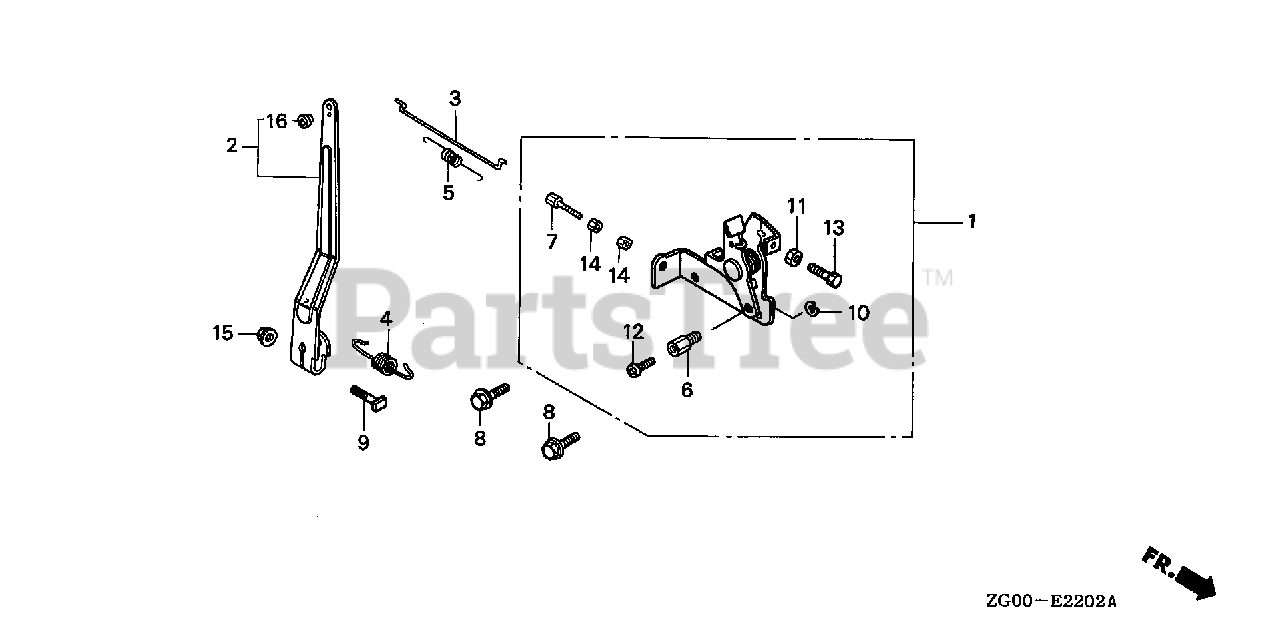

CONTROL (3) Parts Diagram

  • Title

1

Honda 16500-ZG0-V90

CONTROL ASSY.

Note: Use from Engine SN 3266029.

$22.99

$

Usually ships in 3-6 days

0

2

Honda 16550-ZG0-U00

ARM, GOVERNOR

Note: Use from Engine SN 3266029.

$

$

Not available

3

Honda 16555-ZG0-000

ROD, GOVERNOR

Note: Use from Engine SN 3266029.

$3.49

$

In Stock, only 1 left!

0

4

Honda 16561-ZG0-U01

SEE PART DETAILS - PRI; SPRING, GOVERNOR

Note: Use from Engine SN 3266029.

$

$

Not available

5

Honda 16562-ZG0-000

SPRING, THROTTLE RETURN

Note: Use from Engine SN 3266029.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 16594-883-010

HOLDER, WIRE

Note: Use from Engine SN 3266029.

$8.99

$

In Stock, only 3 left!

0

7

Honda 54717-ZG0-S00

BOLT, CABLE ADJUSTING (6X34)

Note: Use from Engine SN 3266029.

$4.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 3266029.

$1.99

$

In Stock, Qty 20+

0

9

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use from Engine SN 3266029.

$3.49

$

In Stock, only 3 left!

0

10

Honda 90605-230-000

CIRCLIP (5MM)

Note: Use from Engine SN 3266029.

$3.99

$

In Stock, only 3 left!

0

11

Honda 94001-05000-0S

NUT, HEX. (5MM)

Note: Use from Engine SN 3266029.

$2.49

$

Usually ships in 3-6 days

0

12

Honda 93500-04006-0H

SCREW, PAN (4X6)

Note: Use from Engine SN 3266029.

$1.49

$

In Stock, Qty 8

0

13

Honda 92101-05020-0A

BOLT, HEX. (5X20)

Note: Use from Engine SN 3266029.

$1.99

$

Usually ships in 3-6 days

0

14

Honda 94002-06000-0S

NUT, HEX. (6MM)

Note: Use from Engine SN 3266029.

$1.99

$

Usually ships in 3-6 days

0

15

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use from Engine SN 3266029.

$0.99

$

In Stock, Qty 20+

0

16

Honda 16576-ZA0-700

COLLAR, LEVER

Note: Use from Engine SN 3266029.

$5.99

$

Usually ships in 3-6 days

0
