G100 K2 AR (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-9999999) FAN COVER Parts Diagram

Engine, Made in Japan

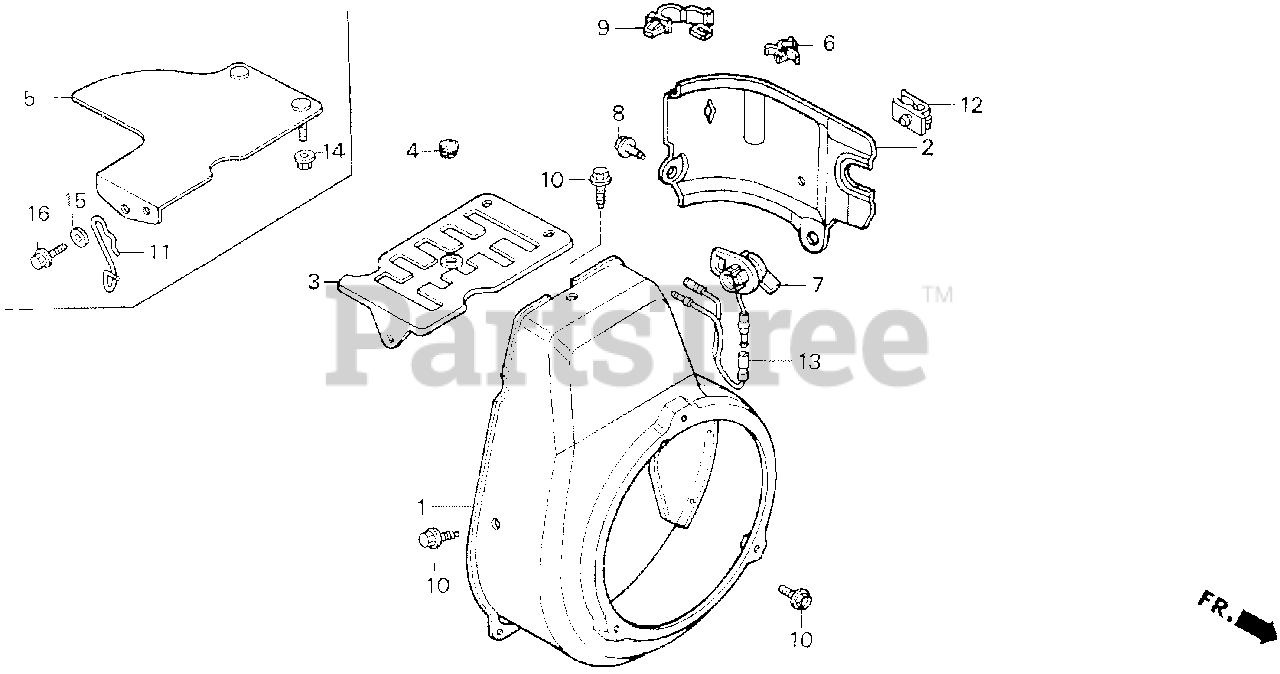

FAN COVER Parts Diagram

  • Title

1

Honda 19610-ZG0-U00ZB

COVER, FAN *R8* (BRIGHT RED)

Note: (Honda Code 5774302).

$

$

Currently unavailable

1

Honda 19610-ZG0-U00ZC

COVER, FAN *T73* (EXEN GRAY)

Note: (Honda Code 5774310).

$

$

Not available

2

Honda 19630-ZG0-U00

SHROUD
(Superseded to 19630-ZG0-U01)

Note: Use up to Engine SN 3239456. (Honda Code 5774344).

$

$

Not available

2

Honda 19630-ZG0-U01

SHROUD

Note: Use from Engine SN 3239457. (Honda Code 5993225).

$

$

Not available

5

Honda 19721-ZG0-U00

COVER, TOP

Note: (Honda Code 5774351).

$14.99

$

Usually ships in 3-6 days

0

7

Honda 36100-ZE1-015

SWITCH ASSY., ENGINE STOP

Note: (Honda Code 2787869).

$21.99

$

In Stock, only 1 left!

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

9

Honda 90652-SB2-023

CLIP, TUBE (7MM)

Note: (Honda Code 1640408).

$8.99

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

11

Honda 17547-ZG0-U00

GUIDE, WIRE

Note: (Honda Code 5774260).

$

$

Not available

12

Honda 19613-ZE1-010

CLAMP, CORD

Note: Use up to Engine SN 3239456. (Honda Code 5891544).

$1.99

$

Usually ships in 3-6 days

0

12

Honda 19613-ZE1-020

CLAMP, CORD

Note: Use from Engine SN 3239457. (Honda Code 5891551).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 32197-ZH8-003

SUB-HARNESS

Note: (Honda Code 4193082).

$11.99

$

In Stock, only 2 left!

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

Note: (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

15

Honda 94103-06000

WASHER, PLAIN (6MM)

Note: (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

16

Honda 95701-06016-00

BOLT, FLANGE (6X16)

Note: (Honda Code 2410892).

$2.49

$

In Stock, only 3 left!

0
