G100 K2 AR (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-9999999) CRANKCASE COVER (3) Parts Diagram

Engine, Made in Japan

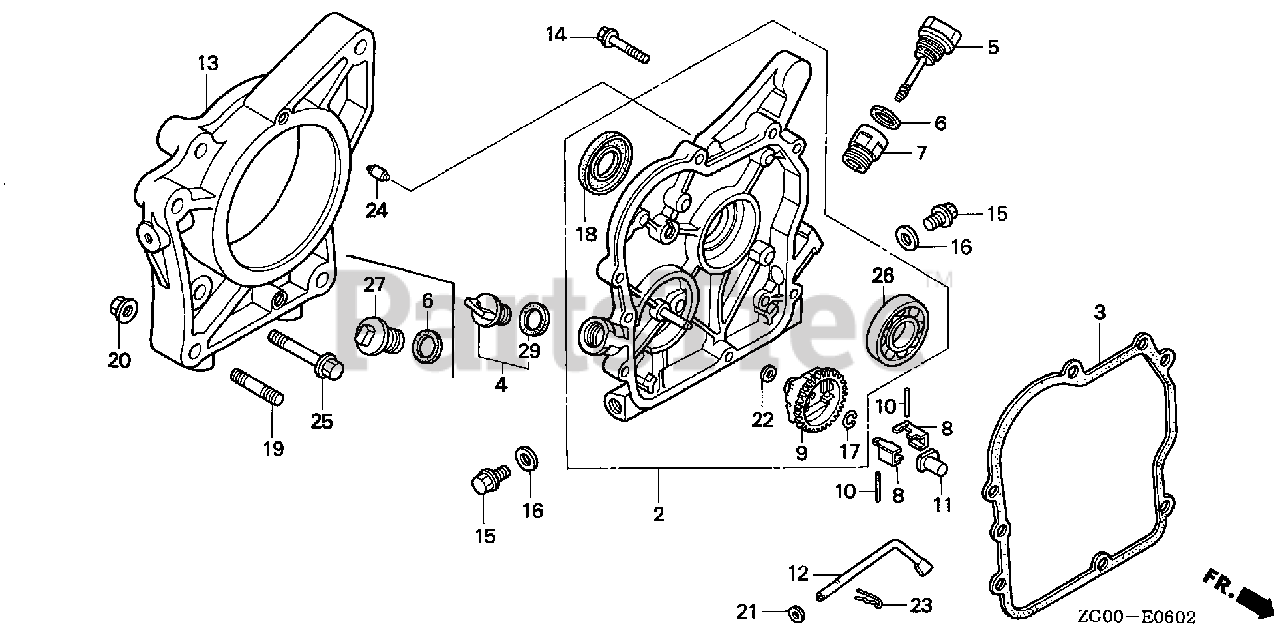

CRANKCASE COVER (3) Parts Diagram

  • Title
2

Honda 11300-ZG0-U01

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$

$

Not available

3

Honda 11381-ZG0-U00

GASKET, CASE COVER

$

$

Not available

5

Honda 15620-ZG0-003

SEE PART DETAILS - PRI; CAP, OIL FILLER

$

$

Not available

6

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 3 left!

0

8

Honda 16511-896-000

WEIGHT, GOVERNOR

$2.99

$

In Stock, only 3 left!

0

9

Honda 16512-ZG0-000

HOLDER, GOVERNOR WEIGHT

$15.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZG0-000

SLIDER, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16541-896-000

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$10.99

$

Usually ships in 3-6 days

0

13

Honda 22342-ZG0-U00

HOUSING, RR. CLUTCH

$

$

Not available

14

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, Qty 8

0

15

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

16

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

17

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

18

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$13.99

$

Usually ships in 3-6 days

0

19

Honda 92900-08032-0E

SEE PART DETAILS - PRI; BOLT 2, STUD (8X32)

$2.99

$

In Stock, Qty 20+

0

20

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

21

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

22

Honda 94101-06000

SEE PART DETAILS - SUP; WASHER, PLAIN (6MM)

$

$

Currently unavailable

22

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

23

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

24

Honda 94303-06100

PIN, DOWEL (6X10)

$2.99

$

Usually ships in 3-6 days

0

25

Honda 95700-08038-00

BOLT, FLANGE (8X38)

$

$

Currently unavailable

26

Honda 96100-62030-00

BEARING, RADIAL BALL (6203)

$11.99

$

Usually ships in 3-6 days

0
