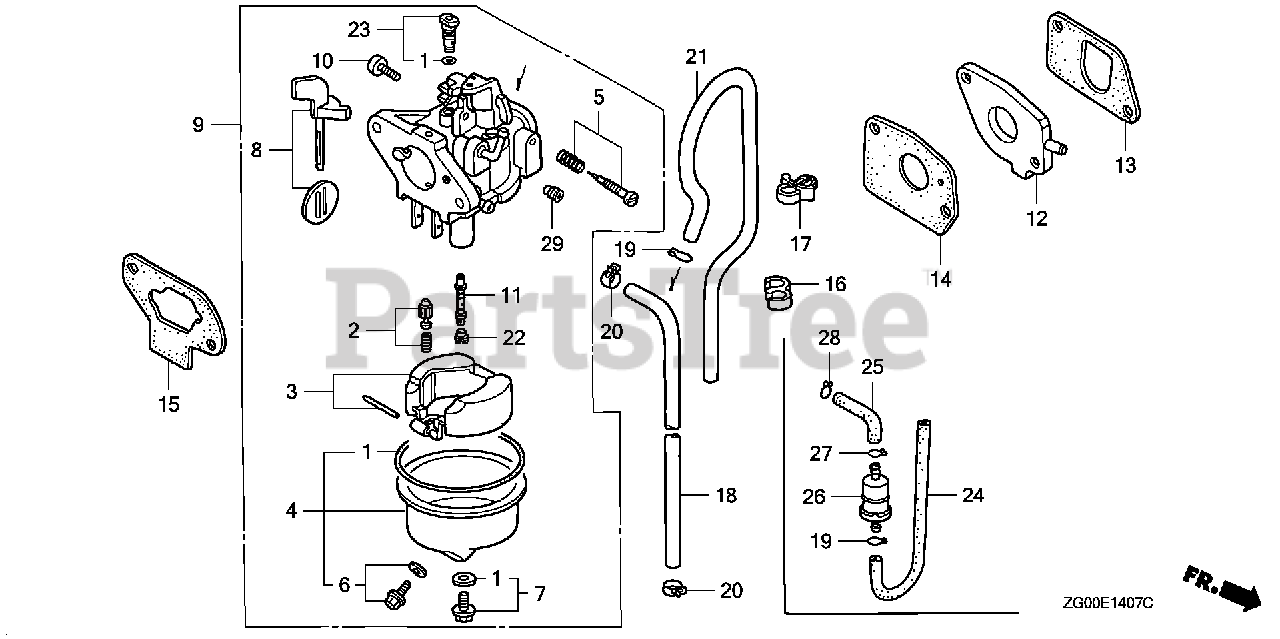

G100 K2 AR (G100) - Honda Engine, Made in Japan (SN: G100-3000001 - G100-9999999) CARBURETOR (8) Parts Diagram

Engine, Made in Japan

CARBURETOR (8) Parts Diagram

  • Title

1

Honda 16010-ZG1-015

SEE PART DETAILS - PRI; GASKET SET

$18.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT

$40.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZG0-811

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZW6-611)

$14.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZG0-W00

CHOKE SET

$

$

Not available

9

Honda 16100-ZG0-U05

CARBURETOR ASSY. (BF03B D)

Note: Use up to Engine SN 3236975.

$

$

Not available

9

Honda 16100-ZG0-U05

CARBURETOR ASSY. (BF03B D)

Note: Use from Engine SN 3236976.

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG0-U00

NOZZLE, MAIN

$23.99

$

Usually ships in 3-6 days

0

12

Honda 16211-ZC0-000

SEE PART DETAILS - SUP; INSULATOR, CARBURETOR
(Superseded to 16211-ZC0-010)

$14.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZG0-800

GASKET, INSULATOR

$2.99

$

In Stock, Qty 12

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16269-ZG0-800

GASKET, AIR CLEANER

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90658-ZA0-930

CLIP, IGNITION WIRE

$3.49

$

Usually ships in 3-6 days

0

18

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X400)

$82.99

$

In Stock, only 1 left!

0

19

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

20

Honda 95002-40850-08

CLAMP, TUBE (D8.5)

$3.49

$

In Stock, Qty 8

0

22

Honda 99101-187-0500

SEE PART DETAILS - SUP; JET, MAIN (#50) Use from Engine SN BF03B D.
(Superseded to 99101-ZG0-0500)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99101-187-0520

SEE PART DETAILS - SUP; JET, MAIN (#52)

$

$

Not available

22

Honda 99101-187-0550

SEE PART DETAILS - SUP; JET, MAIN (#55) Use up to Engine SN BF03B C.
(Superseded to 99101-ZG0-0550)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 99101-187-0580

JET, MAIN (#58) (CARBURETOR NO.)

Note: Use up to Engine SN BF03B C.

$11.99

$

Usually ships in 3-6 days

0

23

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 1 left!

0

24

Honda 16198-ZG0-U00

TUBE A, AIR VENT

$9.99

$

Usually ships in 3-6 days

0

25

Honda 16199-ZG0-U00

TUBE B, AIR VENT

$6.49

$

Usually ships in 3-6 days

0

26

Honda 16910-ZG0-U02

FILTER, FUEL

Note: Use up to Engine SN 3320620.

$18.99

$

Usually ships in 3-6 days

0

26

Honda 16910-ZG0-U02

FILTER, FUEL

Note: Use from Engine SN 3320621.

$18.99

$

Usually ships in 3-6 days

0

27

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

29

Honda 99102-ZG0-0700

JET

$7.99

$

Usually ships in 3-6 days

0
