G100 K1 QA (G100) - Honda Engine, Made in Japan (SN: G100-2000001 - G100-2424874) RECOIL STARTER (2) Parts Diagram

Engine, Made in Japan

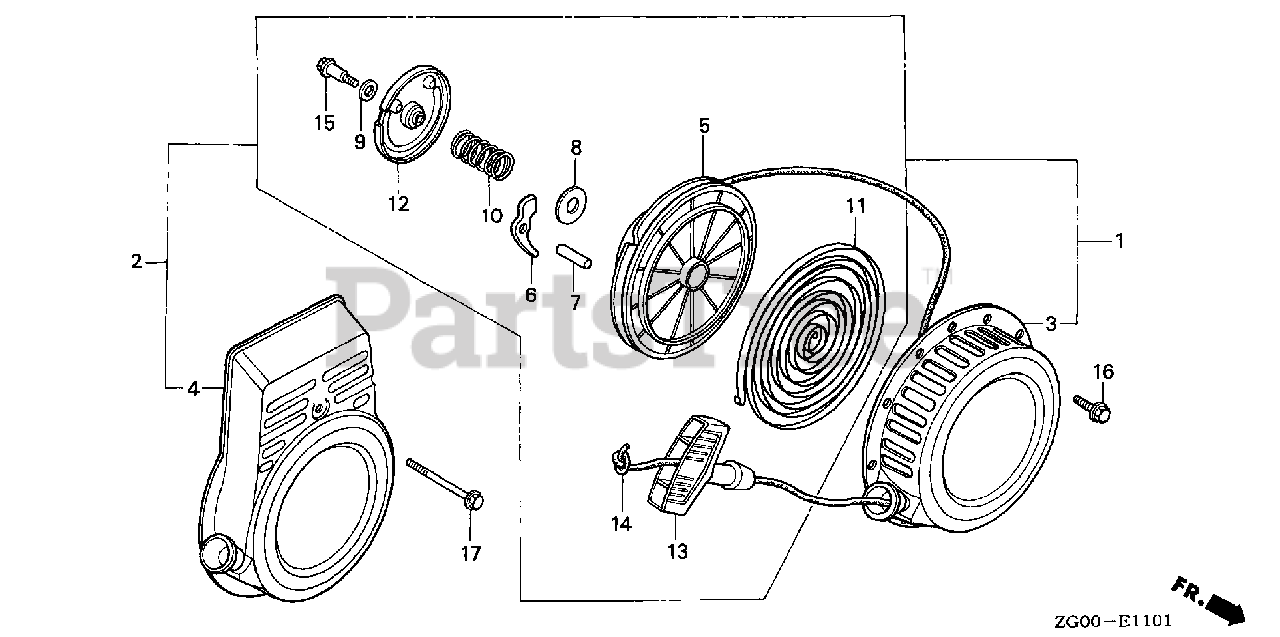

RECOIL STARTER (2) Parts Diagram

  • Title
1

Honda 28400-ZG0-003ZA

SEE PART DETAILS - SUP; STARTER, RECOIL

Note: Use up to Engine SN 2357294.

$

$

Not available

1

Honda 28400-ZG0-003ZC

SEE PART DETAILS - PRI; STARTER, RECOIL

Note: Use up to Engine SN 2357294.

$83.99

$

Usually ships in 3-6 days

0

3

Honda 28410-ZG0-003ZA

CASE, STARTER

Note: Use up to Engine SN 2357294.

$

$

Not available

5

Honda 28420-ZG0-003

SEE PART DETAILS - SUP; REEL, STARTER
(Superseded to 28421-Z1B-D10)

Note: Use up to Engine SN 2357294.

$31.99

$

Usually ships in 3-6 days

0

6

Honda 28422-ZG0-003

SEE PART DETAILS - SUP; RATCHET, STARTER
(Superseded to 28422-Z1B-D10)

Note: Use up to Engine SN 2357294.

$6.99

$

In Stock, only 1 left!

0

7

Honda 28423-ZG0-003

SEE PART DETAILS - SUP; SHAFT, RATCHET
(Superseded to 28423-Z1B-D10)

Note: Use up to Engine SN 2357294.

$6.49

$

Usually ships in 3-6 days

0

8

Honda 28431-ZG0-003

SEE PART DETAILS - SUP; PLATE A, FRICTION
(Superseded to 28431-Z1B-D10)

Note: Use up to Engine SN 2357294.

$6.49

$

Usually ships in 3-6 days

0

9

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

Note: Use up to Engine SN 2357294.

$2.99

$

Usually ships in 3-6 days

0

10

Honda 28441-ZG0-003

SPRING, FRICTION

Note: Use up to Engine SN 2357294.

$

$

Not available

11

Honda 28442-ZG0-003

SPRING, RETURN

Note: Use up to Engine SN 2357294.

$

$

Not available

12

Honda 28443-ZG0-003

SEE PART DETAILS - SUP; COVER, REEL STARTER
(Superseded to 28474-Z1B-D10)

Note: Use up to Engine SN 2357294.

$4.49

$

Usually ships in 3-6 days

0

13

Honda 28461-ZG0-013

GRIP, STARTER

$

$

Not available

13

Honda 28461-ZG0-013

GRIP, STARTER

Note: Use up to Engine SN 2357294.

$

$

Not available

14

Honda 28462-ZG0-003

ROPE, STARTER (#4X65") (N/A: USE P/N 08540-ZG921-11)

Note: Use up to Engine SN 2357294.

$

$

Currently unavailable

15

Honda 90003-ZG0-003

BOLT, REEL COVER

Note: Use up to Engine SN 2357294.

$

$

Not available

16

Honda 90011-ZG0-000

BOLT, FLANGE (6X8)

Note: Use up to Engine SN 2357294.

$3.49

$

In Stock, Qty 8

0
