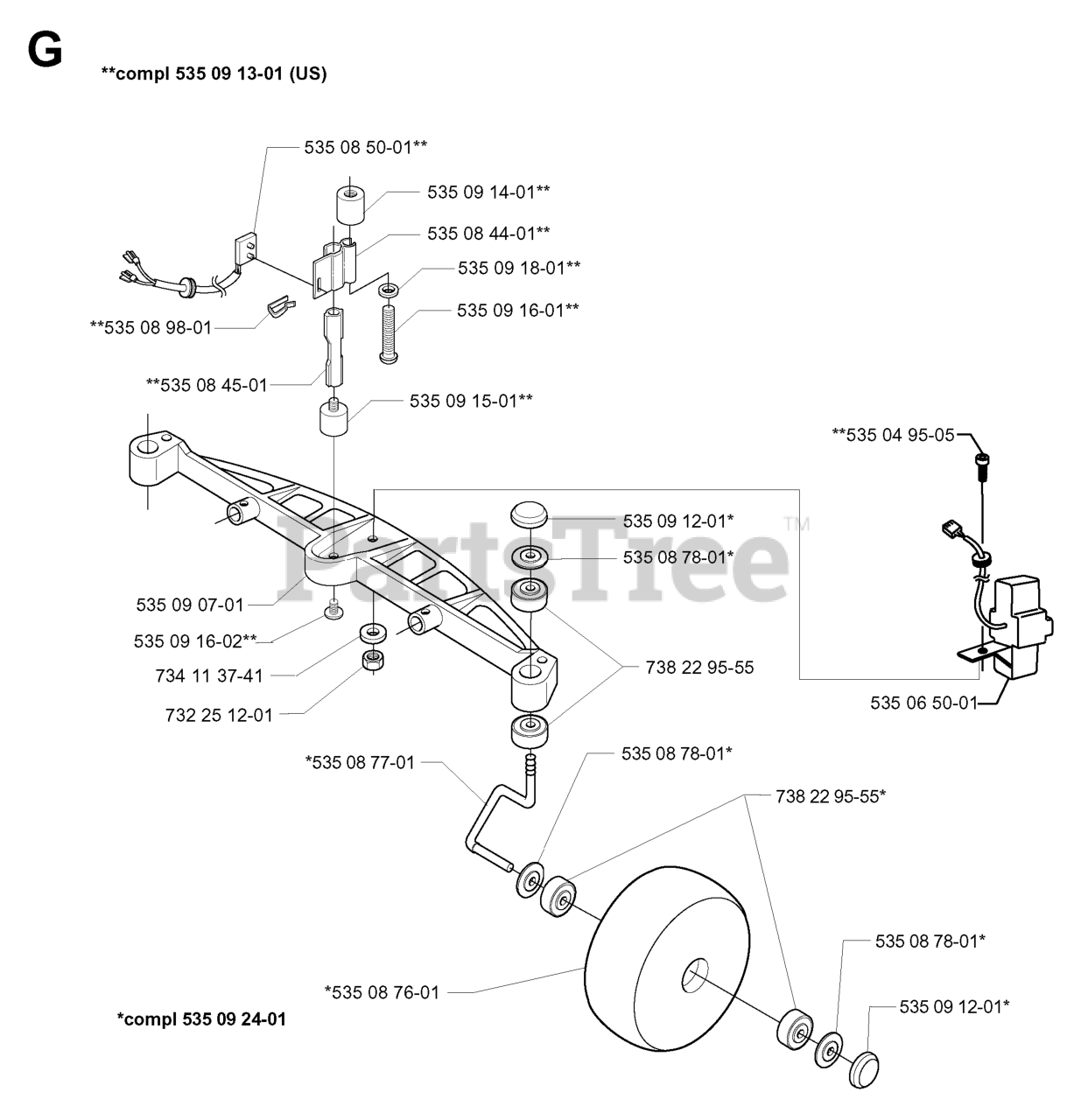

G1 - Husqvarna Automower Robotic Lawn Mower (1998-2003) FRONT AXLE 3 Parts Diagram

Automower Robotic Lawn Mower

FRONT AXLE 3 Parts Diagram

  • Title

535 09 16-01

Husqvarna 535091601

BOLT, DAMPER

$

$

Not available

535 08 44-01

Husqvarna 535084401

BRACKET, SWITCH

$

$

Not available

734 11 37-41

Husqvarna 734113741

WASHER

$4.99

$

Usually ships in 3-10 days

0

535 09 13-01

Husqvarna 535091301

ASSEMBLY, LIFT SENSOR

Note: US

$

$

Not available

535 06 50-01

Husqvarna 535065001

SENSOR FIELD

$

$

Not available

535 09 14-01

Husqvarna 535091401

BUMPER

$

$

Not available

535 09 24-01

Husqvarna 535092401

FRONT WHEEL ASSY W/AXLE

$

$

Not available

535 08 78-01

Husqvarna 535087801

WASHER, SEALING

$

$

Not available

535 08 50-01

Husqvarna 535085001

MICROSWITCH, LIFT SENSOR
(Superseded to 535101801)

$

$

Not available

535 09 16-02

Husqvarna 535091602

SCREW, DAMPER

$

$

Not available

535 08 98-01

Husqvarna 535089801

CLIP RETAINER

$3.49

$

Usually ships in 3-10 days

0

738 22 95-55

Husqvarna 738229555

BEARING

$9.49

$

Usually ships in 3-10 days

0

535 09 12-01

Husqvarna 535091201

RETAINER, AXLE CAP

$

$

Not available

535 08 77-01

Husqvarna 535087701

AXLE, FRONT WHEEL

$

$

Not available

535 08 45-01

Husqvarna 535084501

POST, SLIDE

$

$

Not available

535 08 76-01

Husqvarna 535087601

RP WHEEL, FRONT
(Superseded to 575231701)

$

$

Not available

535 09 07-01

Husqvarna 535090701

BEAM, FRONT AXLE
(Superseded to 535103101)

$

$

Not available

732 25 12-01

Husqvarna 732251201

NUT M4
(Superseded to 588222101)

$3.99

$

Usually ships in 3-10 days

0

535 09 18-01

Husqvarna 535091801

WASHER

$

$

Not available

535 09 15-01

Husqvarna 535091501

DAMPER, LOWER

$

$

Not available

535 04 95-05

Husqvarna 535049505

SCREW, TOWER-RECTIFIER

$

$

Not available
