G1 - Husqvarna Automower Robotic Lawn Mower (1998-2003) COVER 3 Parts Diagram

Automower Robotic Lawn Mower

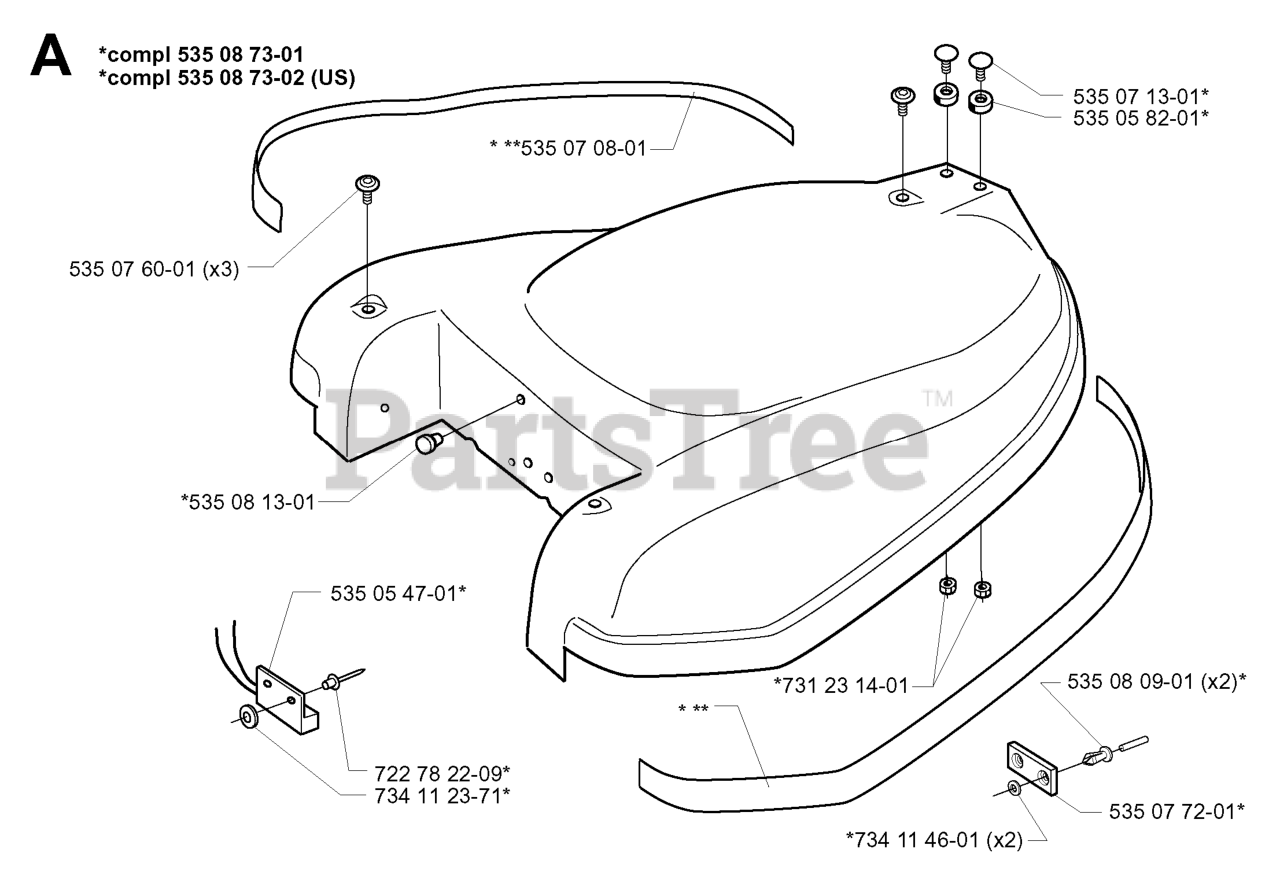

COVER 3 Parts Diagram

  • Title

535 05 47-01

Husqvarna 535054701

SWITCH MAGNETIC REED

$

$

Not available

535 07 72-01

Husqvarna 535077201

RAIL

$

$

Not available

535 08 73-01

Husqvarna 535087301

COVER

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 8

0

722 78 22-09

Husqvarna 722782209

RIVET POP

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

535 08 09-01

Husqvarna 535080901

RIVET

$

$

Not available

535 07 08-01

Husqvarna 535070801

BODY STRIP SET

$

$

Not available

535 07 13-01

Husqvarna 535071301

CHARGE CONTACT BOLT

$

$

Not available

535 07 60-01

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

535 08 73-02

Husqvarna 535087302

BODY ASSEMBLY, US
(Superseded to 535097702)

Note: US

$

$

Not available

535 08 13-01

Husqvarna 535081301

BUMPER

$

$

Not available

734 11 23-71

Husqvarna 734112371

WASHER

$

$

Not available

535 05 82-01

Husqvarna 535058201

INSULATOR CHARGE CONTACT

$

$

Not available
