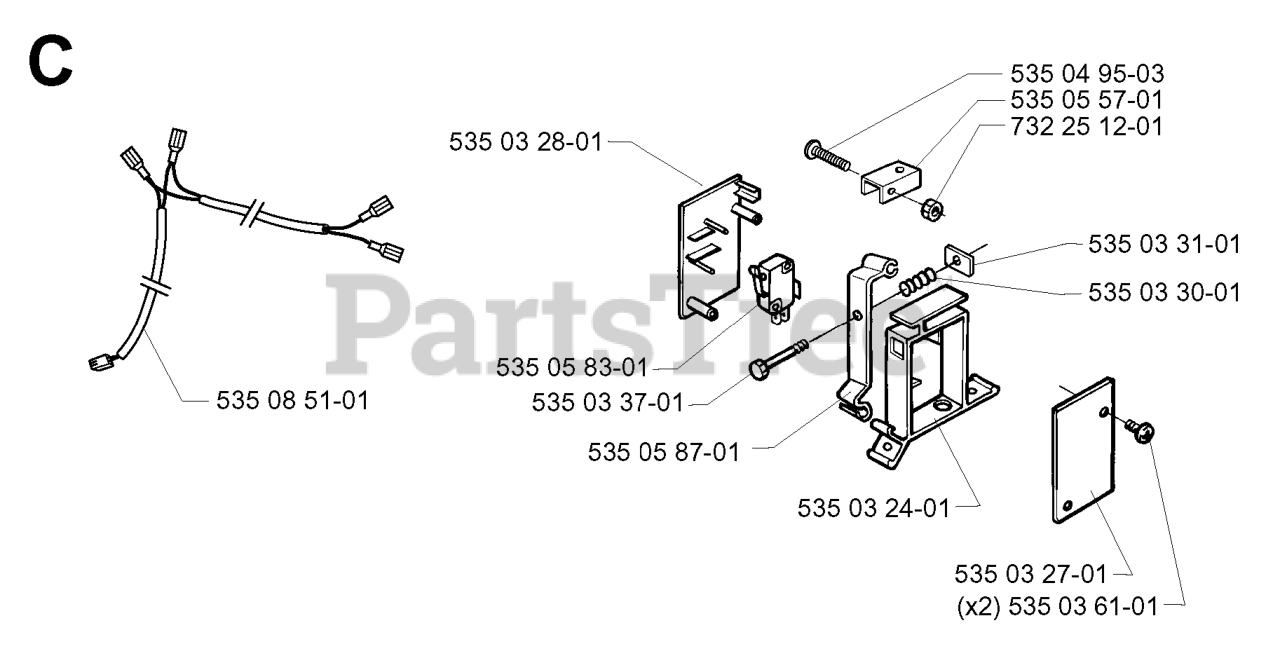

G1 - Husqvarna Automower Robotic Lawn Mower (1998-2003) COLLISION TOWER 3 Parts Diagram

Automower Robotic Lawn Mower

COLLISION TOWER 3 Parts Diagram

  • Title

535 03 27-01

Husqvarna 535032701

COVER COLLISION TOWER

$

$

Not available

535 05 83-01

Husqvarna 535058301

MICRO SWITCH COLLISION

$

$

Not available

535 03 31-01

Husqvarna 535033101

NUT COLLISION TOWER

$

$

Not available

535 03 24-01

Husqvarna 535032401

TOWER COLLISION NLA

$

$

Not available

732 25 12-01

Husqvarna 732251201

NUT M4
(Superseded to 588222101)

$3.99

$

Usually ships in 3-10 days

0

535 05 87-01

Husqvarna 535058701

LEVER COLLISION ACTUATOR

$

$

Not available

535 03 37-01

Husqvarna 535033701

BOLT COLLISION TOWER

$

$

Not available

535 08 51-01

Husqvarna 535085101

HARNESS, COLLISION SENSOR

$

$

Not available

535 03 28-01

Husqvarna 535032801

COVER COLLISION TOWER

$

$

Not available

535 05 57-01

Husqvarna 535055701

PLATE BODY ATTACHMENT

$

$

Not available

535 04 95-03

Husqvarna 535049503

BOLT COLLISION TOWER

$

$

Not available

535 03 61-01

Husqvarna 535036101

SCREW

$

$

Not available

535 03 30-01

Husqvarna 535033001

SPRING COLLISION TOWER

$

$

Not available
