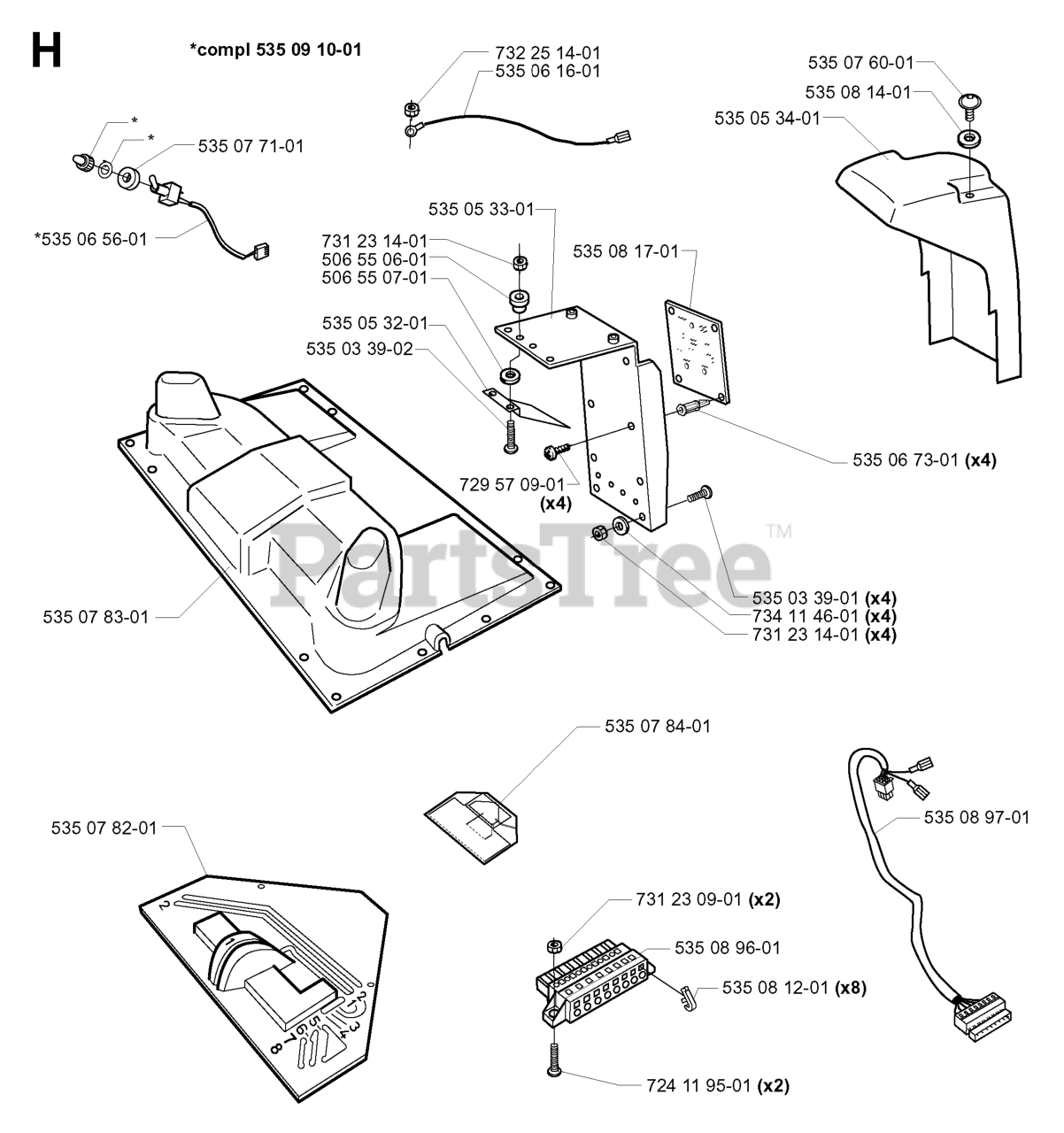

G1 - Husqvarna Automower Robotic Lawn Mower (1998-2003) CHARGING STATION 3 Parts Diagram

Automower Robotic Lawn Mower

CHARGING STATION 3 Parts Diagram

  • Title

535 08 14-01

Husqvarna 535081401

WASHER INSULATOR

$

$

Not available

535 06 56-01

Husqvarna 535065601

SWITCH

$

$

Not available

535 07 71-01

Husqvarna 535077101

SPACER SWITCH

$

$

Not available

535 07 82-01

Husqvarna 535078201

BASE

$

$

Not available

535 08 12-01

Husqvarna 535081201

ARM TERMINAL RELEASE

$

$

Not available

535 07 84-01

Husqvarna 535078401

DECAL CHARGE BASE

$

$

Not available

506 55 07-01

Husqvarna 506550701

SPACER

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 8

0

506 55 06-01

Husqvarna 506550601

SPACER

$5.99

$

In Stock, only 1 left!

0

535 03 39-02

Husqvarna 535033902

SCREW LEAF

$

$

Not available

535 05 32-01

Husqvarna 535053201

LEAF CHARGE PLATE

$

$

Not available

535 08 96-01

Husqvarna 535089601

CONNECTOR, BASE

$

$

Not available

535 08 17-01

Husqvarna 535081701

CONTROL BOARD, CHARGE STATION
(Superseded to 535103601)

$

$

Not available

732 25 14-01

Husqvarna 732251401

LOCK NUT

$3.49

$

Usually ships in 3-10 days

0

535 07 83-01

Husqvarna 535078301

COVER CHARGE STATION

$

$

Not available

724 11 95-01

Husqvarna 724119501

Screw

$

$

Not available

729 57 09-01

Husqvarna 729570901

Screw

$

$

Not available

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 8

0

535 05 34-01

Husqvarna 535053401

COVER CHARGE TOWER

$

$

Not available

535 03 39-01

Husqvarna 535033901

SCREW

$

$

Not available

535 06 16-01

Husqvarna 535061601

WIRE CHARGE STATION

$

$

Not available

535 08 97-01

Husqvarna 535089701

HARNESS, CHARGE STATION

$

$

Not available

535 09 10-01

Husqvarna 535091001

USE 953 51 09 01

$

$

Not available

535 05 33-01

Husqvarna 535053301

TOWER CHARGE STATION

$

$

Not available

535 07 60-01

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

535 06 73-01

Husqvarna 535067301

STANDOFFS CONTROL CARD

$

$

Not available

731 23 09-01

Husqvarna 731230901

Locknut

$

$

Not available
