G1 - Husqvarna Automower Robotic Lawn Mower (1998-2003) BLADE MOTOR & CUTTING EQUIPMENT 6 Parts Diagram

Automower Robotic Lawn Mower

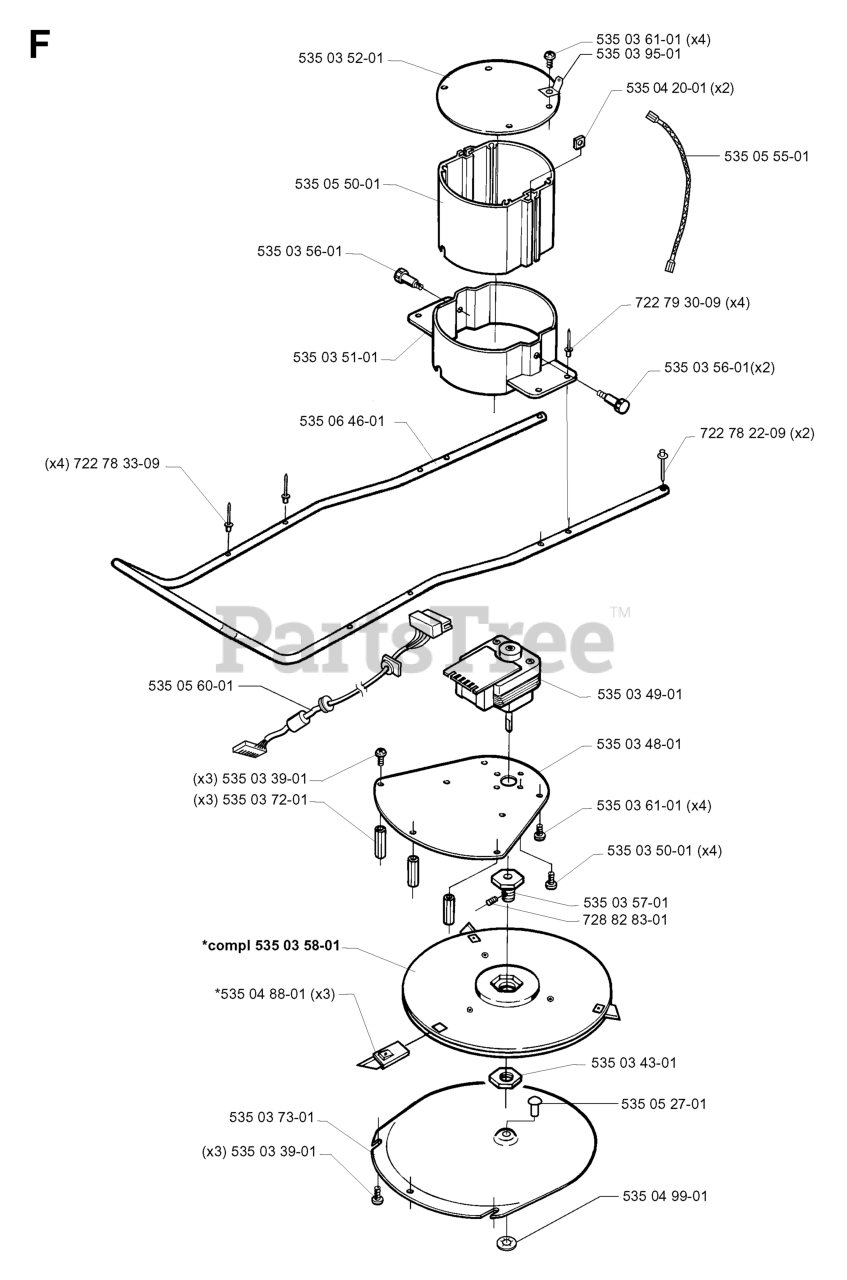

BLADE MOTOR & CUTTING EQUIPMENT 6 Parts Diagram

  • Title

535 05 55-01

Husqvarna 535055501

GROUND

$

$

Not available

535 04 99-01

Husqvarna 535049901

NEEDS DESCRIPTION

$

$

Currently unavailable

535 05 60-01

Husqvarna 535056001

HARNESS

$

$

Not available

535 03 58-01

Husqvarna 535035801

DISC, CUTTING
(Superseded to 535098602)

$

$

Not available

535 03 39-01

Husqvarna 535033901

SCREW

$

$

Not available

535 03 61-01

Husqvarna 535036101

SCREW

$

$

Not available

535 04 88-01

Husqvarna 535048801

CUTTING BLADE (SET 3)

$

$

Not available

535 03 43-01

Husqvarna 535034301

NUT

$

$

Not available

535 03 72-01

Husqvarna 535037201

SPACER

$

$

Not available

535 03 73-01

Husqvarna 535037301

PLATE

$

$

Not available

535 03 50-01

Husqvarna 535035001

SCREW, MOTOR

$

$

Not available

722 78 22-09

Husqvarna 722782209

RIVET POP

$

$

Not available

722 78 33-09

Husqvarna 722783309

RIVET POP

$9.49

$

Usually ships in 3-10 days

0

535 03 56-01

Husqvarna 535035601

BOLT HEIGHT ADJUSTMENT

$

$

Not available

535 04 20-01

Husqvarna 535042001

NUT HEIGHT ADJUSTMENT

$

$

Not available

535 03 56-01

Husqvarna 535035601

BOLT HEIGHT ADJUSTMENT

$

$

Not available

722 79 30-09

Husqvarna 722793009

RIVET POP

$

$

Not available

535 03 51-01

Husqvarna 535035101

MOUNT CUTTING MOTOR

$

$

Not available

535 05 27-01

Husqvarna 535052701

NEEDS DESCRIPTION

$

$

Currently unavailable

535 05 50-01

Husqvarna 535055001

HOUSING

$

$

Not available

535 03 48-01

Husqvarna 535034801

MOTOR PLATE

$

$

Not available

535 03 49-01

Husqvarna 535034901

MOTOR CUTTING

$

$

Not available

535 03 52-01

Husqvarna 535035201

COVER CUTTING MOTOR

$

$

Not available

535 03 95-01

Husqvarna 535039501

TERMINAL GROUND

$

$

Not available

728 82 83-01

Husqvarna 728828301

Setscrew Hub

$

$

Not available

535 06 46-01

Husqvarna 535064601

TUBE FRAME

$

$

Not available

535 03 57-01

Husqvarna 535035701

HUB

$

$

Not available
