G 621 AVS - RedMax Chainsaw (SN: 200101 - 330137) (2003-01) 028 - CARBURETOR/ACCESSORIES Parts Diagram

Chainsaw

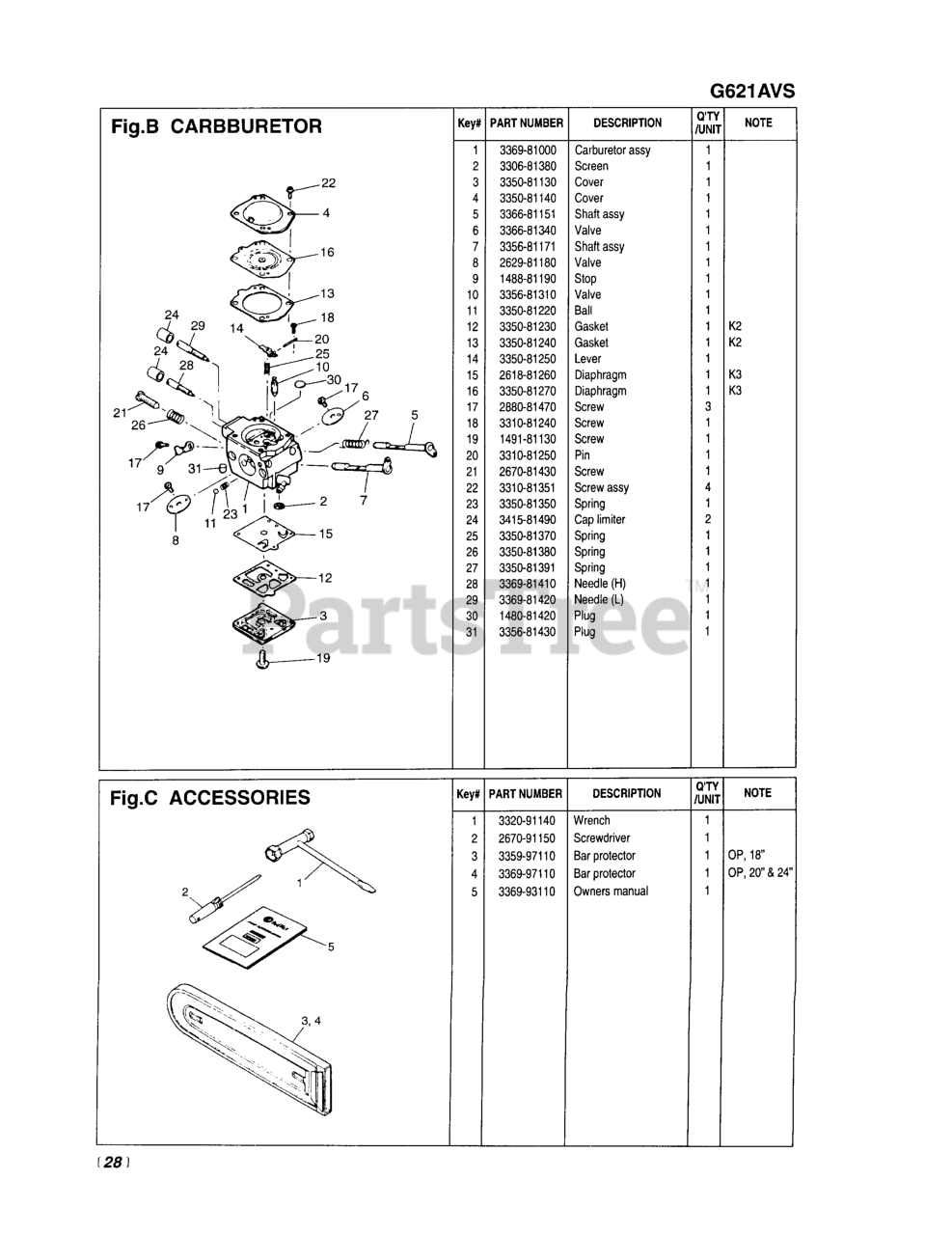

028 - CARBURETOR/ACCESSORIES Parts Diagram

  • Title
1

RedMax 336981000

CARBURETOR (HDA-212-1)

$

$

Not available

2

$1.22

$

Usually ships in 3-10 days

0

$14.48

$

Usually ships in 3-10 days

0

4

RedMax 335081140

DIAPHRAGM

$

$

Not available

$13.89

$

Usually ships in 3-10 days

0

6

RedMax 336681340

VALVE, THROTTLE

$3.28

$

Usually ships in 3-10 days

0

7

RedMax 335681171

CHOKE SHAFT A

$6.53

$

Usually ships in 3-10 days

0

$2.33

$

Usually ships in 3-10 days

0

$3.57

$

Usually ships in 3-10 days

0

10

RedMax 335681310

VALVE, INLET
(Superseded to 574024901)

$

$

Not available

11

RedMax 335081220

BALL, FRICTION
(Superseded to 521065501)

$8.99

$

Usually ships in 3-10 days

0

12

RedMax 335081230

KIT ONLY

$3.28

$

Usually ships in 3-10 days

0

13

RedMax 335081240

KIT ONLY

$2.12

$

Usually ships in 3-10 days

0

14

RedMax 335081250

KIT ONLY

$5.14

$

Usually ships in 3-10 days

0

15

RedMax 261881260

DIAPHRAGM

$16.95

$

Usually ships in 3-10 days

0

16

RedMax 335081270

KIT ONLY

$15.67

$

Usually ships in 3-10 days

0

17

RedMax 288081470

SCREW (RPLS 3310-81360)

$0.78

$

Usually ships in 3-10 days

0

18

$2.54

$

Usually ships in 3-10 days

0

19

RedMax 149181130

1488-81130
(Superseded to 148881130)

$1.97

$

Usually ships in 3-10 days

0

20

RedMax 331081250

PIN, METERING LEVER
(Superseded to 520977401)

$6.49

$

Usually ships in 3-10 days

0

21

$4.42

$

Usually ships in 3-10 days

0

22

RedMax 331081351

SCREW ASSEMBLY

$2.06

$

Usually ships in 3-10 days

0

23

RedMax 335081350

SPRING
(Superseded to 514243301)

$10.99

$

Usually ships in 3-10 days

0

24

RedMax 341581490

CAP, LIMITER

$5.33

$

Usually ships in 3-10 days

0

25

RedMax 335081370

KIT ONLY

$2.54

$

Usually ships in 3-10 days

0

26

RedMax 335081380

SPRING, IDLE

$3.03

$

Usually ships in 3-10 days

0

27

RedMax 335081391

SPRING, RETURN

$2.61

$

Usually ships in 3-10 days

0

28

RedMax 336981410

NEEDLE (H)

$9.30

$

Usually ships in 3-10 days

0

29

RedMax 336981420

NEEDLE (L)

$8.70

$

Usually ships in 3-10 days

0

30

RedMax 148081420

PLUG, WELSH

$2.25

$

Usually ships in 3-10 days

0

31

RedMax 335681430

PLUG, FRICTION

$1.71

$

Usually ships in 3-10 days

0

A1

RedMax 332091140

WRENCH, PLUG

$10.43

$

Usually ships in 3-10 days

0

A2

RedMax 267091150

SCREWDRIVER

$5.08

$

Usually ships in 3-10 days

0

A3

RedMax 335997110

3356-97110
(Superseded to 514253301)

$21.99

$

Usually ships in 3-10 days

0

A4

RedMax 336997110

PROTECTOR (USE 3665-97110)
(Superseded to 366597110)

$20.35

$

Usually ships in 3-10 days

0

A5

$

$

Not available
