G 621 AVS - RedMax Chainsaw (2007-12) 003 - POWER UNIT FIG 2 Parts Diagram

Chainsaw

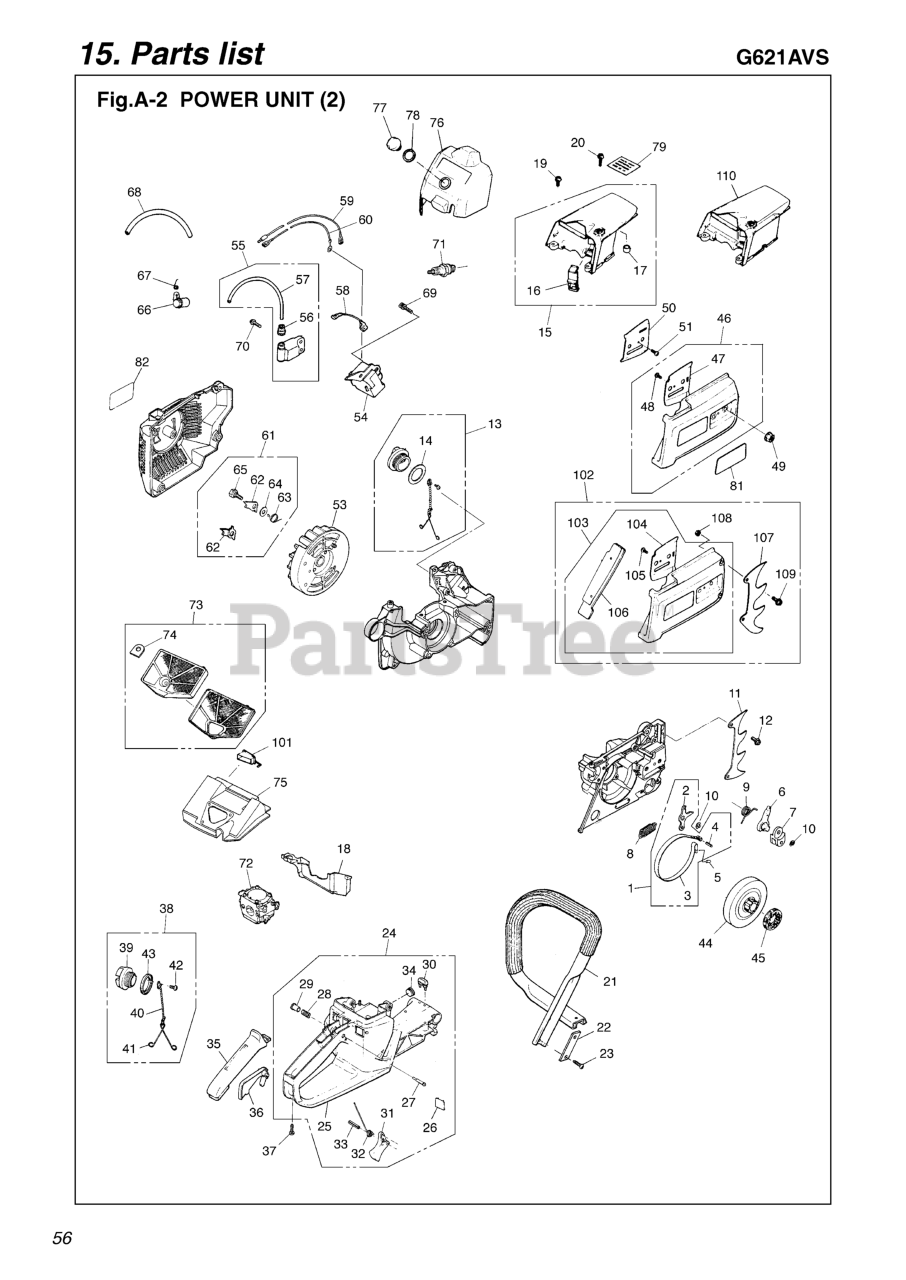

003 - POWER UNIT FIG 2 Parts Diagram

  • Title
1

RedMax 335624101

BRAKE BAND COMP
(Superseded to 521075001)

$24.99

$

Usually ships in 3-10 days

0

2

RedMax 335624111

BAND
(Superseded to 521075201)

$14.99

$

Usually ships in 3-10 days

0

3

RedMax 335624120

ARM
(Superseded to 514247101)

$9.99

$

Usually ships in 3-10 days

0

$0.31

$

Usually ships in 3-10 days

0

5

RedMax 335624140

ROLLER
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

6

RedMax 262224210

LEVER
(Superseded to 513571701)

$

$

Not available

7

RedMax 848C925431

STOPPER
(Superseded to 521585101)

$22.99

$

Usually ships in 3-10 days

0

8

RedMax 262224600

SPRING
(Superseded to 513572201)

$21.99

$

Usually ships in 3-10 days

0

9

RedMax 335624240

SPRING
(Superseded to 514247601)

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 030800060

SNAP RING

$0.07

$

Usually ships in 3-10 days

0

11

RedMax 262325310

SPIKE
(Superseded to 516759101)

$

$

Not available

12

RedMax 261625320

SCREW
(Superseded to 513558901)

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 335626100

CAP ASSY
(Superseded to 514247901)

$15.99

$

Usually ships in 3-10 days

0

14

RedMax 331757220

GASKET
(Superseded to 520993301)

$

$

Not available

15

RedMax 848C903114

COVER COMP.
(Superseded to 521583801)

$27.99

$

Usually ships in 3-10 days

0

16

RedMax 335631120

CAP
(Superseded to 514248101)

$2.49

$

Usually ships in 3-10 days

0

17

$1.31

$

Usually ships in 3-10 days

0

$6.19

$

Usually ships in 3-10 days

0

19

RedMax 026390514

SCREW
(Superseded to 516113101)

$2.23

$

Usually ships in 3-10 days

0

20

$0.25

$

Usually ships in 3-10 days

0

21

RedMax 262032100

LEFT HANDLE COMP
(Superseded to 516753301)

$

$

Not available

22

RedMax 285132180

PLATE
(Superseded to 516974701)

$2.49

$

Usually ships in 3-10 days

0

23

RedMax 8488251901

SCREW
(Superseded to 521518001)

$4.99

$

Usually ships in 3-10 days

0

24

RedMax 262233005

RIGHT HANDLE ASSY
(Superseded to 516756901)

$

$

Not available

25

RedMax 262233105

RIGHT HANDLE COMP
(Superseded to 516757401)

$

$

Not available

26

$1.31

$

Usually ships in 3-10 days

0

27

RedMax 333033250

STOPPER
(Superseded to 514212901)

$

$

Not available

28

RedMax 331033262

SPRING
(Superseded to 510815301)

$1.49

$

Usually ships in 3-10 days

0

29

RedMax 331033271

KNOB
(Superseded to 514178701)

$

$

Not available

30

RedMax 281033280

DAMPER (A)
(Superseded to 513700301)

$

$

Not available

31

RedMax 848C1033C3

LEVER
(Superseded to 521549901)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 335633321

SPRING
(Superseded to 510815401)

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 0402500524

PIN
(Superseded to 510815501)

$1.49

$

Usually ships in 3-10 days

0

34

RedMax 261633412

DAMPER (B)

$0.97

$

Usually ships in 3-10 days

0

35

$14.06

$

Usually ships in 3-10 days

0

36

RedMax 848C3033E3

ARM
(Superseded to 521556501)

$4.99

$

Usually ships in 3-10 days

0

37

RedMax 335632210

SCREW
(Superseded to 521078101)

$

$

Not available

38

RedMax 335034400

CAP ASSY
(Superseded to 514237001)

$10.99

$

Usually ships in 3-10 days

0

$

$

Not available

40

$2.71

$

Usually ships in 3-10 days

0

41

$

$

Not available

42

$0.15

$

Usually ships in 3-10 days

0

43

RedMax 335034450

GASKET
(Superseded to 521055701)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 335051110

DRUM
(Superseded to 521058001)

$

$

Not available

45

RedMax 336051120

SPROCKET

$

$

Not available

46

RedMax 335653003

CHAIN COVER ASSY
(Superseded to 521080801)

$34.99

$

Usually ships in 3-10 days

0

47

RedMax 335653220

PLATE
(Superseded to 521081101)

$

$

Not available

48

$0.15

$

Usually ships in 3-10 days

0

49

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

50

RedMax 335653210

PLATE
(Superseded to 514250201)

$

$

Not available

51

RedMax 026100410

SCREW
(Superseded to 510471701)

$3.99

$

Usually ships in 3-10 days

0

53

RedMax 261671112

ROTOR
(Superseded to 516743601)

$83.99

$

Usually ships in 3-10 days

0

54

RedMax 848C9071B1

SOURCE COIL
(Superseded to 521584301)

$96.99

$

Usually ships in 3-10 days

0

55

RedMax 261671301

IGNITION COIL COMP
(Superseded to 513563801)

$

$

Not available

56

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

$9.24

$

Usually ships in 3-10 days

0

58

RedMax 261671410

CORD
(Superseded to 513564101)

$

$

Not available

59

RedMax 261671420

CORD
(Superseded to 513564201)

$

$

Not available

$

$

Not available

61

RedMax 261871102

ROTOR COMP.
(Superseded to 516750601)

$

$

Not available

62

RedMax 336671120

RATCHET
(Superseded to 521098901)

$4.99

$

Usually ships in 3-10 days

0

63

RedMax 335071131

SPRING
(Superseded to 521061101)

$3.49

$

Usually ships in 3-10 days

0

64

$0.76

$

Usually ships in 3-10 days

0

65

RedMax 331071142

BOLT
(Superseded to 520972201)

$3.99

$

Usually ships in 3-10 days

0

$5.31

$

Usually ships in 3-10 days

0

67

RedMax 140072121

SPRING
(Superseded to 544260401)

$4.99

$

Usually ships in 3-10 days

0

$1.19

$

Usually ships in 3-10 days

0

69

RedMax 335015250

BOLT
(Superseded to 514234401)

$

$

Not available

70

$0.17

$

Usually ships in 3-10 days

0

71

RedMax 369990032

SPARK PLUG

$

$

Not available

72

RedMax 336981000

CARBURETOR

$

$

Not available

73

RedMax 848C918311

AIR CLEANER COMP
(Superseded to 521585001)

$72.99

$

Usually ships in 3-10 days

0

74

RedMax 848C9083C0

PLATE
(Superseded to 521584601)

$

$

Not available

75

RedMax 336983200

SILENCER

$18.68

$

Usually ships in 3-10 days

0

76

RedMax 262283302

COVER COMP
(Superseded to 516758101)

$31.99

$

Usually ships in 3-10 days

0

77

RedMax 335683322

KNOB
(Superseded to 513737301)

$6.49

$

Usually ships in 3-10 days

0

78

RedMax 338883340

GASKET
(Superseded to 514281501)

$

$

Not available

79

$1.42

$

Usually ships in 3-10 days

0

$

$

Not available

81

$1.73

$

Usually ships in 3-10 days

0

82

$1.21

$

Usually ships in 3-10 days

0

101

RedMax 261083220

CAP
(Superseded to 516734001)

$

$

Not available

102

RedMax 262306012

DOUBLE SPIKE KIT
(Superseded to 516758601)

$

$

Not available

103

RedMax 261853002

CHAIN COVER ASSY
(Superseded to 516750001)

$42.99

$

Usually ships in 3-10 days

0

104

RedMax 335653220

PLATE
(Superseded to 521081101)

$

$

Not available

105

RedMax 026100410

SCREW
(Superseded to 510471701)

$3.99

$

Usually ships in 3-10 days

0

106

RedMax 261653300

PROTECTOR

$10.13

$

Usually ships in 3-10 days

0

107

RedMax 261853510

SPIKE
(Superseded to 516750301)

$9.49

$

Usually ships in 3-10 days

0

108

RedMax 331053331

NUT
(Superseded to 514183901)

$4.99

$

In Stock, only 2 left!

0

109

RedMax 267014320

SCREW
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

110

RedMax 262631110

COVER
(Superseded to 516760501)

$46.99

$

Usually ships in 3-10 days

0
