G 62000 (85907) - Snapper 6,200 Watt Portable Generator, 11hp ALTERNATOR Parts Diagram

6,200 Watt Portable Generator, 11hp

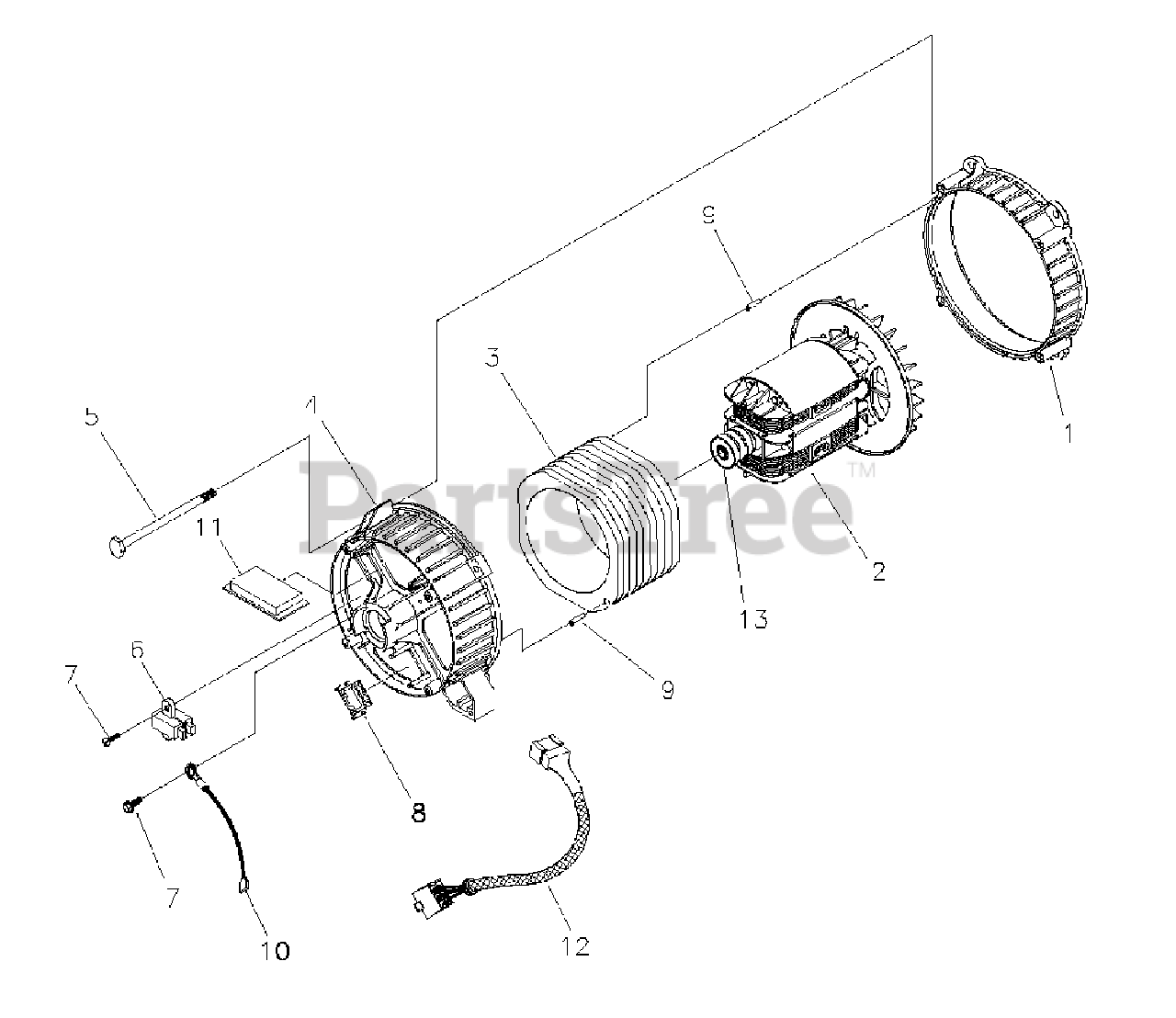

ALTERNATOR Parts Diagram

  • Title

1

Snapper 186059GS

ADAPTER, Mounting, Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

2

Snapper 191876GS

ROTOR

$315.99

$

Usually ships in 2-12 days

0

3

Snapper 194006AGS

STATOR

$524.99

$

Usually ships in 2-12 days

0

4

Snapper 186060GS

RBC, (with O-Ring, p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 86308HGS

HHCS, M6 - 1.0 x 140 SEMS

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 66386GS

ASSY, Holder, Brush

$23.99

$

In Stock, Qty 20+

0

7

Snapper 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 22694GS

RECEPTACLE, 6 pin

$5.99

$

In Stock, only 1 left!

0

9

Snapper 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 193428AGS

ASSY, Wire, Ground

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 189769GS

REGULATOR, Voltage, AVR
(Superseded to 205858GS)

$107.99

$

In Stock, Qty 18

0

12

Snapper 194274GS

HARNESS, Wire, Power

$

$

Not available

13

Snapper 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0
