G 56000 (030215-0) - Snapper 5,600 Watt Portable Generator, 10hp Main Unit (195611) Parts Diagram

5,600 Watt Portable Generator, 10hp

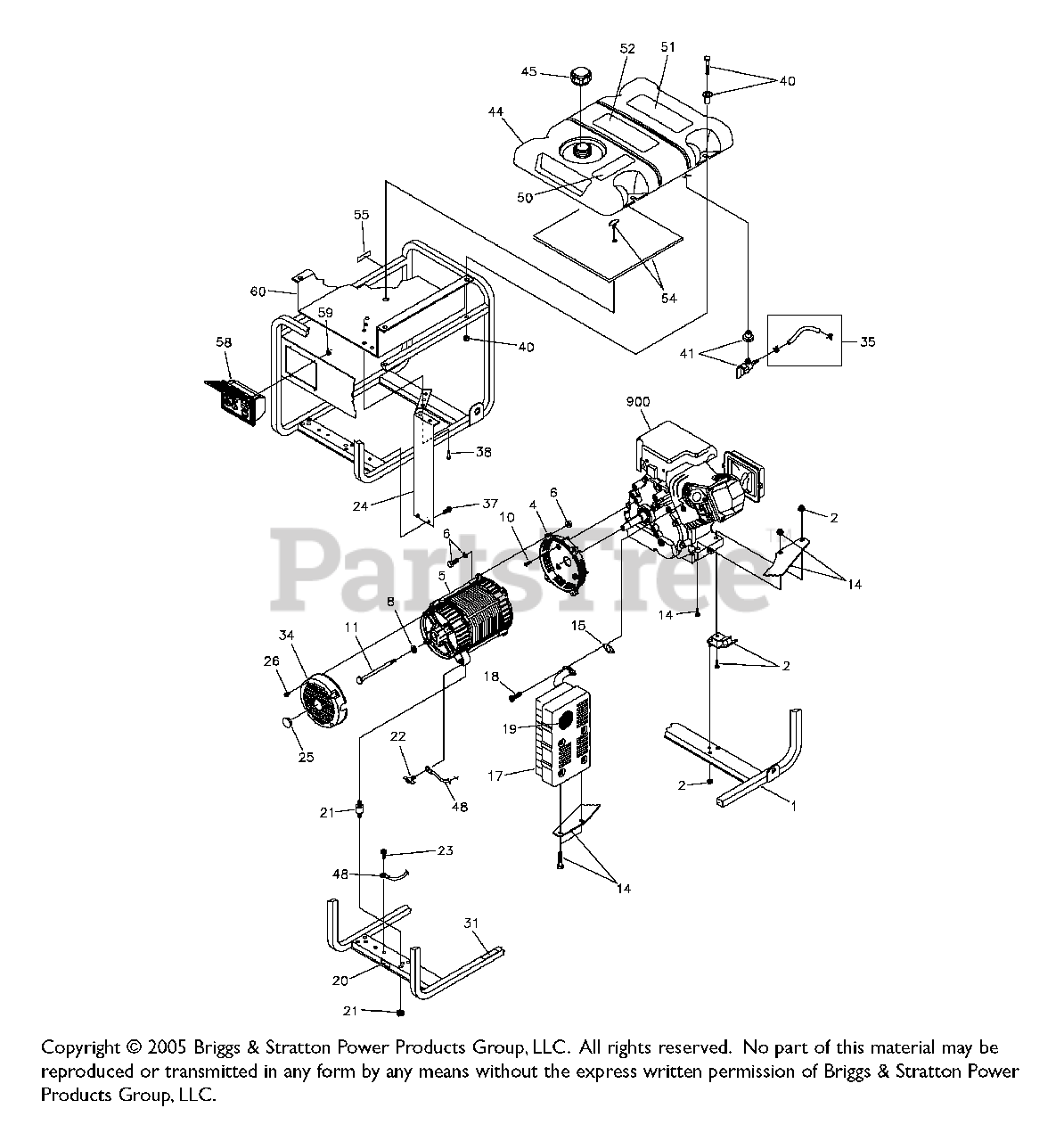

Main Unit (195611) Parts Diagram

  • Title

1

Snapper M189503GS

CRADLE

$118.99

$

Usually ships in 2-12 days

0

2

Snapper 194150GS

KIT,Vibration Mount 45°.

$13.99

$

In Stock, only 2 left!

0

4

Snapper 190220GS

HOUSING, Engine Adapter

$43.99

$

Usually ships in 2-12 days

0

5

Snapper ~NSP

ASSY,Alternator

Note: (see "Alternator")

$

$

Currently unavailable

6

Snapper 194151GS

KIT, Hardware Mounting Adapter

$22.99

$

Usually ships in 2-12 days

0

8

Snapper 96796GS

WASHER, M8 Flat

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 190274BGS

SBHCS, 3/8-16 x 1.0 Lg.

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 187365FGS

HHCS, 5/16-24 x 7-7/16

$17.99

$

Usually ships in 2-12 days

0

14

Snapper 194729GS

KIT, Muffler Bracket w/ Hardware

$11.99

$

Usually ships in 2-12 days

0

15

Snapper 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

17

Snapper 189008GS

MUFFLER

$

$

Not available

18

Snapper 60706GS

SCREW, 5/16 - 18 x 3/4"

$2.49

$

Usually ships in 2-12 days

0

19

Snapper 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Snapper B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

21

Snapper 194153GS

KIT,Vibration Mount

$11.99

$

In Stock, Qty 7

0

22

Snapper 86494GS

SCREW,Wing M6 1.0 x 16

$2.99

$

Usually ships in 2-12 days

0

23

Snapper 86292GS

SCREW, 10-16 x 3/4 Self Drill
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

24

Snapper 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Snapper 191190GS

CAP

$3.99

$

In Stock, only 1 left!

0

26

Snapper 74908GS

SCREW, M5-0.8 x 10,Taptite

$2.99

$

Usually ships in 2-12 days

0

31

Snapper 191436GS

DECAL, Hot Muffler

$8.49

$

Usually ships in 2-12 days

0

34

Snapper 195422GS

COVER, Bearing Carrier

$13.99

$

Usually ships in 2-12 days

0

35

Snapper 194265GS

KIT, Fuel Hose w/ Clamps
(Superseded to 791745)

$10.99

$

In Stock, Qty 20+

0

37

Snapper B2153GS

SCREW, 12-14 x 7/8 Self Drilling

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 56893GS

SCREW, 10-24 x 1/2 Crimptite

$3.49

$

In Stock, only 1 left!

0

40

Snapper 195477GS

KIT, Fuel Tank Hardware

$9.99

$

Usually ships in 2-12 days

0

41

Snapper 192980GS

KIT,Valve,Tank

$17.99

$

In Stock, Qty 20+

0

44

Snapper 194217GS

ASSY,Tank, Fuel

Note: (Includes Items 41, 50, 51 & 52)

$

$

Not available

45

Snapper 90878GS

CAP, Fuel Gauge

$

$

Not available

48

Snapper 195373GS

WIRE, Ground

$2.49

$

Usually ships in 2-12 days

0

50

Snapper 188333GS

DECAL, Gas Fill

$23.99

$

In Stock, only 1 left!

0

51

Snapper 194799GS

DECAL, Danger

$11.99

$

Usually ships in 2-12 days

0

52

Snapper 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

54

Snapper 194448GS

KIT, Insulation w/ Clip

$31.99

$

Usually ships in 2-12 days

0

55

Snapper 191435GS

DECAL, Fuel Shut-off

$8.49

$

Usually ships in 2-12 days

0

58

Snapper 190355GS

ASSY, Control Panel

Note: (see "Control Panel")

$

$

Not available

59

NUT, Palnut, 3/16"

Note: (Purchase locally)

$

$

Not available

60

Snapper 194389GS

SHIELD, Heat
(Superseded to 208564GS)

$133.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Snapper BB3061GS

BOTTLE, Oil

Note: Parts Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Snapper 195609GS

MANUAL, Owners

Note: Parts Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Snapper MS5242

MANUAL, Engine

Note: Parts Not Illustrated

$

$

Not available

Snapper 195706GS

KIT, Decals, SRV

Note: Parts Not Illustrated

$17.99

$

Usually ships in 2-12 days

0
