G 56000 (030215-0) - Snapper 5,600 Watt Portable Generator, 10hp Alternator (191171) Parts Diagram

5,600 Watt Portable Generator, 10hp

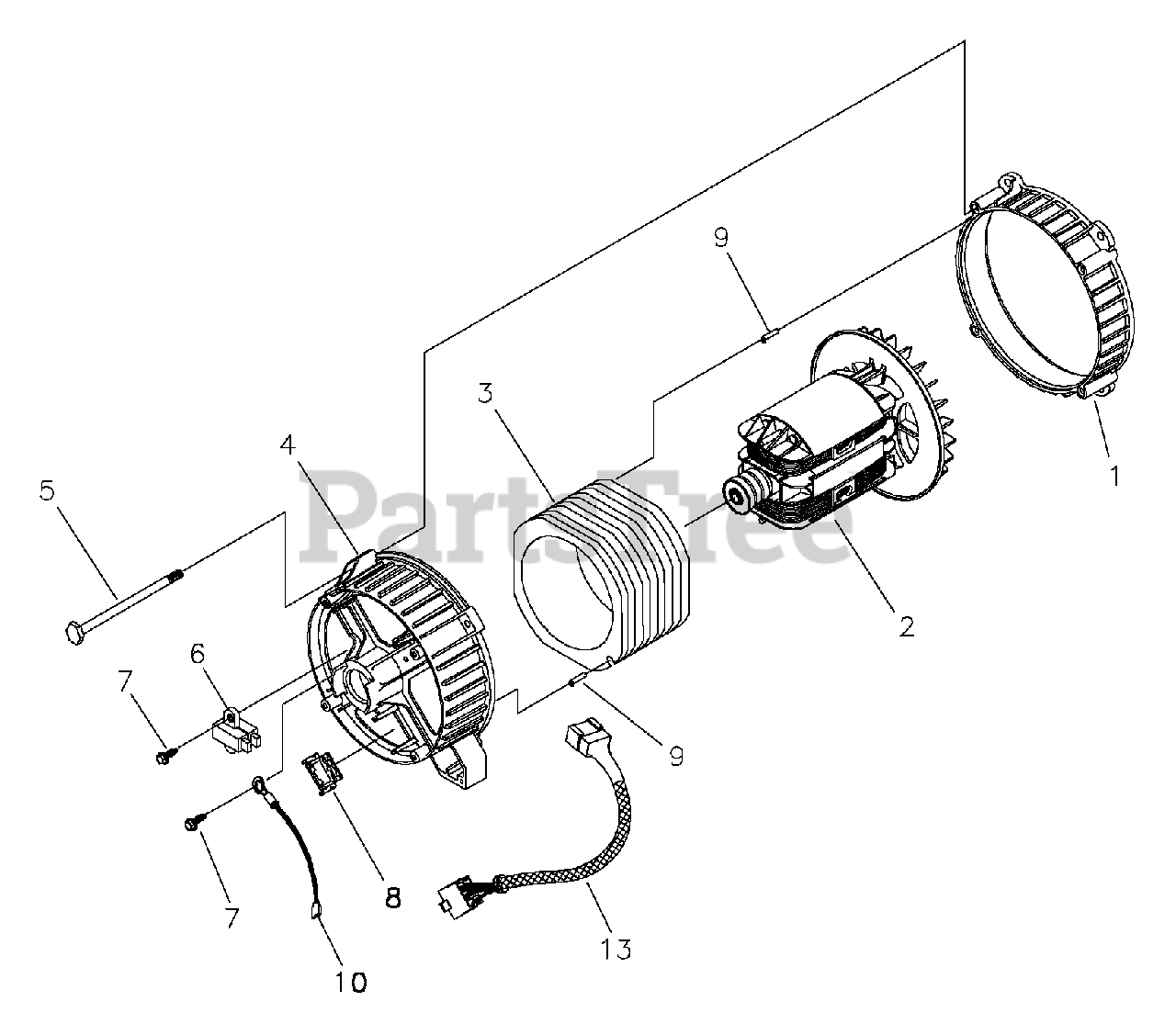

Alternator (191171) Parts Diagram

  • Title
1

Snapper 186059GS

ADAPTER, Mounting,Alternator
(Superseded to 209599GS)

$35.99

$

In Stock, only 1 left!

0

$426.99

$

In Stock, only 2 left!

0

$433.99

$

Usually ships in 2-12 days

0

4

Snapper 186060GS

RBC, with O-Ring (p/n 189197GS)
(Superseded to 193336GS)

$39.99

$

Usually ships in 2-12 days

0

5

Snapper 86308HGS

HHCS, M6 - 1.0 x 140 SEMS

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 91825GS

ASSY, Holder, Rectifier/Brush

$54.99

$

In Stock, Qty 7

0

7

Snapper 66849GS

TAPTITE, M5 - 0.8 x 16

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 22694GS

RECEPTACLE, 6 pin

$5.99

$

In Stock, only 1 left!

0

9

Snapper 81917GS

PIN, Roll, 4mm x 10

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 193428AGS

ASSY,Wire, Ground

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 194274GS

HARNESS,Wire, Power

$

$

Not available

--

Snapper 189197GS

O-RING, 1.375 N I.D. X .093 IN

$3.99

$

Usually ships in 2-12 days

0
