G 55000 (84747) - Snapper 5,500 Watt Portable Generator, 10hp GENERATOR MAIN UNIT Parts Diagram

5,500 Watt Portable Generator, 10hp

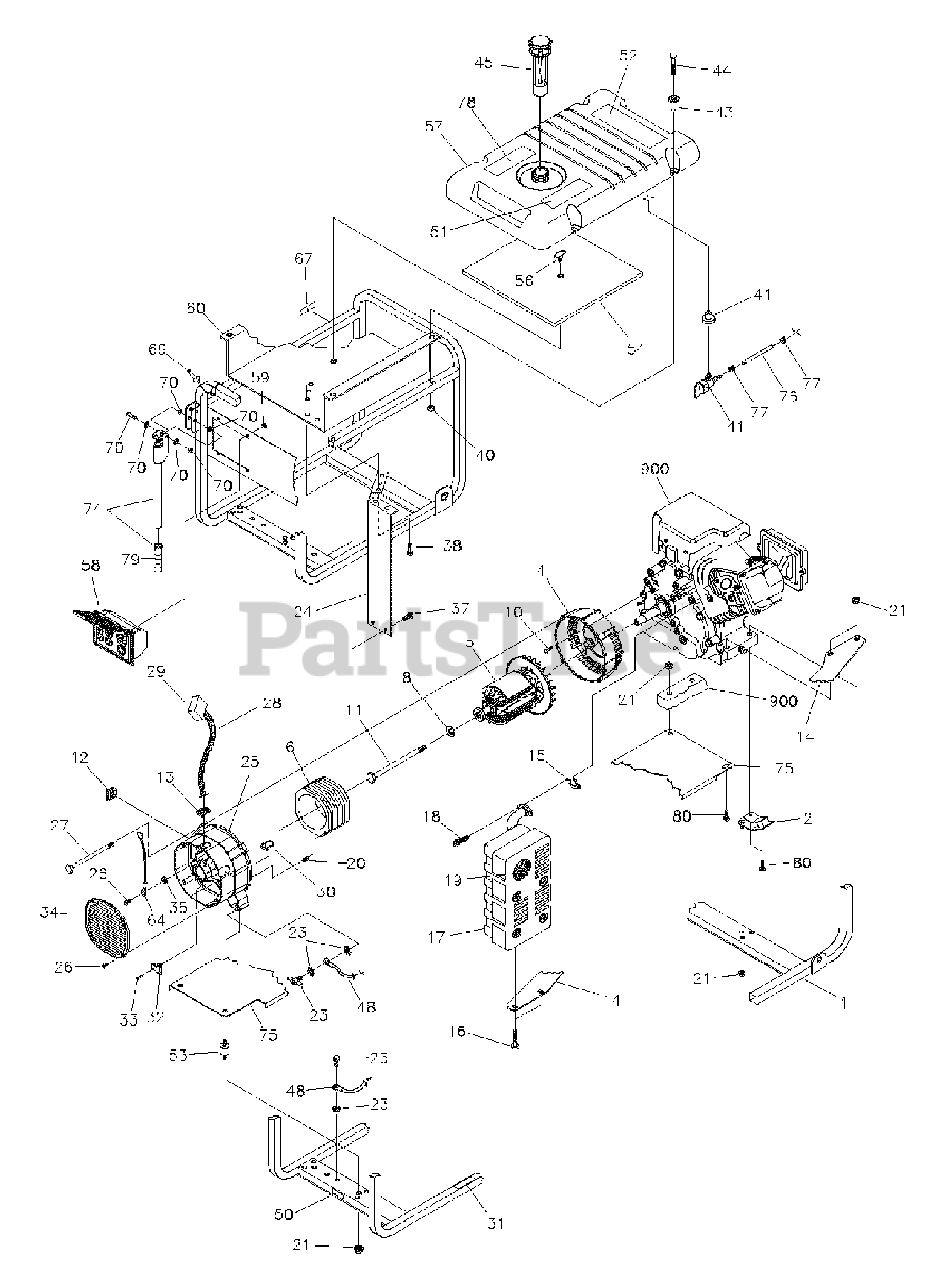

GENERATOR MAIN UNIT Parts Diagram

  • Title

1

Snapper M190305GS

CRADLE
(Superseded to 197464BNGS)

$533.99

$

Usually ships in 2-12 days

0

2

Snapper 70642GS

MOUNT, Vibration

$31.99

$

In Stock, only 2 left!

0

4

Snapper 66365GGS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Snapper 187746GS

ASSY, Rotor

$290.99

$

Usually ships in 2-12 days

0

6

Snapper 187745GS

ASSY, Stator

$

$

Not available

8

Snapper 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 86307GS

SCREW

$2.99

$

In Stock, only 3 left!

0

11

Snapper 99383GS

SCREW

$16.99

$

In Stock, only 1 left!

0

12

Snapper 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 189127GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Snapper 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

Snapper 66476GS

SCREW, w/Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 189008GS

MUFFLER

$

$

Not available

18

Snapper 60706GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

19

Snapper 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Snapper 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 67989GS

NUT

$3.49

$

In Stock, Qty 9

0

23

Snapper 193646GS

KIT, Grounding Hardware

$5.49

$

Usually ships in 2-12 days

0

24

Snapper 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Snapper SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Snapper 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Snapper 86308AGS

BOLT

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 22695GS

FASTEN, On Tab Housing 6P

$6.99

$

Usually ships in 2-12 days

0

30

Snapper 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 91825GS

ASSY, Brush Holder

$54.99

$

In Stock, Qty 7

0

33

Snapper 66849GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

34

Snapper B4871GS

COVER, Bearing Carrier

$

$

Not available

35

Snapper 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

37

Snapper B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

40

Snapper 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

41

Snapper 192980GS

KIT, Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

43

Snapper 83465GS

GROMMET, Tank

$3.99

$

In Stock, Qty 8

0

44

Snapper 78831BGS

SCREW

$

$

Not available

45

Snapper B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Snapper 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

50

Snapper B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

51

Snapper 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Snapper 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Snapper 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

54

Snapper 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

56

Snapper 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

57

Snapper 193500GS

ASSY, Tank, Fuel 7-Gallon

Note: (Includes Items 41, 51, 52 & 78)

$

$

Not available

58

Snapper 189157GS

ASSY, Control panel (see page 19)

$106.99

$

Usually ships in 2-12 days

0

59

Snapper 189164GS

NUT, Palnut

$3.99

$

Usually ships in 2-12 days

0

60

Snapper J92039GS

SHIELD, Heat

$

$

Not available

64

Snapper 189521AGS

WIRE, Ground, Panel

$4.99

$

Usually ships in 2-12 days

0

67

Snapper 73054GS

DECAL, Fuel Shut-off

$8.99

$

Usually ships in 2-12 days

0

69

Snapper B4135GS

PIN, with Lanyard

$

$

Not available

70

Snapper 194034GS

KIT, Fold Down Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

74

Snapper B193200GS

ASSY, Handle (Includes Item 79)

$39.99

$

In Stock, Qty 5

0

75

Snapper M190018GS

PLATE, Stiffener

$55.99

$

Usually ships in 2-12 days

0

76

Snapper 30340GS

HOSE, Fuel
(Superseded to 499742)

$

$

Not available

77

Snapper 48031CGS

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

78

Snapper 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

79

Snapper 189718GS

GRIP, Handle
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

80

Snapper 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

900

ENGINE, NSP

$

$

Not available

*

Snapper 190313GS

MANUAL, Owner's

$14.99

$

Usually ships in 2-12 days

0

*

Snapper BB3061GS

BOTTLE, Oil

$13.99

$

Usually ships in 2-12 days

0

*

Snapper 43438GS

PLUG, 250V, 30A

$26.99

$

Usually ships in 2-12 days

0

*

Snapper 275092GS

MANUAL, Engine
(Superseded to 276355)

$

$

Not available

*

Snapper B4177GS

CHARGER, Battery
(Superseded to 705927)

$38.99

$

In Stock, Qty 8

0

*

Snapper 193669GS

KIT, Decals

$49.99

$

Usually ships in 2-12 days

0
