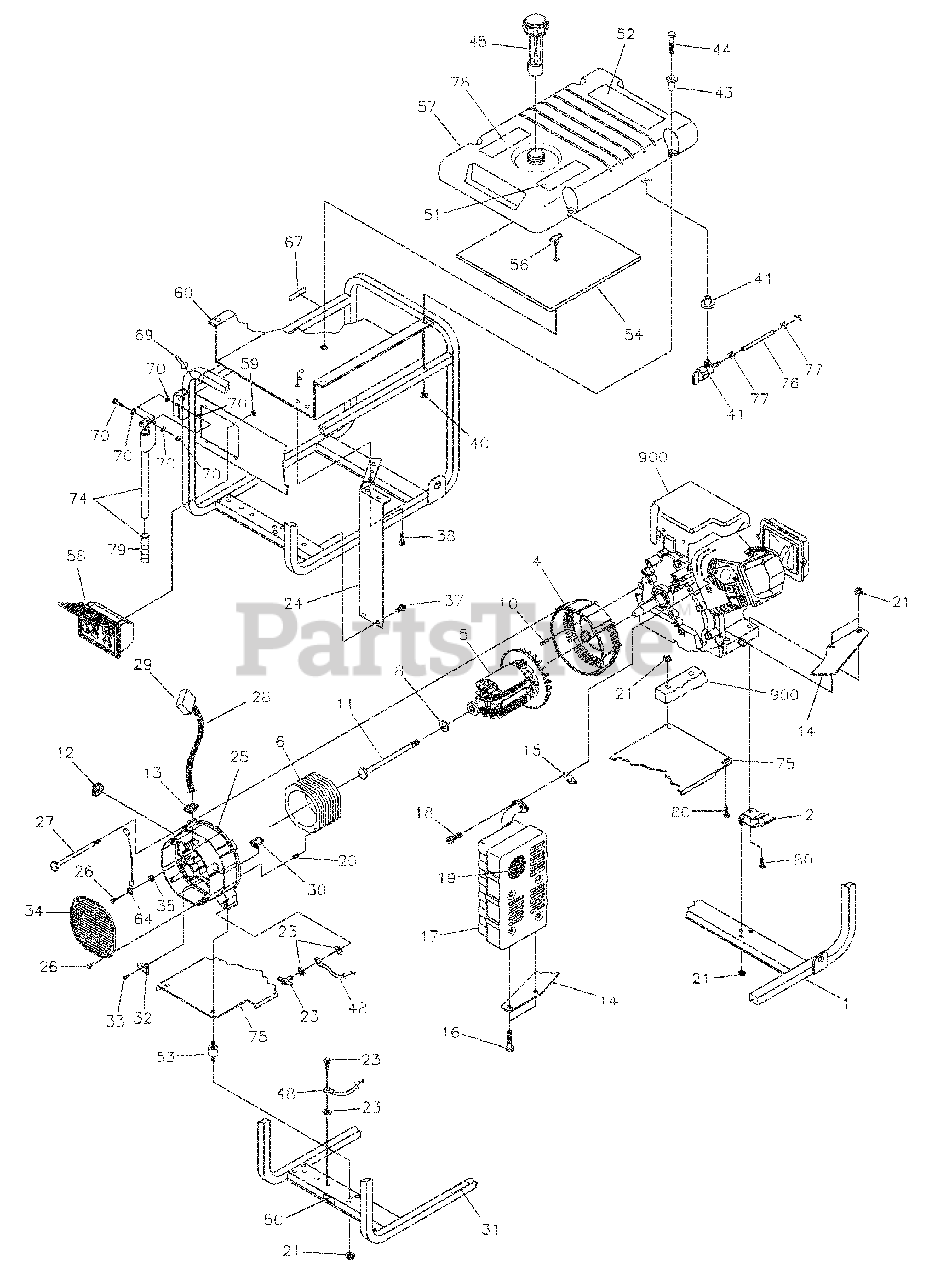

G 55000 (01668-0) - Snapper 5,500 Watt Portable Generator, 10hp Main Unit Parts Diagram

5,500 Watt Portable Generator, 10hp

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M190305GS

CRADLE
(Superseded to 197464BNGS)

$533.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 70642GS

MOUNT,Vibration

$31.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 66365GGS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 187746GS

ASSY, Rotor

$290.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187745GS

ASSY, Stator

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

SCREW

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 99383GS

SCREW

$16.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 189127GS

GROMMET, Rubber

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 189009GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 695398

GASKET, Exhaust

$7.99

$

In Stock, Qty 8

0

16

Briggs & Stratton 66476GS

SCREW, w/Lock Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 189008GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 60706GS

SCREW

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 5

0

23

Briggs & Stratton 193646GS

KIT, Grounding Hardware

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 194390GS

SHIELD, Heat

$86.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308AGS

BOLT

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22695GS

FASTEN, On Tab Housing 6P

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 84242GS

GROMMET, Plastic

$4.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77816GS

DECAL, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91825GS

ASSY, Brush Holder

$54.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton 66849GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$

$

Not available

35

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 192980GS

KIT,Valve, Fuel Tank

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

45

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$41.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton B4986GS

DECAL, Ground, Green

$2.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 189235GS

DECAL, Start Instructions

$19.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85652GS

MOUNT,Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 5

0

54

Briggs & Stratton 92665GS

INSULATION

$16.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 193500GS

ASSY,Tank, Fuel 7-Gallon

Note: (Includes Items 41, 51, 52 & 78)

$

$

Not available

58

Briggs & Stratton 189157GS

ASSY, Control Panel

Note: (see "Control Panel")

$106.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 189164GS

NUT, Palnut

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton J92039GS

SHIELD, Heat

$

$

Not available

64

Briggs & Stratton 189521AGS

WIRE, Ground, Panel

$4.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 73054GS

DECAL, Fuel Shut-off

$8.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton B4135GS

PIN, with Lanyard

$

$

Not available

70

Briggs & Stratton 194034GS

KIT, Fold Down Handle Hardware

$10.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton B193200GS

ASSY, Handle

Note: (Includes Item 79)

$39.99

$

In Stock, Qty 5

0

75

Briggs & Stratton M190018GS

PLATE, Stiffener

$55.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 30340GS

HOSE, Fuel
(Superseded to 499742)

$77.99

$

In Stock, Qty 9

0

77

Briggs & Stratton 48031CGS

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 16

0

78

Briggs & Stratton 188333GS

DECAL, Instruction, Fuel Level

$23.99

$

In Stock, only 1 left!

0

79

Briggs & Stratton 189718GS

GRIP, Handle
(Superseded to 198669GS)

$8.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 190313GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061GS

BOTTLE, Oil

Note: Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 43438GS

PLUG, 250V, 30A

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 275092GS

MANUAL, Engine
(Superseded to 276355)

Note: Not Illustrated

$

$

Not available

Briggs & Stratton B4177GS

CHARGER, Battery
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, Qty 5

0

Briggs & Stratton 193669GS

KIT, Decals

Note: Not Illustrated

$49.99

$

Usually ships in 2-12 days

0
