G 5000 AVS - RedMax Chainsaw (SN: 300101 & Above) (2005-05) 006 - HANDLE Parts Diagram

Chainsaw

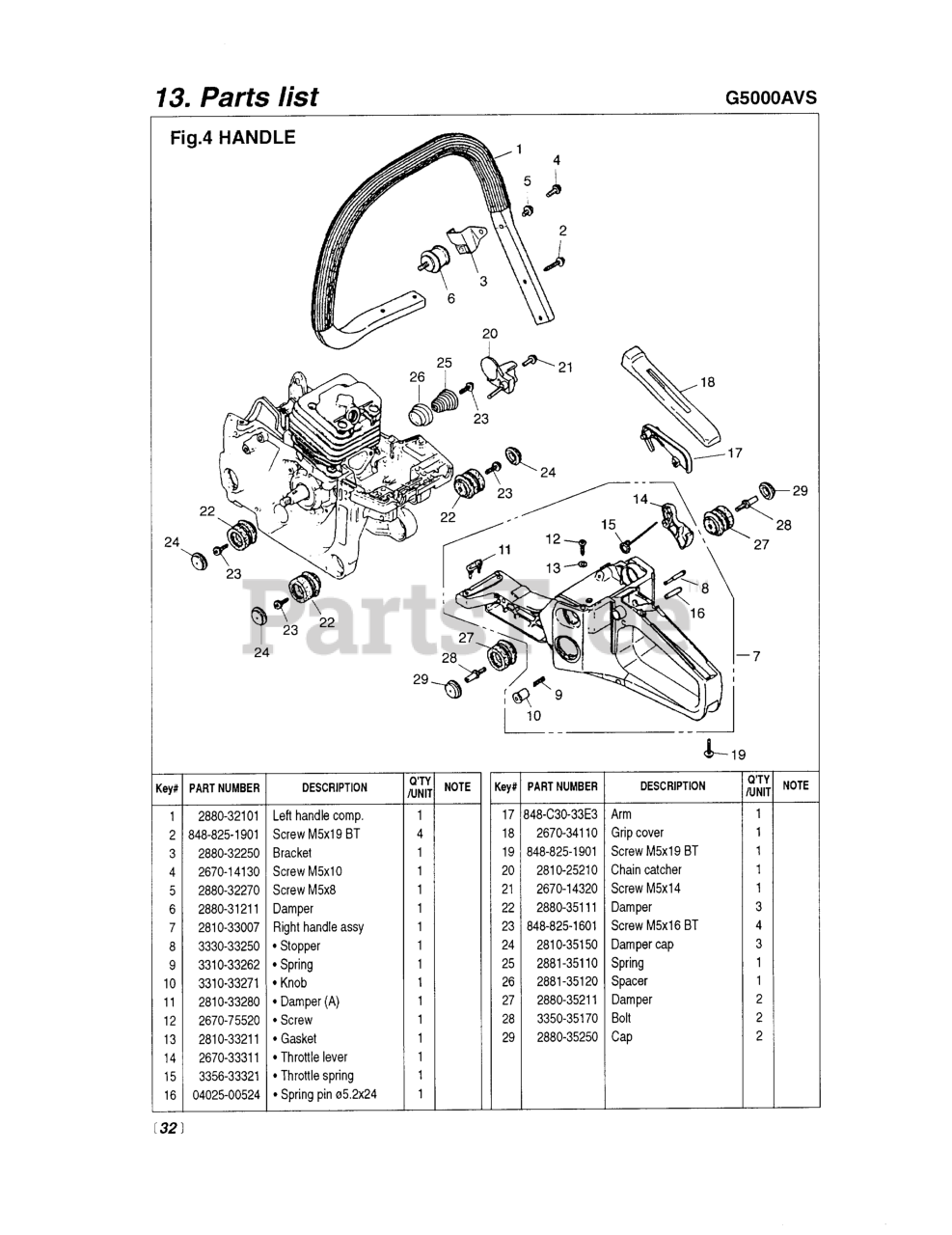

006 - HANDLE Parts Diagram

  • Title
1

RedMax 288032101

LEFT HANDLE COMPLETE
(Superseded to 516997001)

$84.99

$

Usually ships in 3-10 days

0

2

RedMax 8488251901

SCREW (RPLS. 2671-32110)
(Superseded to 521518001)

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 288032250

BRACKET
(Superseded to 516997101)

$

$

Not available

4

RedMax 267014130

SCREW
(Superseded to 516804801)

$

$

Not available

$0.55

$

Usually ships in 3-10 days

0

6

RedMax 288031211

DAMPER
(Superseded to 513943601)

$27.99

$

Usually ships in 3-10 days

0

7

RedMax 281033007

HANDLE ASSY (RPLS -33004)
(Superseded to 516912201)

$

$

Not available

8

RedMax 333033250

STOPPER
(Superseded to 514212901)

$

$

Not available

9

RedMax 331033262

50030077
(Superseded to 510815301)

$1.49

$

Usually ships in 3-10 days

0

10

RedMax 331033271

KNOB
(Superseded to 514178701)

$

$

Not available

11

RedMax 281033280

DAMPER (REPLACES 3356-33281)
(Superseded to 513700301)

$

$

Not available

12

$0.41

$

Usually ships in 3-10 days

0

13

$1.78

$

Usually ships in 3-10 days

0

14

RedMax 267033311

LEVER (RPLS-33310)
(Superseded to 516809702)

$

$

Not available

15

RedMax 335633321

SPRING
(Superseded to 510815401)

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 0402500524

50030081
(Superseded to 510815501)

$1.49

$

Usually ships in 3-10 days

0

17

RedMax 848C3033E3

ARM (REPLACES 3356-33352)
(Superseded to 521556501)

$4.99

$

Usually ships in 3-10 days

0

18

RedMax 267034110

COVER, GRIP

$3.94

$

Usually ships in 3-10 days

0

19

RedMax 8488251901

SCREW (RPLS. 2671-32110)
(Superseded to 521518001)

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 281025210

CATCHER, CHAIN (RPL 2670-25212
(Superseded to 516908301)

$9.99

$

Usually ships in 3-10 days

0

21

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 288035111

DAMPER
(Superseded to 513944601)

$10.99

$

Usually ships in 3-10 days

0

23

RedMax 8488251601

SCREW
(Superseded to 521517901)

$3.99

$

In Stock, only 3 left!

0

$

$

Not available

25

RedMax 288135110

SPRING
(Superseded to 513978301)

$15.99

$

Usually ships in 3-10 days

0

26

RedMax 288135120

SPACER
(Superseded to 513978401)

$

$

Not available

27

RedMax 288035211

DAMPER
(Superseded to 516997601)

$12.99

$

Usually ships in 3-10 days

0

$3.18

$

Usually ships in 3-10 days

0

29

RedMax 288035250

CAP
(Superseded to 513945101)

$3.49

$

Usually ships in 3-10 days

0
