G 5000 AVS - RedMax Chainsaw (SN: 300101 & Above) (2003-03) 035 - BREAKING SYSTEMS Parts Diagram

Chainsaw

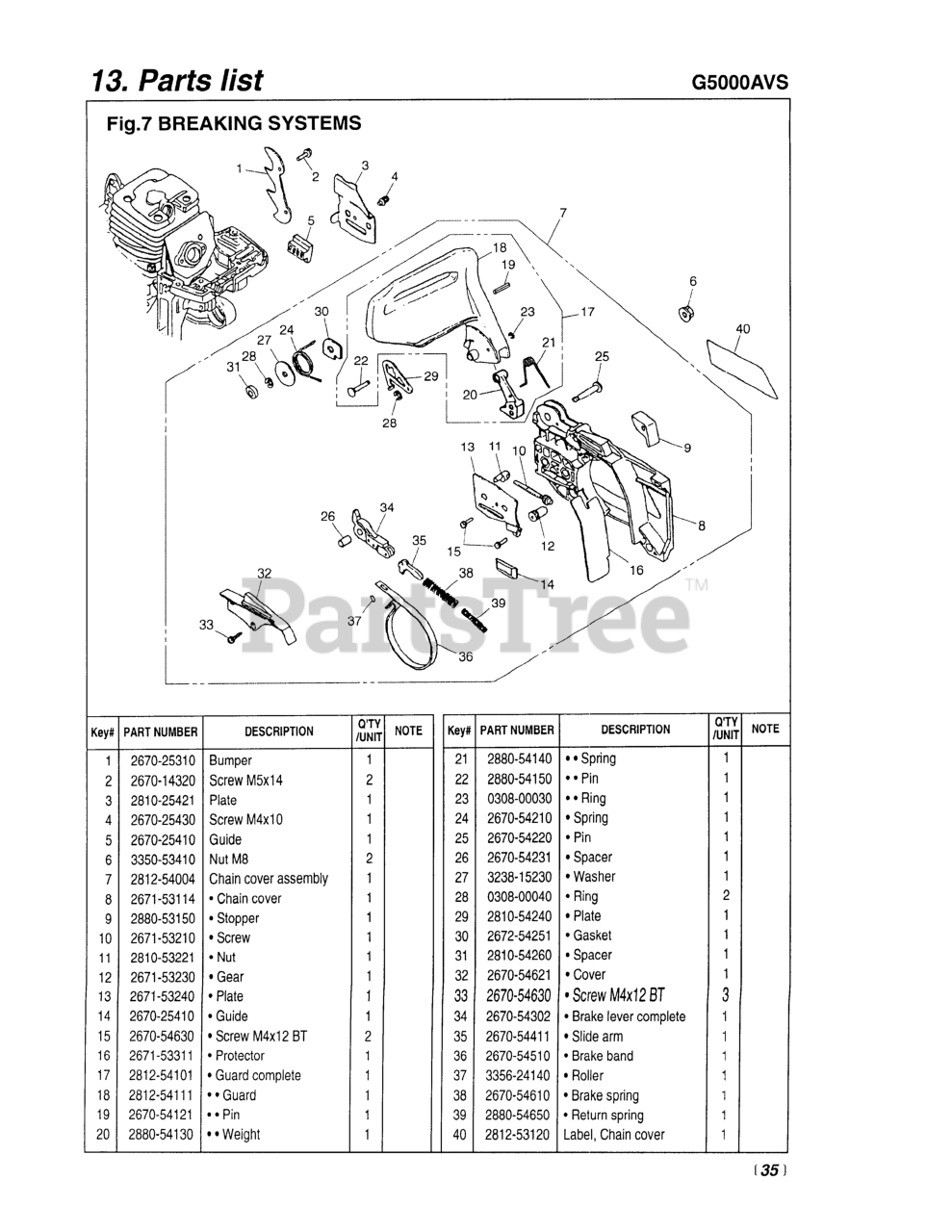

035 - BREAKING SYSTEMS Parts Diagram

  • Title
1

RedMax 267025310

SPIKE
(Superseded to 513618901)

$8.99

$

Usually ships in 3-10 days

0

2

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 281025421

PLATE (REPLACES 2670-25422)
(Superseded to 516908701)

$

$

Not available

$0.41

$

Usually ships in 3-10 days

0

5

RedMax 267025410

GUIDE, CHAIN
(Superseded to 513619001)

$

$

Not available

6

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

7

RedMax 281254004

CHAIN COVER ASSY (RPLS -54003)
(Superseded to 521582001)

$182.99

$

Usually ships in 3-10 days

0

8

RedMax 267153114

848-C80-53A5
(Superseded to 521579501)

$30.99

$

Usually ships in 3-10 days

0

9

RedMax 288053150

STOPPER
(Superseded to 516998701)

$

$

Not available

10

RedMax 267153210

SCREW
(Superseded to 513637701)

$21.99

$

Usually ships in 3-10 days

0

11

RedMax 281053221

NUT
(Superseded to 513701401)

$9.99

$

Usually ships in 3-10 days

0

12

RedMax 267153230

GEAR
(Superseded to 513637901)

$10.99

$

Usually ships in 3-10 days

0

13

$

$

Not available

14

RedMax 267025410

GUIDE, CHAIN
(Superseded to 513619001)

$

$

Not available

15

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 267153311

PROTECTOR
(Superseded to 513638301)

$

$

Not available

17

RedMax 281254101

GUARD COMPLETE
(Superseded to 521582101)

$

$

Not available

18

RedMax 281254111

GUARD (RPLS 2672-54110)

$19.64

$

Usually ships in 3-10 days

0

19

RedMax 267054121

PIN, STOPPER

$1.71

$

Usually ships in 3-10 days

0

20

RedMax 288054130

WEIGHT, ACTION

$

$

Not available

21

RedMax 288054140

848-C8E-54D1
(Superseded to 848C8E54D1)

$

$

Not available

22

RedMax 288054150

PIN, SPRING

$0.37

$

Usually ships in 3-10 days

0

23

RedMax 030800030

RING, SNAP, M3
(Superseded to 510490001)

$

$

Not available

24

RedMax 267054210

SPRING, RETURN
(Superseded to 513626301)

$

$

Not available

25

RedMax 267054220

PIN
(Superseded to 513626401)

$3.99

$

Usually ships in 3-10 days

0

26

$0.26

$

Usually ships in 3-10 days

0

27

RedMax 323815230

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

28

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

29

RedMax 281054240

PLATE (RPLS 2670-54241)
(Superseded to 513701501)

$21.99

$

Usually ships in 3-10 days

0

30

RedMax 267254251

GASKET (RPLS 2672-54250)
(Superseded to 513639401)

$3.99

$

Usually ships in 3-10 days

0

31

$0.83

$

Usually ships in 3-10 days

0

32

RedMax 267054621

COVER (REPLACES -54620)

$

$

Not available

33

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

34

RedMax 267054302

LEVER (REPLACES 2670-54301)

$4.90

$

Usually ships in 3-10 days

0

35

RedMax 267054411

ARM, SLIDE(RPLS 2670-54410)

$

$

Not available

36

RedMax 267054510

BAND, BRAKE

$5.23

$

Usually ships in 3-10 days

0

37

RedMax 335624140

PIN
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 267054610

SPRING, BRAKE (RPLS. 50030121)

$2.16

$

Usually ships in 3-10 days

0

39

$2.67

$

Usually ships in 3-10 days

0

40

RedMax 281253120

LABEL, CHAIN COVER
(Superseded to 513708501)

$

$

Not available
