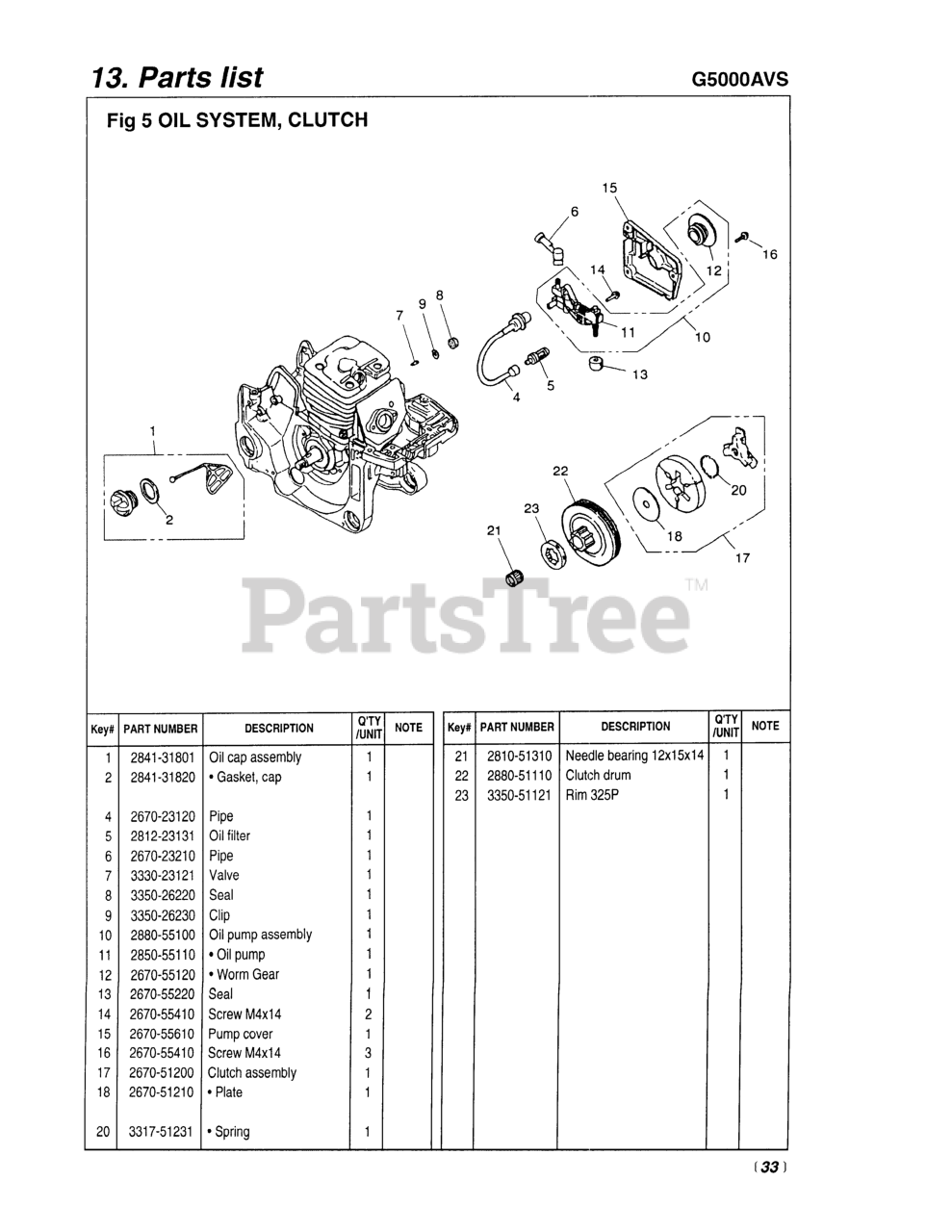

033 - OIL SYSTEM/CLUTCH Parts Diagram

  • Title
1

RedMax 284131801

CAP ASSY.
(Superseded to 510821401)

$

$

Not available

2

RedMax 284131820

GASKET
(Superseded to 516948501)

$4.99

$

Usually ships in 3-10 days

0

4

RedMax 267023120

PIPE, OIL
(Superseded to 516807901)

$9.99

$

In Stock, only 1 left!

0

5

$

$

Not available

6

RedMax 267023210

PIPE, OIL OUTLET

$

$

Not available

7

RedMax 333023121

VALVE (RPLS -23120)
(Superseded to 514210801)

$4.99

$

In Stock, only 1 left!

0

8

RedMax 335026220

SEAL, BREATHER
(Superseded to 521052501)

$4.99

$

In Stock, only 1 left!

0

9

RedMax 335026230

CLIP
(Superseded to 521052601)

$2.49

$

Usually ships in 3-10 days

0

10

RedMax 288055100

848-C80-6711
(Superseded to 848C806711)

$66.67

$

Usually ships in 3-10 days

0

11

RedMax 285055110

848-C60-67A1

$

$

Not available

12

RedMax 267055120

GEAR
(Superseded to 521586501)

$87.99

$

Usually ships in 3-10 days

0

13

RedMax 267055220

SEAL
(Superseded to 574005601)

$3.49

$

Usually ships in 3-10 days

0

14

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

15

RedMax 267055610

COVER, PUMP
(Superseded to 513628901)

$

$

Not available

16

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

17

RedMax 267051200

848-C80-5121
(Superseded to 521579301)

$78.99

$

In Stock, only 2 left!

0

18

RedMax 267051210

PLATE, THRUST
(Superseded to 516816801)

$4.99

$

In Stock, only 1 left!

0

20

RedMax 331751231

SPRING
(Superseded to 514197501)

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 281051310

BEARING (RPLS 2670-51310)
(Superseded to 513701201)

$12.99

$

Usually ships in 3-10 days

0

22

RedMax 288051110

DRUM, CLUTCH (RPLS 2670- )
(Superseded to 513956101)

$34.99

$

In Stock, only 1 left!

0

23

RedMax 335051121

RIM SPROCKET, .325, 7-TOOTH

$

$

Not available
