G 5000 AVS - RedMax Chainsaw (SN: 300101 & Above) (2003-03) 030 - FUELING SYSTEMS Parts Diagram

Chainsaw

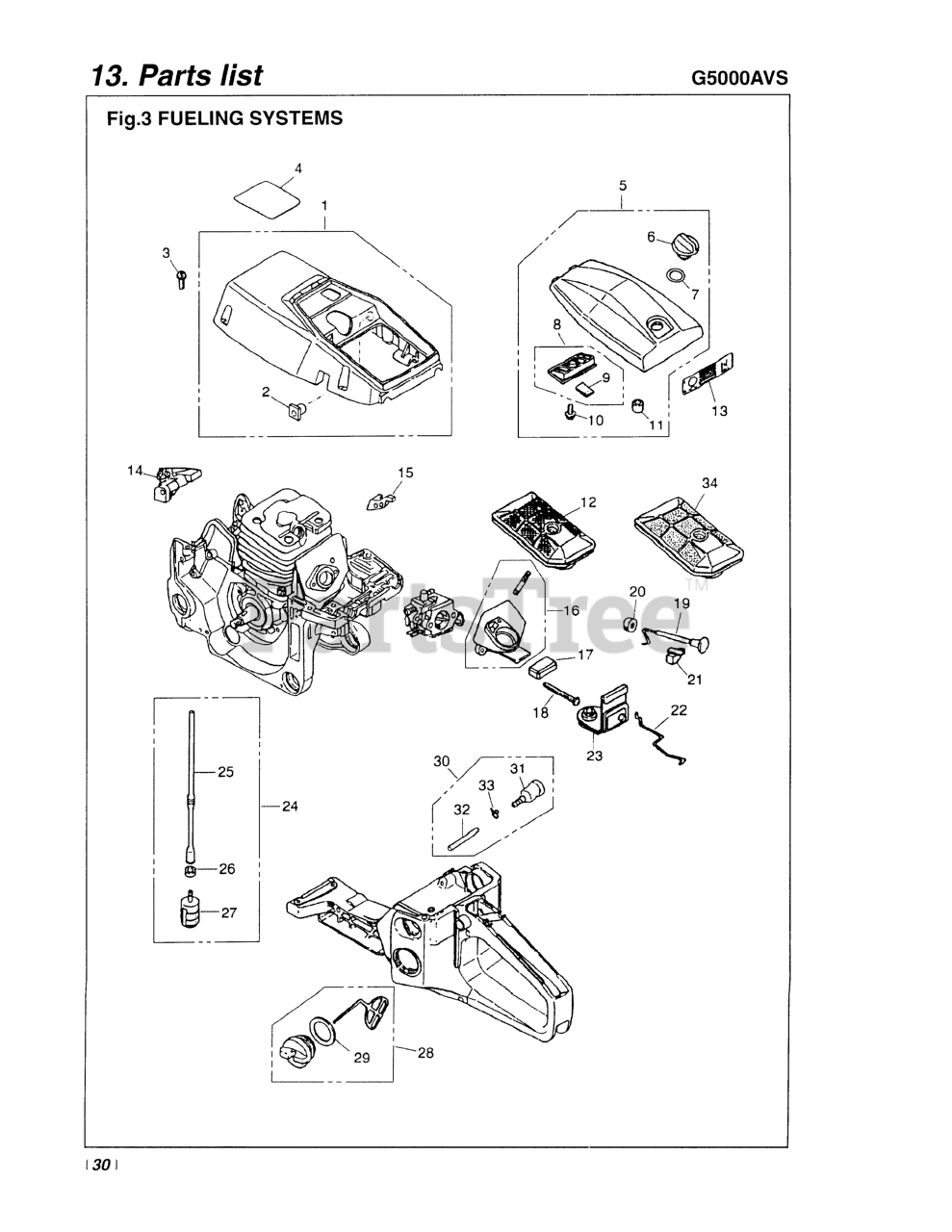

030 - FUELING SYSTEMS Parts Diagram

  • Title
1

RedMax 288031101

CYLINDER COVER

$20.61

$

Usually ships in 3-10 days

0

$

$

Not available

3

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

5

RedMax 281083305

COVER COMP (RPLS -83304)
(Superseded to 588800601)

$

$

Not available

6

RedMax 335683322

2841-83320
(Superseded to 513737301)

$6.49

$

Usually ships in 3-10 days

0

7

RedMax 338883340

GASKET, KNOB
(Superseded to 514281501)

$

$

Not available

8

RedMax 281083500

CLEANER COMP
(Superseded to 513705501)

$7.49

$

Usually ships in 3-10 days

0

$0.41

$

Usually ships in 3-10 days

0

10

RedMax 160033130

SCREW
(Superseded to 516385401)

$

$

Not available

11

$0.88

$

Usually ships in 3-10 days

0

12

RedMax 281083101

CLEANER, AIR
(Superseded to 513704801)

$30.99

$

Usually ships in 3-10 days

0

13

$0.65

$

Usually ships in 3-10 days

0

14

$2.42

$

Usually ships in 3-10 days

0

15

$2.42

$

Usually ships in 3-10 days

0

16

RedMax 288082102

MANIFOLD COMPLETE
(Superseded to 520760101)

$18.99

$

Usually ships in 3-10 days

0

17

RedMax 281082141

SUPPORTER

$1.89

$

Usually ships in 3-10 days

0

18

$1.93

$

Usually ships in 3-10 days

0

19

RedMax 288082410

ROD, CHOKE
(Superseded to 513976401)

$

$

Not available

20

$

$

Not available

21

RedMax 267082430

GUIDE
(Superseded to 516845501)

$

$

Not available

22

RedMax 288082511

ROD, THROTTLE
(Superseded to 520760801)

$

$

Not available

23

$0.89

$

Usually ships in 3-10 days

0

24

RedMax 281034303

848-C80-8534
(Superseded to 521580601)

$34.99

$

Usually ships in 3-10 days

0

25

RedMax 281034312

848-C80-85R3

$

$

Not available

26

$2.31

$

Usually ships in 3-10 days

0

27

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

28

RedMax 267034401

CAP ASSEMBLY
(Superseded to 579517901)

$9.49

$

Usually ships in 3-10 days

0

29

RedMax 267034430

GASKET
(Superseded to 579518001)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 267034500

BREATHER ASSEMBLY
(Superseded to 516811101)

$

$

Not available

31

RedMax 267034510

BREATHER (USE 2670-34500)

$

$

Not available

$0.57

$

Usually ships in 3-10 days

0

33

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

34

RedMax 281198501

CLEANER, AIR (FLOCKED)
(Superseded to 513706901)

$

$

Not available
