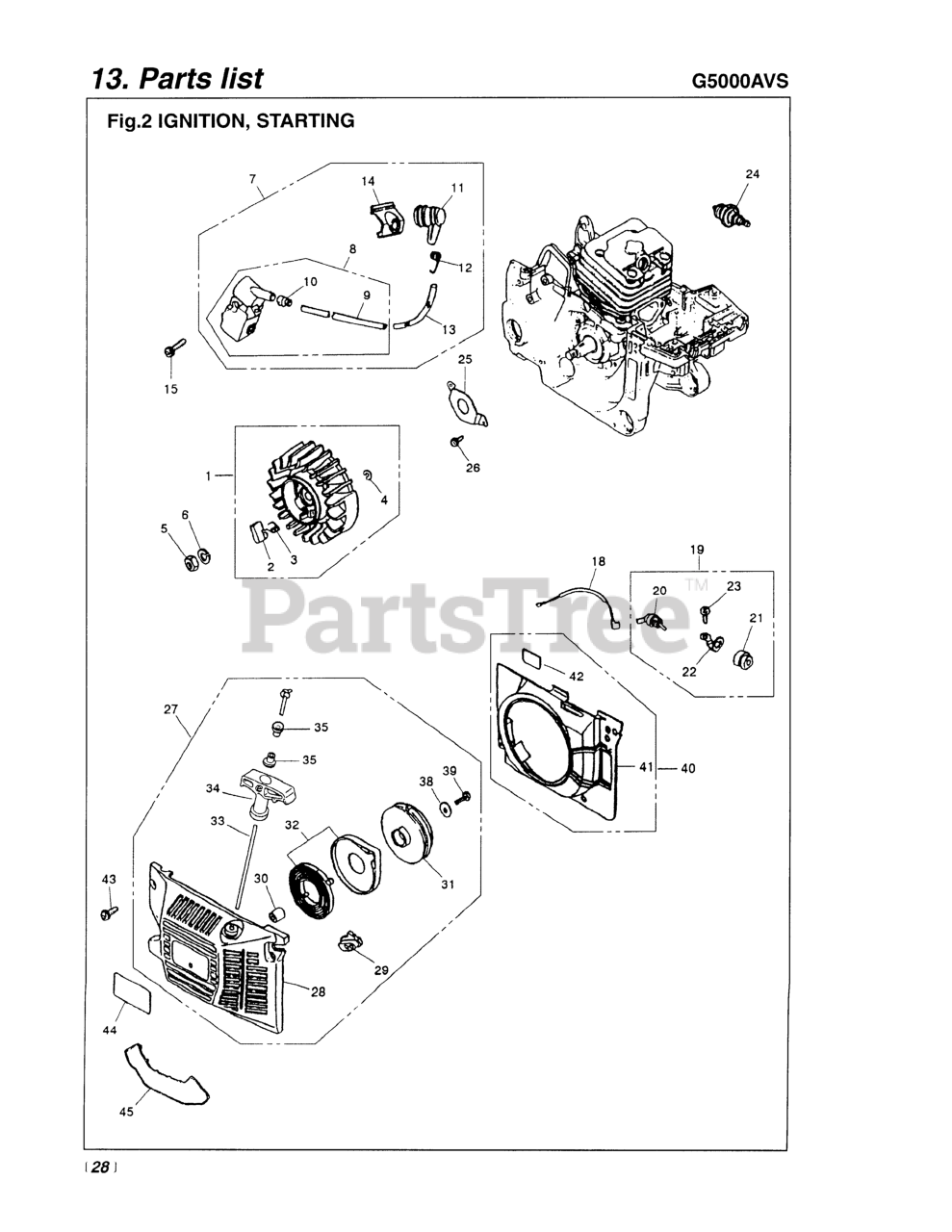

028 - IGNITION/STARTING Parts Diagram

  • Title

$

$

Not available

2

RedMax 185075220

1850-75221
(Superseded to 513417701)

$

$

Not available

3

RedMax 267071130

SPRING, RETURN
(Superseded to 516830401)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 335043231

NUT (RPLS -43230)

$0.41

$

Usually ships in 3-10 days

0

6

RedMax 029020820

WASHER, M8 x 20

$0.07

$

Usually ships in 3-10 days

0

7

RedMax 288071300

COIL ASSEMBLY
(Superseded to 520758001)

$182.99

$

Usually ships in 3-10 days

0

8

RedMax 281071204

COIL COMPLETE
(Superseded to 516918701)

$182.99

$

Usually ships in 3-10 days

0

9

RedMax 281071220

CORD, HI TENSION

$7.29

$

Usually ships in 3-10 days

0

10

$2.06

$

Usually ships in 3-10 days

0

11

RedMax 281072110

CAP, PLUG

$6.47

$

Usually ships in 3-10 days

0

12

RedMax 140072121

SPRING PLUG (RPLS 3310-71320)
(Superseded to 544260401)

$4.99

$

Usually ships in 3-10 days

0

$1.23

$

Usually ships in 3-10 days

0

14

$2.87

$

Usually ships in 3-10 days

0

15

$0.49

$

Usually ships in 3-10 days

0

$4.18

$

Usually ships in 3-10 days

0

19

RedMax 288071600

SWITCH ASSEMBLY
(Superseded to 520758101)

$

$

Not available

20

RedMax 281071610

SWITCH (REPLACES 2670-71612)
(Superseded to 516920801)

$

$

Not available

21

RedMax 267071621

COVER, SWITCH

$0.89

$

Usually ships in 3-10 days

0

22

RedMax 288071630

PLATE, EARTH

$3.03

$

Usually ships in 3-10 days

0

23

RedMax 267014130

SCREW
(Superseded to 516804801)

$

$

Not available

24

RedMax 560273110

3699-90419-10
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

25

$2.45

$

Usually ships in 3-10 days

0

26

RedMax 026030410

SCREW, M4 X 10

$0.07

$

Usually ships in 3-10 days

0

27

RedMax 288075003

STARTER ASSEMBLY
(Superseded to 520758601)

$103.99

$

Usually ships in 3-10 days

0

28

RedMax 281075110

CASE, RECOIL (RPLS 2670-75113)
(Superseded to 516921701)

$60.99

$

Usually ships in 3-10 days

0

29

$2.31

$

Usually ships in 3-10 days

0

$24.18

$

Usually ships in 3-10 days

0

31

RedMax 267075212

REEL (REPLACES -75211)
(Superseded to 516995201)

$

$

Not available

32

RedMax 331775300

SPRING COMP
(Superseded to 520994901)

$7.49

$

Usually ships in 3-10 days

0

33

RedMax 267075411

ROPE (RPLS -75410)

$

$

Not available

34

RedMax 140075170

KNOB
(Superseded to 502843201)

$11.99

$

Usually ships in 3-10 days

0

35

$0.32

$

Usually ships in 3-10 days

0

38

RedMax 140086280

WASHER (USE 181741)
(Superseded to 574053601)

$3.99

$

Usually ships in 3-10 days

0

39

$0.49

$

Usually ships in 3-10 days

0

40

RedMax 288075600

COVER COMPLETE

$4.82

$

Usually ships in 3-10 days

0

41

$

$

Not available

42

$2.34

$

Usually ships in 3-10 days

0

43

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax T206275130

LABEL, RECOIL

$1.12

$

Usually ships in 3-10 days

0

45

RedMax 288198611

SNOW PROTECTOR

$84.58

$

Usually ships in 3-10 days

0
