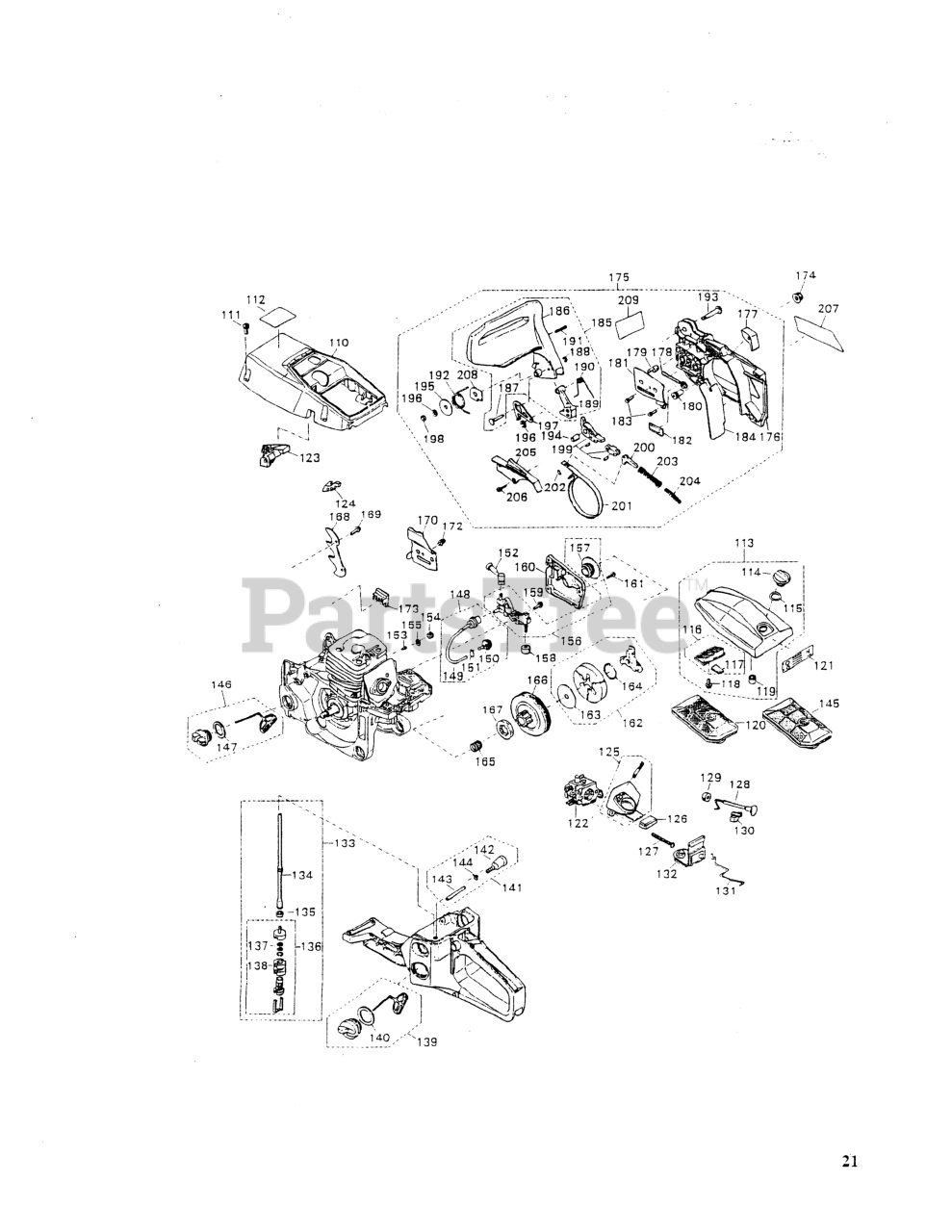

021 - POWER UNIT CONT`D Parts Diagram

  • Title
110

RedMax 281031115

COVER, CYLINDER (RPLS-31112)

$23.69

$

Usually ships in 3-10 days

0

111

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

112

$5.14

$

Usually ships in 3-10 days

0

113

RedMax 281083304

2810-83305
(Superseded to 588800601)

$

$

Not available

114

RedMax 335683322

2841-83320
(Superseded to 513737301)

$6.49

$

Usually ships in 3-10 days

0

115

RedMax 338883340

GASKET, KNOB
(Superseded to 514281501)

$

$

Not available

116

RedMax 281083500

CLEANER COMP
(Superseded to 513705501)

$7.49

$

Usually ships in 3-10 days

0

117

$0.41

$

Usually ships in 3-10 days

0

118

RedMax 160033130

SCREW
(Superseded to 516385401)

$

$

Not available

119

$0.88

$

Usually ships in 3-10 days

0

120

RedMax 281083101

CLEANER, AIR
(Superseded to 513704801)

$30.99

$

Usually ships in 3-10 days

0

121

$0.65

$

Usually ships in 3-10 days

0

122

RedMax 281081004

CARBURETOR-A (WT-296-1)
(Superseded to 516926101)

$

$

Not available

123

$2.42

$

Usually ships in 3-10 days

0

124

$2.42

$

Usually ships in 3-10 days

0

125

RedMax 288082102

MANIFOLD COMPLETE
(Superseded to 520760101)

$18.99

$

Usually ships in 3-10 days

0

126

RedMax 281082141

SUPPORTER

$1.89

$

Usually ships in 3-10 days

0

127

$1.93

$

Usually ships in 3-10 days

0

128

RedMax 288082410

ROD, CHOKE
(Superseded to 513976401)

$

$

Not available

129

$

$

Not available

130

RedMax 267082430

GUIDE
(Superseded to 516845501)

$

$

Not available

131

RedMax 288082511

ROD, THROTTLE
(Superseded to 520760801)

$

$

Not available

132

$0.89

$

Usually ships in 3-10 days

0

133

RedMax 281034303

848-C80-8534
(Superseded to 521580601)

$34.99

$

Usually ships in 3-10 days

0

134

RedMax 281034312

848-C80-85R3

$

$

Not available

135

$2.31

$

Usually ships in 3-10 days

0

136

RedMax 330285400

FILTER ASSY
(Superseded to 506742601)

$10.99

$

Usually ships in 3-10 days

0

137

$0.76

$

Usually ships in 3-10 days

0

138

$4.39

$

Usually ships in 3-10 days

0

139

RedMax 267034401

CAP ASSEMBLY
(Superseded to 579517901)

$9.49

$

Usually ships in 3-10 days

0

140

RedMax 267034430

GASKET
(Superseded to 579518001)

$4.99

$

Usually ships in 3-10 days

0

141

RedMax 267034500

BREATHER ASSEMBLY
(Superseded to 516811101)

$

$

Not available

142

RedMax 267034510

BREATHER (USE 2670-34500)

$

$

Not available

143

$0.57

$

Usually ships in 3-10 days

0

144

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

145

RedMax 281198501

CLEANER, AIR (FLOCKED)
(Superseded to 513706901)

$

$

Not available

146

RedMax 263031801

2841-31800

$

$

Not available

147

RedMax 263031820

GASKET
(Superseded to 516948501)

$4.99

$

Usually ships in 3-10 days

0

148

RedMax 281223100

OIL PIPE ASSEMBLY
(Superseded to 574006701)

$

$

Not available

149

$

$

Not available

150

RedMax 281223130

2812-23131
(Superseded to 281223131)

$

$

Not available

151

RedMax 126085460

CLIP (REPLACES 2841-31280)
(Superseded to 506707001)

$4.99

$

In Stock, only 4 left!

0

152

RedMax 267023210

PIPE, OIL OUTLET

$

$

Not available

153

RedMax 333023121

VALVE (RPLS -23120)
(Superseded to 514210801)

$4.99

$

In Stock, only 1 left!

0

154

RedMax 335026220

SEAL, BREATHER
(Superseded to 521052501)

$4.99

$

In Stock, only 1 left!

0

155

RedMax 335026230

CLIP
(Superseded to 521052601)

$2.49

$

Usually ships in 3-10 days

0

156

RedMax 288055100

848-C80-6711
(Superseded to 848C806711)

$66.67

$

Usually ships in 3-10 days

0

157

RedMax 267055120

GEAR
(Superseded to 521586501)

$87.99

$

Usually ships in 3-10 days

0

158

RedMax 267055220

SEAL
(Superseded to 574005601)

$3.49

$

Usually ships in 3-10 days

0

159

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

160

RedMax 267055610

COVER, PUMP
(Superseded to 513628901)

$

$

Not available

161

RedMax 267055410

SCREW
(Superseded to 574005701)

$3.99

$

In Stock, only 3 left!

0

162

RedMax 267051200

848-C80-5121
(Superseded to 521579301)

$78.99

$

In Stock, only 2 left!

0

163

RedMax 267051210

PLATE, THRUST
(Superseded to 516816801)

$4.99

$

In Stock, only 1 left!

0

164

RedMax 331751231

SPRING
(Superseded to 514197501)

$3.99

$

Usually ships in 3-10 days

0

165

RedMax 281051310

BEARING (RPLS 2670-51310)
(Superseded to 513701201)

$12.99

$

Usually ships in 3-10 days

0

166

RedMax 288051110

DRUM, CLUTCH (RPLS 2670- )
(Superseded to 513956101)

$34.99

$

In Stock, only 1 left!

0

167

RedMax 335051121

RIM SPROCKET, .325, 7-TOOTH

$

$

Not available

168

RedMax 267025310

SPIKE
(Superseded to 513618901)

$8.99

$

Usually ships in 3-10 days

0

169

RedMax 267014320

SCREW (REPLACES 2616-24320)
(Superseded to 578468301)

$3.99

$

Usually ships in 3-10 days

0

170

RedMax 281025421

PLATE (REPLACES 2670-25422)
(Superseded to 516908701)

$

$

Not available

172

$0.41

$

Usually ships in 3-10 days

0

173

RedMax 267025410

GUIDE, CHAIN
(Superseded to 513619001)

$

$

Not available

174

RedMax 335053410

NUT
(Superseded to 575960801)

$3.49

$

Usually ships in 3-10 days

0

175

RedMax 281254003

2812-54004
(Superseded to 521582001)

$182.99

$

Usually ships in 3-10 days

0

176

RedMax 267153114

848-C80-53A5
(Superseded to 521579501)

$30.99

$

Usually ships in 3-10 days

0

177

RedMax 288053150

STOPPER
(Superseded to 516998701)

$

$

Not available

178

RedMax 267153210

SCREW
(Superseded to 513637701)

$21.99

$

Usually ships in 3-10 days

0

179

RedMax 281053221

NUT
(Superseded to 513701401)

$9.99

$

Usually ships in 3-10 days

0

180

RedMax 267153230

GEAR
(Superseded to 513637901)

$10.99

$

Usually ships in 3-10 days

0

181

$

$

Not available

182

RedMax 267025410

GUIDE, CHAIN
(Superseded to 513619001)

$

$

Not available

183

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

184

RedMax 267153311

PROTECTOR
(Superseded to 513638301)

$

$

Not available

185

RedMax 281254100

GUARD COMP.

$

$

Not available

186

RedMax 281254110

2812-54111
(Superseded to 281254111)

$19.64

$

Usually ships in 3-10 days

0

187

RedMax 267054121

PIN, STOPPER

$1.71

$

Usually ships in 3-10 days

0

188

RedMax 030800030

RING, SNAP, M3
(Superseded to 510490001)

$

$

Not available

189

RedMax 288054130

WEIGHT, ACTION

$

$

Not available

190

RedMax 288054140

848-C8E-54D1
(Superseded to 848C8E54D1)

$

$

Not available

191

RedMax 288054150

PIN, SPRING

$0.37

$

Usually ships in 3-10 days

0

192

RedMax 267054210

SPRING, RETURN
(Superseded to 513626301)

$

$

Not available

193

RedMax 267054220

PIN
(Superseded to 513626401)

$3.99

$

Usually ships in 3-10 days

0

194

$0.26

$

Usually ships in 3-10 days

0

195

RedMax 323815230

WASHER
(Superseded to 520921901)

$4.99

$

In Stock, only 1 left!

0

196

RedMax 030800040

RING, SNAP, M4
(Superseded to 574054101)

$4.99

$

Usually ships in 3-10 days

0

197

RedMax 281054240

PLATE (RPLS 2670-54241)
(Superseded to 513701501)

$21.99

$

Usually ships in 3-10 days

0

198

$0.83

$

Usually ships in 3-10 days

0

199

RedMax 267054302

LEVER (REPLACES 2670-54301)

$4.90

$

Usually ships in 3-10 days

0

200

RedMax 267054410

ARM, SLIDE
(Superseded to 267054411)

$

$

Not available

201

RedMax 267054510

BAND, BRAKE

$5.23

$

Usually ships in 3-10 days

0

202

RedMax 335624140

PIN
(Superseded to 574013101)

$3.99

$

Usually ships in 3-10 days

0

203

RedMax 267054610

SPRING, BRAKE (RPLS. 50030121)

$2.16

$

Usually ships in 3-10 days

0

204

$2.67

$

Usually ships in 3-10 days

0

205

RedMax 267054621

COVER (REPLACES -54620)

$

$

Not available

206

RedMax 267054630

SCREW
(Superseded to 574005501)

$3.99

$

Usually ships in 3-10 days

0

207

RedMax 267253120

LABEL, CHAIN COVER

$1.47

$

Usually ships in 3-10 days

0

208

RedMax 267254250

2672-54251
(Superseded to 513639401)

$3.99

$

Usually ships in 3-10 days

0

209

$1.47

$

Usually ships in 3-10 days

0
