G 4318030 - Murray 43" Lawn Tractor (1997) Pre-painted Deck Assembly Parts Diagram

43" Lawn Tractor

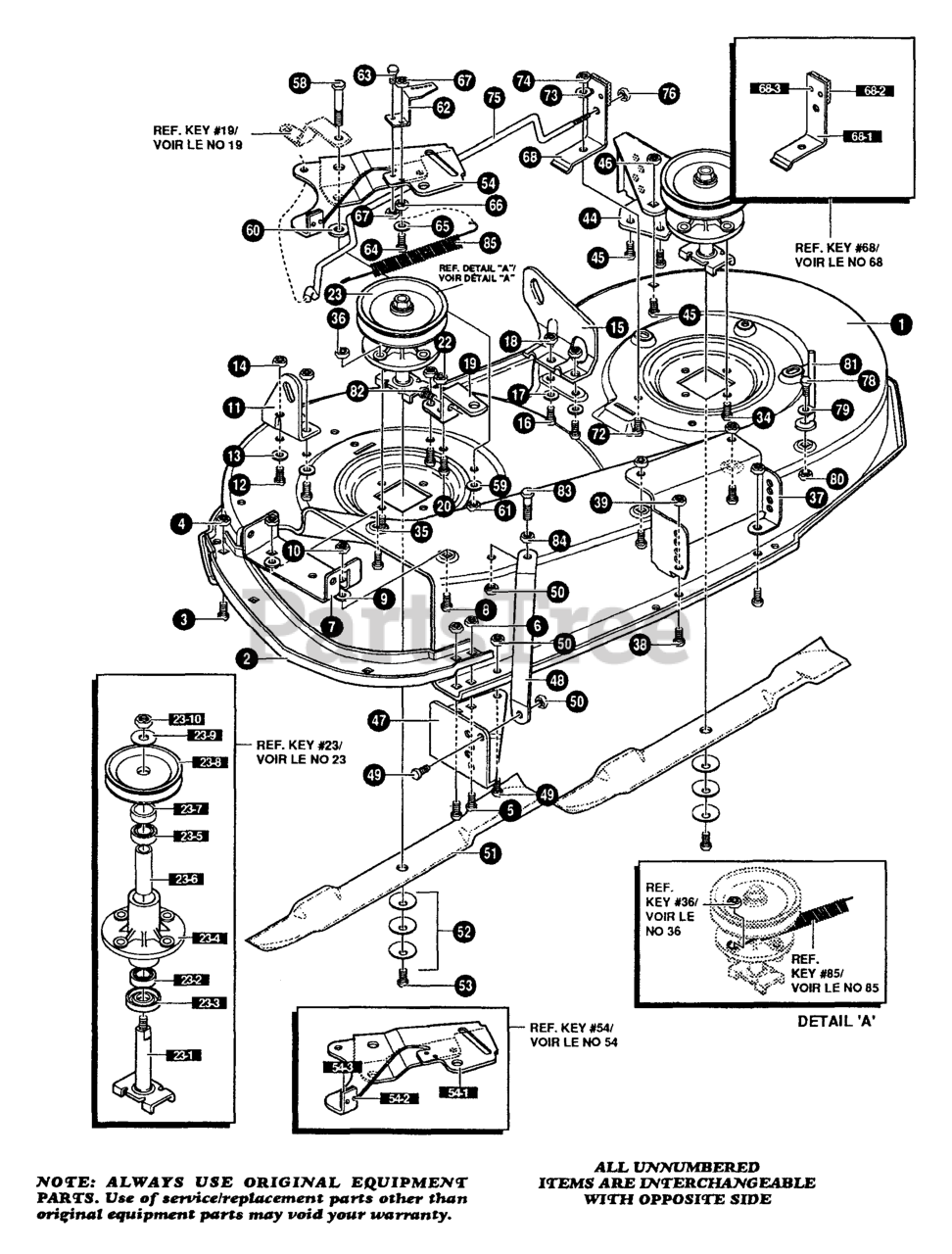

Pre-painted Deck Assembly Parts Diagram

  • Title
1

Murray 325116

43" DECK KIT

$

$

Currently unavailable

2

Murray 326480

TOE GUARD

$

$

Currently unavailable

3

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

4

$

$

Not available

5

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

6

$

$

Not available

7

Murray 317017MA

BRKT, CHUTE

$44.99

$

Usually ships in 2-12 days

0

8

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

9

Murray 120393

WASHER

$

$

Not available

10

$

$

Not available

11

Murray 313929MA

BRKT, RH, REAR

$56.99

$

Usually ships in 2-12 days

0

12

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

13

Murray 120393

WASHER

$

$

Not available

14

$

$

Not available

15

Murray 310667MA

BRKT, LH, REAR

$64.99

$

Usually ships in 2-12 days

0

16

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

17

Murray 120393

WASHER

$

$

Not available

18

$

$

Not available

19

Murray 326893

BRACE, IDLER

$

$

Currently unavailable

20

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

22

$

$

Currently unavailable

23

Murray 337734

QUILL ASSY

$

$

Currently unavailable

23-1

$62.99

$

Usually ships in 2-12 days

0

23-2

Murray 49562MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

23-3

Murray 50616MA

DUST SHIELD

$4.99

$

In Stock, only 2 left!

0

23-4

Murray 055547MA

QUILL CASTING

$8.99

$

In Stock, only 2 left!

0

23-5

Murray 49562MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

23-6

$11.99

$

Usually ships in 2-12 days

0

23-7

$15.99

$

Usually ships in 2-12 days

0

23-8

Murray 333132

PULLEY

$

$

Currently unavailable

23-9

$5.49

$

Usually ships in 2-12 days

0

23-10

$4.49

$

Usually ships in 2-12 days

0

34

Murray 35498

SCREW

$

$

Currently unavailable

35

$

$

Not available

36

$

$

Not available

37

Murray 317040MA

BRACKET FRONT

$55.99

$

Usually ships in 2-12 days

0

38

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

39

$

$

Not available

44

Murray 317041MA

BRKT, WHEEL, LH

$83.99

$

Usually ships in 2-12 days

0

45

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

46

$

$

Not available

47

Murray 322464

BRKT, WHEEL, RH

$

$

Currently unavailable

48

Murray 314282

BRKT, STABILIZER

$

$

Currently unavailable

49

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

50

$

$

Not available

51

Murray 330278MA

BLADE, 43"

$

$

Not available

52

Murray 2483

WASHER

$

$

Currently unavailable

53

$6.49

$

Usually ships in 2-12 days

0

54

Murray 320576

IDLER ARM ASSY

$

$

Currently unavailable

54-1

Murray 322116

ARM IDLER

$

$

Currently unavailable

54-2

Murray 41601

RIVET

$1.49

$

Usually ships in 2-12 days

0

54-3

Murray 306973MA

BRAKE PAD

$

$

Not available

58

$5.49

$

Usually ships in 2-12 days

0

59

Murray 996416

WASHER

$

$

Currently unavailable

60

$3.49

$

Usually ships in 2-12 days

0

$3.49

$

Usually ships in 2-12 days

0

62

Murray 326249

BRKT, EXT IDLER

$

$

Currently unavailable

63

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

64

$1.99

$

Usually ships in 2-12 days

0

65

$3.49

$

Usually ships in 2-12 days

0

66

$1.99

$

Usually ships in 2-12 days

0

67

$

$

Not available

68

Murray 321828

BLADE BRAKE ASSY

$

$

Not available

68-1

$

$

Currently unavailable

68-2

Murray 304119

BRAKE ARM

$

$

Currently unavailable

68-3

Murray 306973MA

BRAKE PAD

$

$

Not available

72

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

73

Murray 120393

WASHER

$

$

Not available

74

$

$

Not available

75

Murray 314079

ROD, BRAKE

$

$

Currently unavailable

76

$

$

Not available

78

$

$

Currently unavailable

79

Murray 120393

WASHER

$

$

Not available

80

$

$

Not available

81

Murray 325965MA

BELT GUIDE

$14.99

$

In Stock, only 1 left!

0

82

$

$

Not available

83

$1.99

$

Usually ships in 2-12 days

0

84

$1.99

$

Usually ships in 2-12 days

0

85

Murray 35410

SPRING

$

$

Currently unavailable
