G 4318030 - Murray 43" Lawn Tractor (1997) Engine & Control Assembly Parts Diagram

43" Lawn Tractor

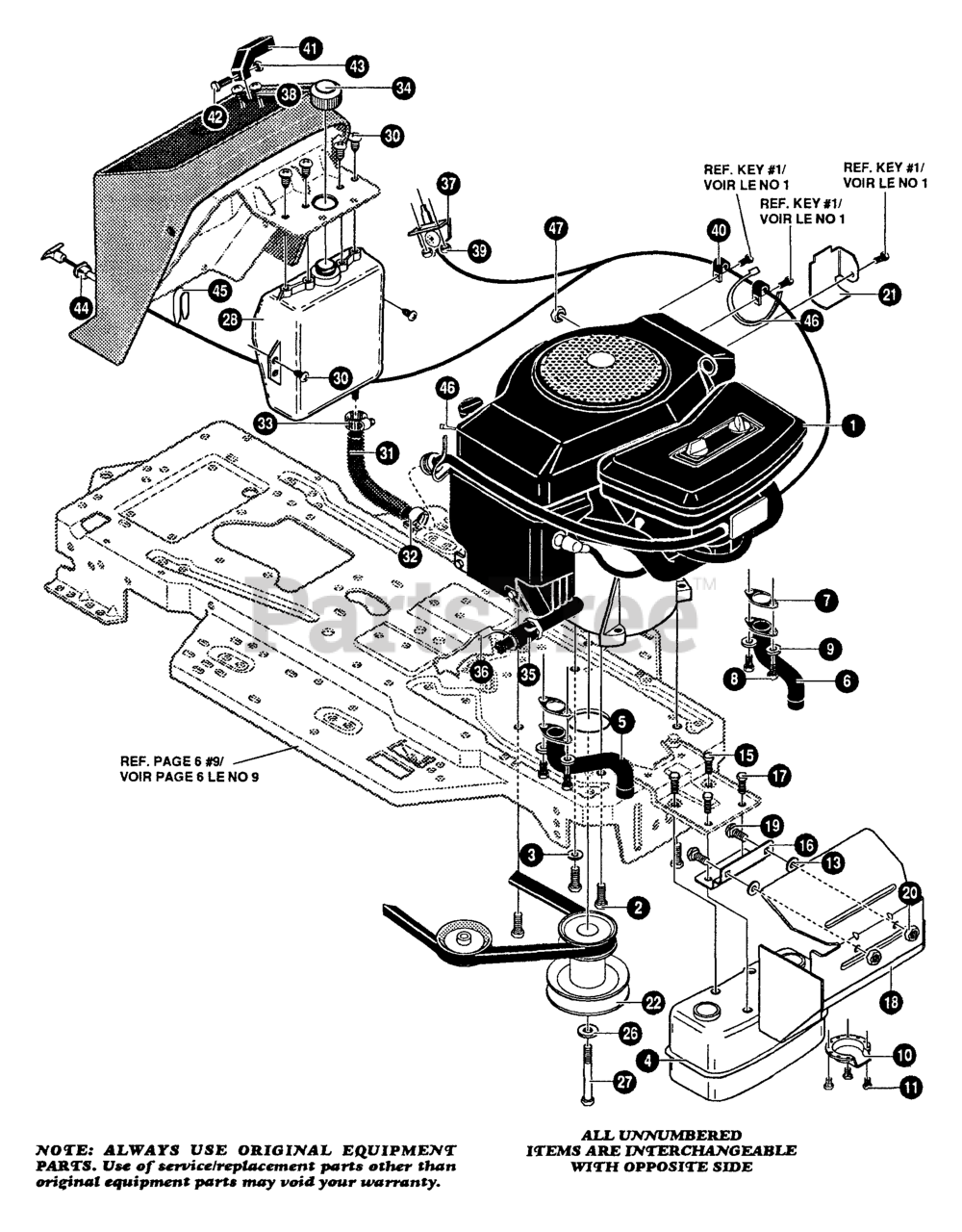

Engine & Control Assembly Parts Diagram

  • Title

1

ENGINE *

$

$

Not available

2

Murray 50947

SCREW

$

$

Currently unavailable

3

Murray 138489MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

4

Murray 305550MA

MUFFLER

$82.99

$

Usually ships in 2-12 days

0

5

Murray 305552

EX. TUBE, RH

$

$

Currently unavailable

6

Murray 305551

EX. TUBE, LH

$28.99

$

Usually ships in 2-12 days

0

7

Murray 056640

GASKET, MUFFLER

$

$

Currently unavailable

8

Murray 180020

SCREW

$

$

Not available

9

Murray 120380

WASHER
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

10

Murray 56472MA

DEFLECTOR
(Superseded to 795036)

$8.49

$

In Stock, only 1 left!

0

11

Murray 35287

SCREW

$

$

Currently unavailable

13

Murray 309436MA

PUSHNUT

$3.99

$

Usually ships in 2-12 days

0

15

Murray 300314

SCREW

$1.49

$

Usually ships in 2-12 days

0

16

Murray 9796

BRKT, TRANSAXLE

$

$

Currently unavailable

17

Murray 44811MA

SCREW

$5.99

$

Usually ships in 2-12 days

0

18

Murray 327938-853

HEAT SHIELD

$

$

Currently unavailable

19

Murray 180077MA

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

20

Murray 55273MA

NUT

$3.99

$

Usually ships in 2-12 days

0

21

Murray 56470-853

DEFLECTOR

$4.99

$

Usually ships in 2-12 days

0

22

Murray 328029

PULLEY, ENGINE

$

$

Currently unavailable

26

Murray 120383

WASHER

$

$

Not available

27

Murray 428644MA

SCREW

$

$

Not available

28

Murray 314992MA

TANK, FUEL

$56.99

$

Usually ships in 2-12 days

0

30

Murray 300303MA

SCREW

$4.49

$

In Stock, only 1 left!

0

31

Murray 47452

TUBING, GAS LINE
(Superseded to 5047452)

$410.99

$

Usually ships in 2-12 days

0

32

Murray 47345

CLAMP, HOSE
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

33

Murray 47345

CLAMP, HOSE
(Superseded to 47345MA)

$9.49

$

Usually ships in 2-12 days

0

34

Murray 46704MA

CAP, GAS

$25.99

$

Usually ships in 2-12 days

0

35

Murray 325547MA

OIL DRAIN ASSY

$

$

Not available

36

Murray 327422

CAP, OIL DRAIN

$

$

Not available

37

Murray 309092MA

THROTTLE, CONTROL

$34.99

$

Usually ships in 2-12 days

0

38

Murray 320553

SCREW

$1.99

$

Usually ships in 2-12 days

0

39

Murray 308459MA

NUT

$3.49

$

Usually ships in 2-12 days

0

40

Murray 57569

RETAINER

$

$

Not available

41

Murray 300508MA

KNOB, THROTTLE

$5.99

$

Usually ships in 2-12 days

0

42

Murray 159585

SCREW

$

$

Currently unavailable

43

Murray 120622

NUT

$1.99

$

Usually ships in 2-12 days

0

44

Murray 327986MA

CHOKE, CONTROL

$17.99

$

Usually ships in 2-12 days

0

45

Murray 314522

CLIP

$1.99

$

Usually ships in 2-12 days

0

46

Murray 57444

TIE, CABLE

$

$

Not available

47

Murray 124918

NUT

$

$

Currently unavailable
