G 4315160 - Murray 43" Lawn Tractor (1997) Rear Chassis & Hood Assembly Parts Diagram

43" Lawn Tractor

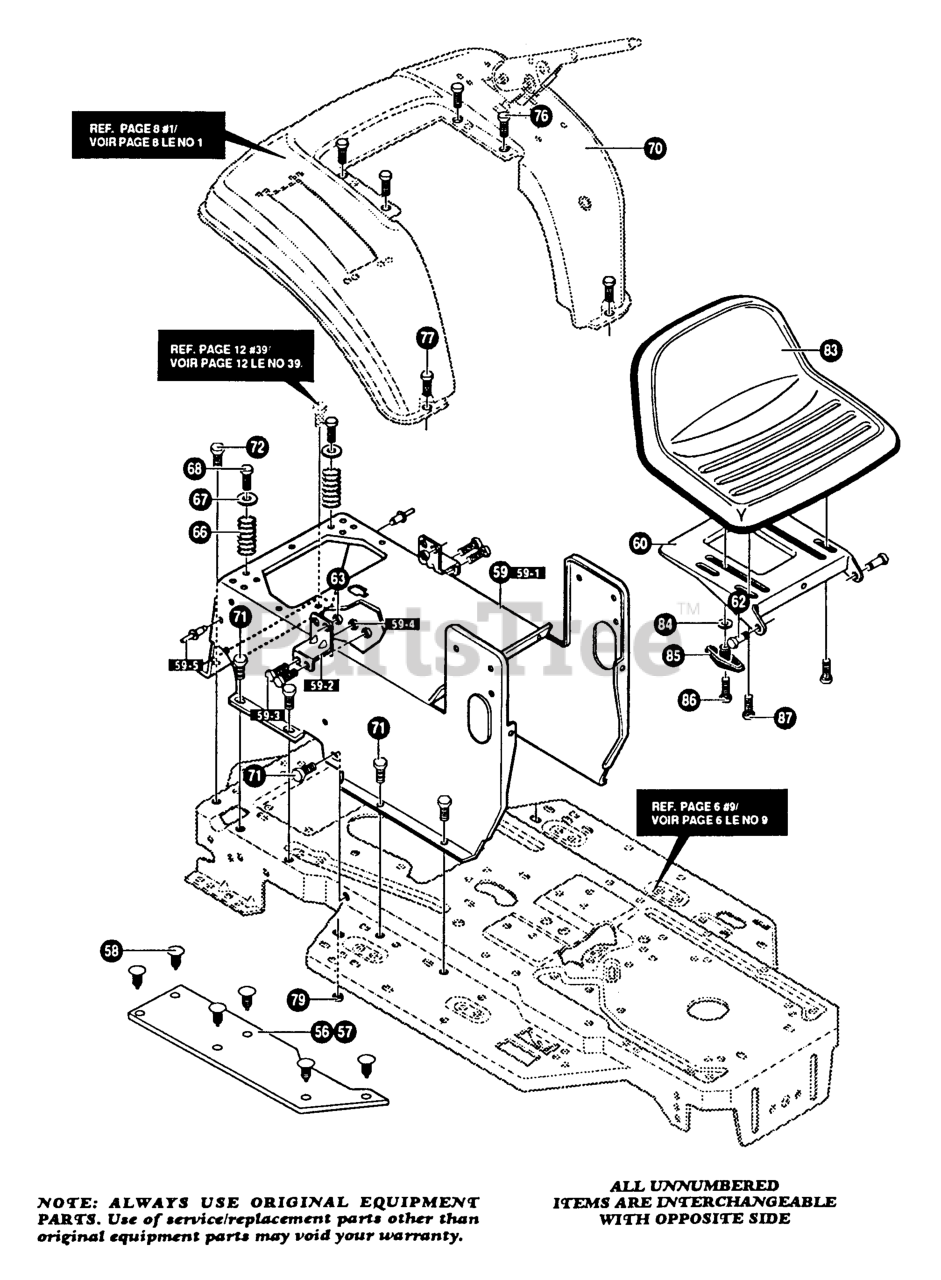

Rear Chassis & Hood Assembly Parts Diagram

  • Title

56

Murray 310005

FOOT PAD, LH

$23.99

$

Usually ships in 2-12 days

0

57

Murray 310006

FOOT PAD, RH

$

$

Currently unavailable

58

Murray 309235MA

FASTENER

$3.99

$

Usually ships in 2-12 days

0

59

ASSEMBLY, CONSOLE

Note: (Order individual parts - Assembly not available)

$

$

Not available

59-1

Murray 327575-854

CONSOLE

$

$

Currently unavailable

59-2

Murray 310660

BRACKET

$

$

Currently unavailable

59-3

Murray 48901

SCREW
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

59-4

Murray 1498

NUT

$

$

Not available

59-5

Murray 46763

RIVET
(Superseded to 5046763)

$116.99

$

Usually ships in 2-12 days

0

60

Murray 331535-853

PLATE, SEAT

$13.99

$

Usually ships in 2-12 days

0

62

Murray 20507

BOLT

$

$

Not available

63

Murray 1498

NUT

$

$

Not available

66

Murray 337427

SPRING, SEAT

$5.49

$

Usually ships in 2-12 days

0

67

Murray 120392

WASHER

$

$

Not available

68

Murray 995346

SCREW

$1.49

$

Usually ships in 2-12 days

0

70

ASSEMBLY, FENDER

Note: (Reference Only)

$

$

Not available

71

Murray 995346

SCREW

$1.49

$

Usually ships in 2-12 days

0

71

Murray 995346

SCREW

$1.49

$

Usually ships in 2-12 days

0

72

Murray 35497

SCREW

$

$

Currently unavailable

76

Murray 995346

SCREW

$1.49

$

Usually ships in 2-12 days

0

77

Murray 126358

BOLT

$

$

Not available

79

Murray 55273MA

NUT

$3.99

$

Usually ships in 2-12 days

0

83

Murray 331527

SEAT

$

$

Currently unavailable

84

Murray 120393

WASHER

$

$

Not available

85

Murray 643958

HANDLE

$1.49

$

Usually ships in 2-12 days

0

86

Murray 180079

SCREW

$

$

Currently unavailable

87

Murray 331637

BOLT

$1.99

$

Usually ships in 2-12 days

0
