G 4315140 - Murray 43" Lawn Tractor (1997) Rear Chassis Assembly Parts Diagram

43" Lawn Tractor

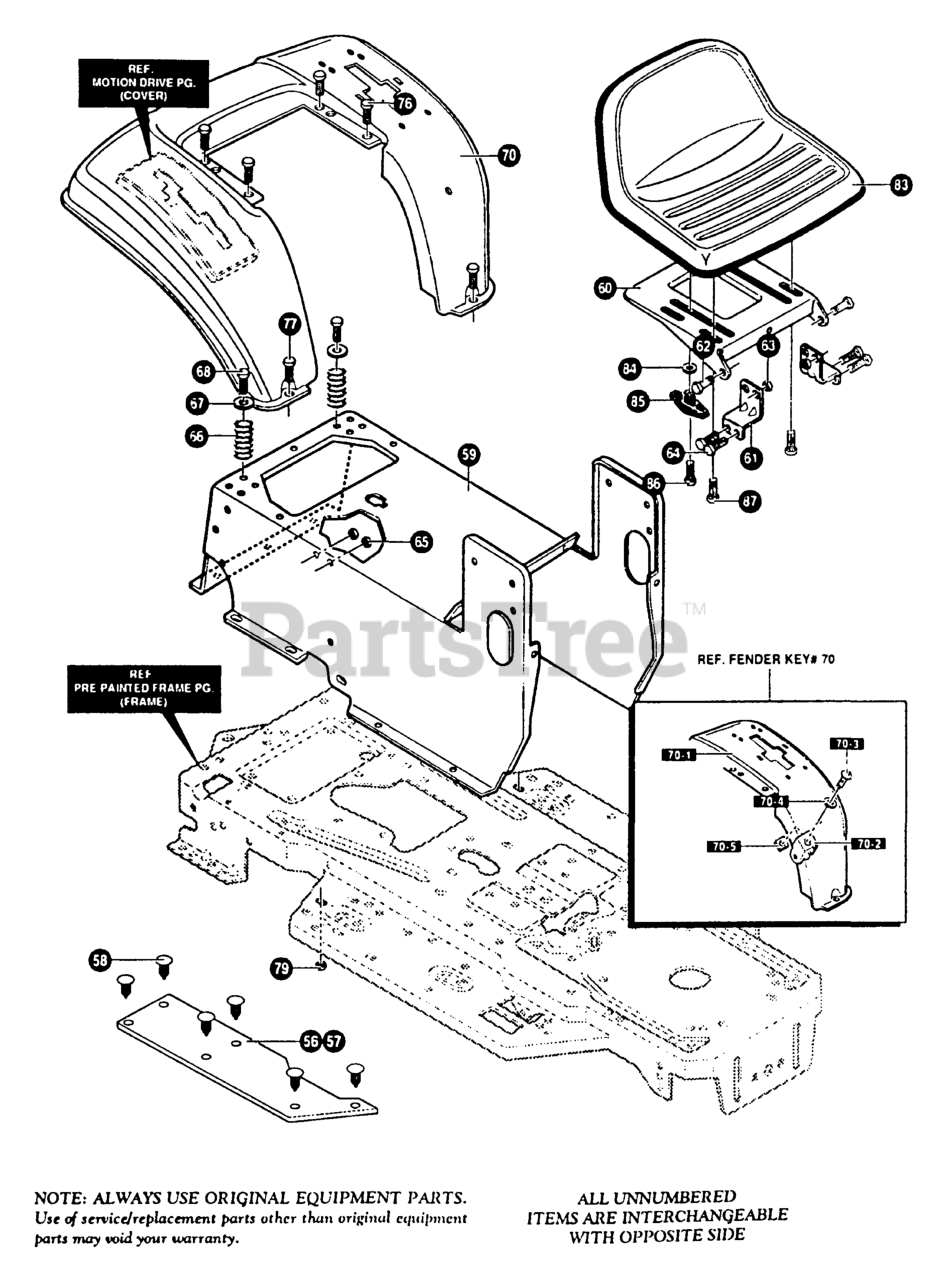

Rear Chassis Assembly Parts Diagram

  • Title

56

Murray 310005

FOOT PAD, LH

$23.99

$

Usually ships in 2-12 days

0

57

Murray 310006

FOOT PAD, RH

$

$

Currently unavailable

58

Murray 309235MA

FASTENER, RATCHET BLACK

$3.99

$

Usually ships in 2-12 days

0

59

Murray 327575-853

CONSOLE

$

$

Currently unavailable

60

Murray 331535-853

PLATE, SEAT

$13.99

$

Usually ships in 2-12 days

0

61

Murray 310660-853

BRACKET, SEAT SUPPORT

$

$

Not available

62

Murray 20507

BOLT, .437 X .156

$

$

Not available

63

Murray 1498

NUT, 5/16-18

$

$

Not available

64

Murray 48901

SCREW, 5/16-18 x 0.63
(Superseded to 48901MA)

$3.99

$

Usually ships in 2-12 days

0

65

Murray 1498

NET, 5/16-18

$

$

Not available

66

Murray 337427

SPRING, SEAT

$5.49

$

Usually ships in 2-12 days

0

67

Murray 120392

WASHER, FLAT .281 X .63 X .065

$

$

Not available

68

Murray 995346

SCREW, 1/4-20 X .50

$1.49

$

Usually ships in 2-12 days

0

70

ASSEMBLY, FENDER

Note: (Order individual parts - Assembly not available)

$

$

Not available

70-1

Murray 327471-824

FENDER

$

$

Currently unavailable

70-2

Murray 9239

CLEVIS

$

$

Currently unavailable

70-3

Murray 439455

SCREW, 5/16-18 x 0.56

$1.49

$

Usually ships in 2-12 days

0

70-4

Murray 301551

WASHER, .344 ID X 1.50 D X .09

$1.49

$

Usually ships in 2-12 days

0

70-5

Murray 120373

NUT, 5/16-18 SQ

$1.99

$

Usually ships in 2-12 days

0

76

Murray 995346

SCREW, 1/4-20 X .50

$1.49

$

Usually ships in 2-12 days

0

77

Murray 126358

BOLT, 5/16-18 X 1.00

$

$

Not available

79

Murray 55273MA

NUT, 5/16-18

$3.99

$

Usually ships in 2-12 days

0

83

Murray 331525

SEAT

$

$

Currently unavailable

84

Murray 120393

WASHER, FLAT .344 X .69 X .065

$

$

Not available

85

Murray 643958

HANDLE, WING NET

$1.49

$

Usually ships in 2-12 days

0

86

Murray 180079

SCREW, 5/16-18 x 1.00

$

$

Currently unavailable

87

Murray 331637

BOLT, .500 X .10

$1.99

$

Usually ships in 2-12 days

0
